Conferencing Kit with 1080P FHD PTZ Camera Speakerphone and 2 Additional Mics
and engineering support
Overview
Live streaming your meetings with a complete solution that’s as effective as it is easy to set up. With BZBGEAR’s BG-AIOE-KIT live conferencing kit, you can integrate high-quality video and crystal-clear audio to capture every moment.

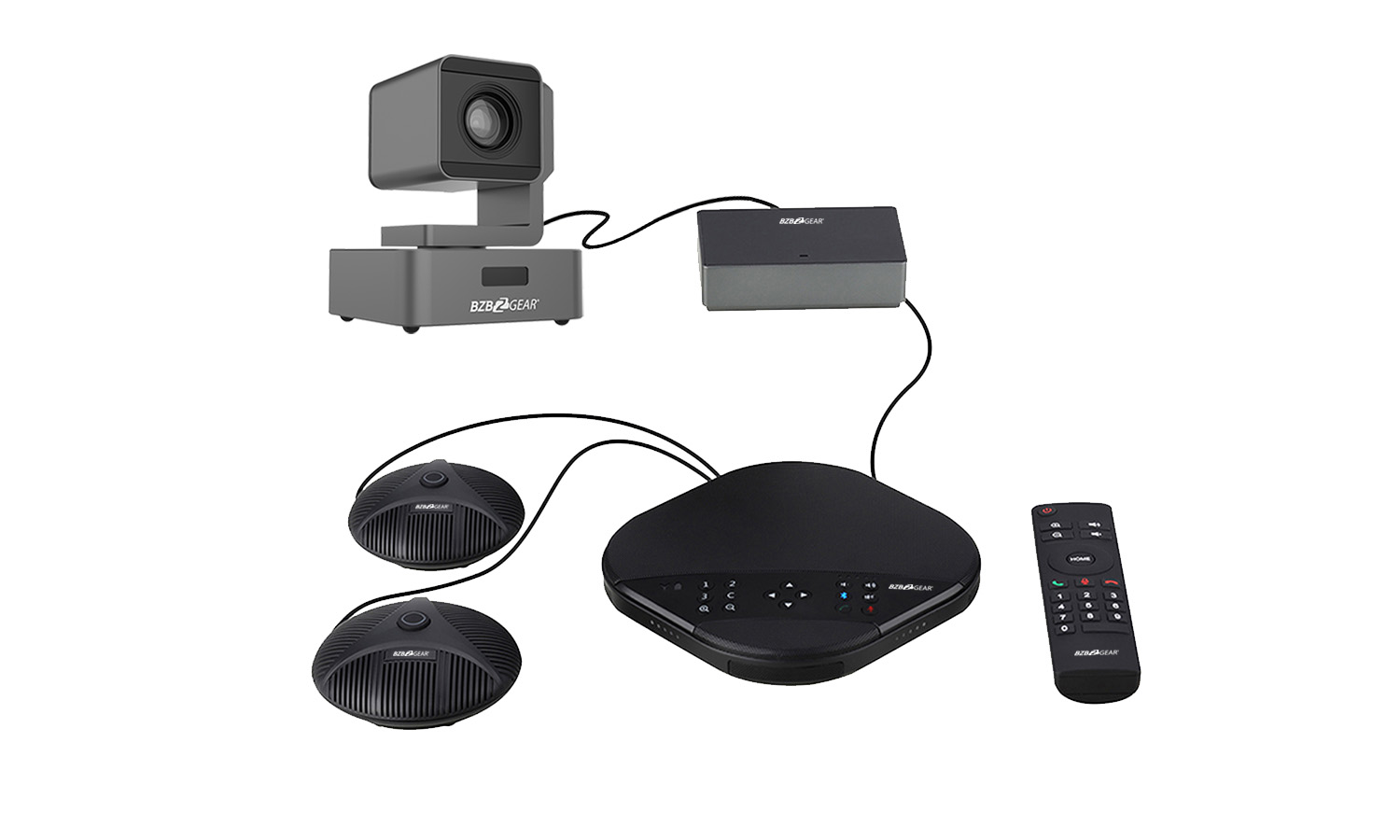

The kit brings together a PTZ camera, speakerphone, and two mics to ensure that all parts of your meeting are effectively captured for live conferencing as well as later review. The PTZ camera’s 1/2.8” HD CMOS sensor can capture resolutions up to 1080p@30Hz. To record sound, the speakerphone utilizes an advanced microphone array to capture audio in 360 degrees. With the extension microphones you can extend recording range up to 10 meters, ensuring no one in your meetings will be left out.
With plug and play connectivity and no drivers to install, the BG-AIOE-KIT’s installation is very simple. With high quality features and easy-to-use equipment, this video conferencing kit has incredible value for businesses looking to hybridize their meetings.
PTZ Camera

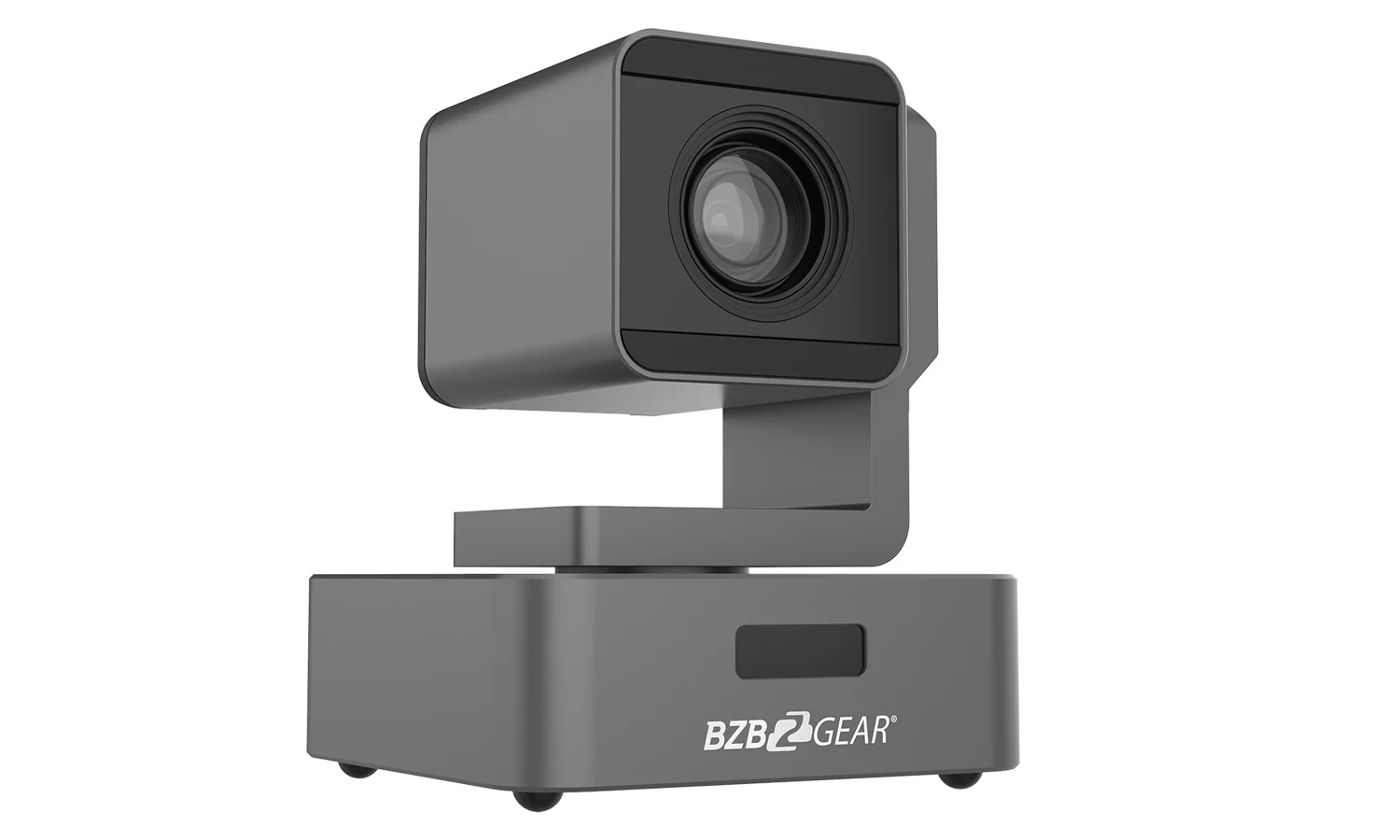

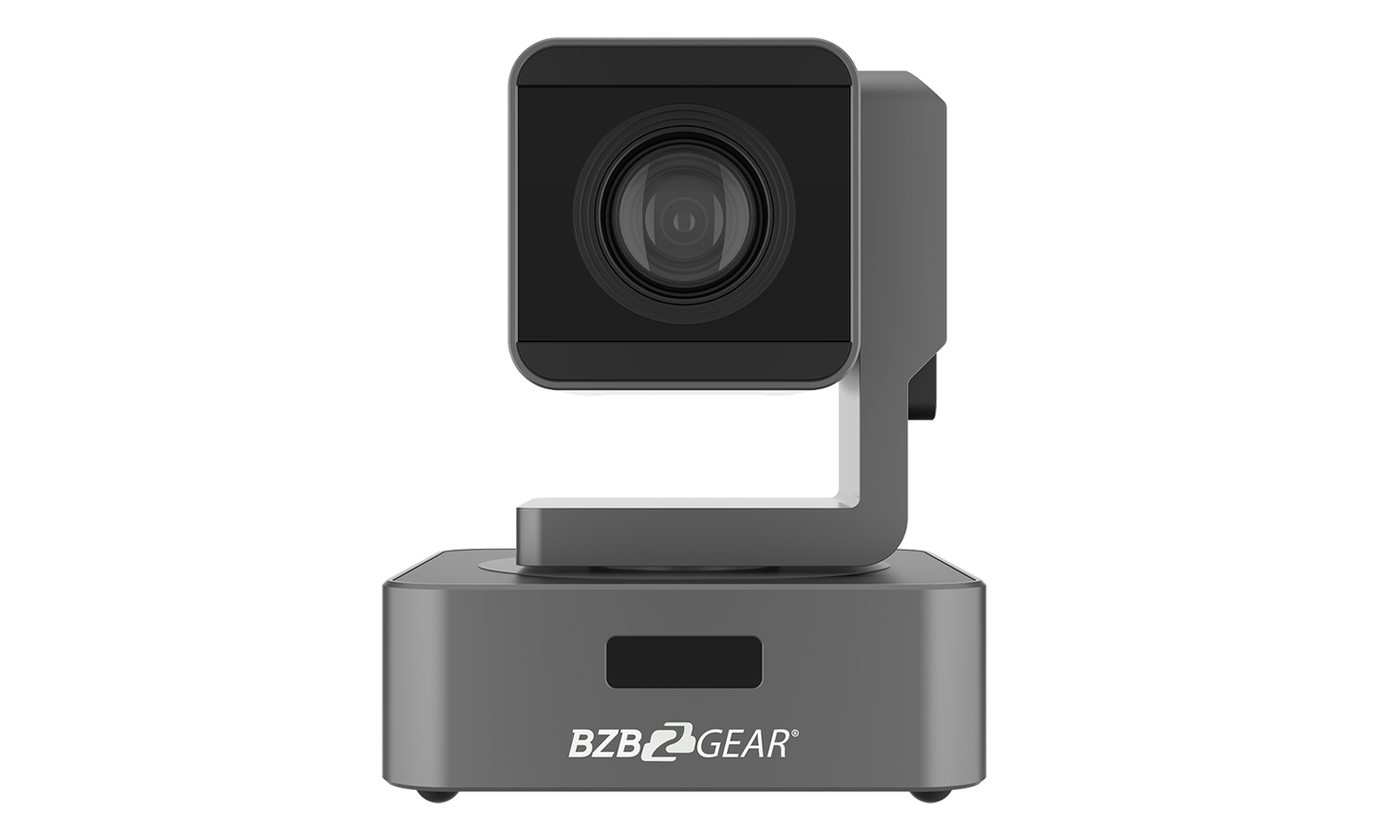

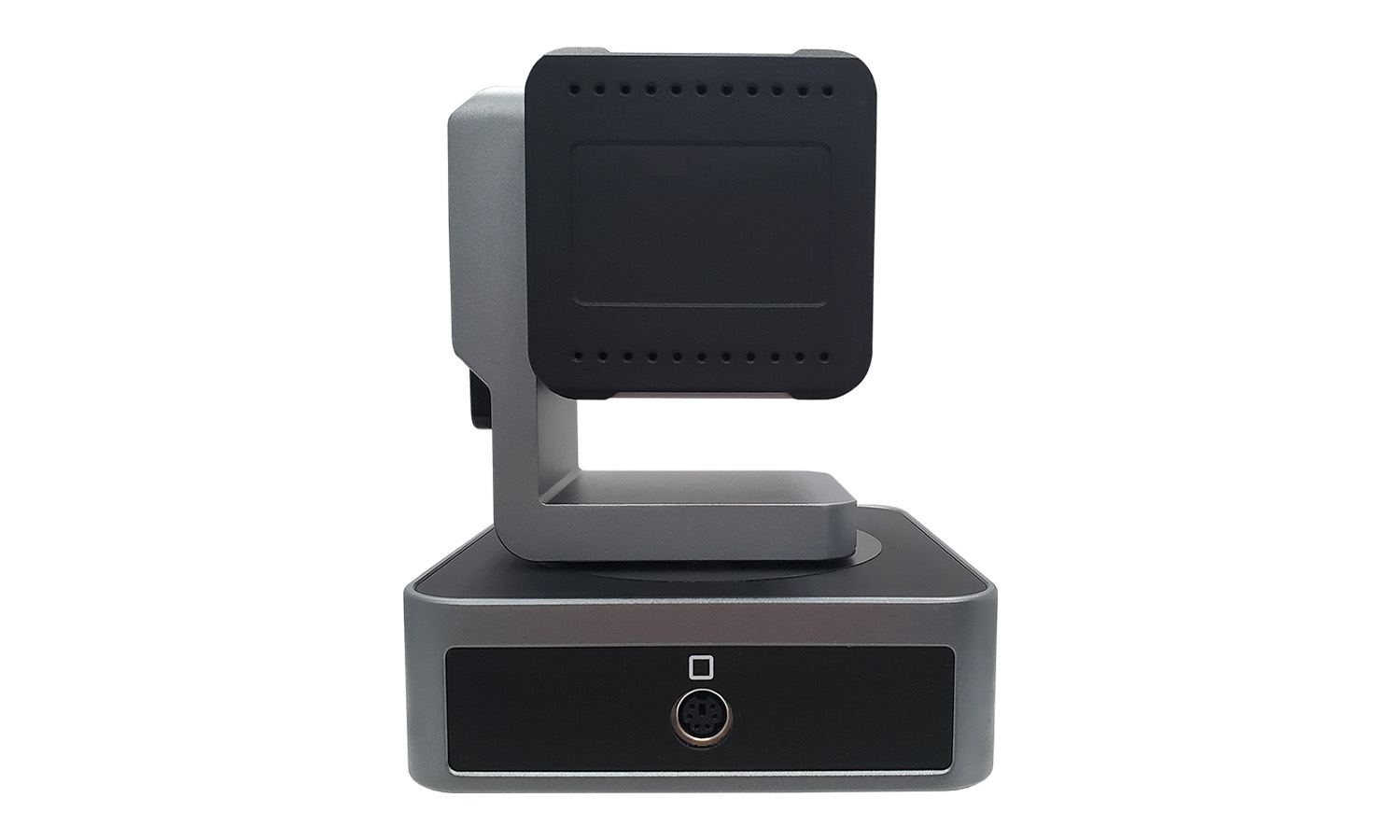

The BG-AIOE-KIT’s PTZ camera features a 1/2.8” HD CMOS sensor that can record in 1080p@30Hz resolution, ensuring that all details of your meeting are captured. In addition, the camera has a 10x optical zoom lens to ensure high quality close-ups can be achieved. The camera also supports a wide 83.7° field of view with no distortion. The camera can be easily controlled and configured with the included handheld remote control.
Speakerphone and Additional Mics

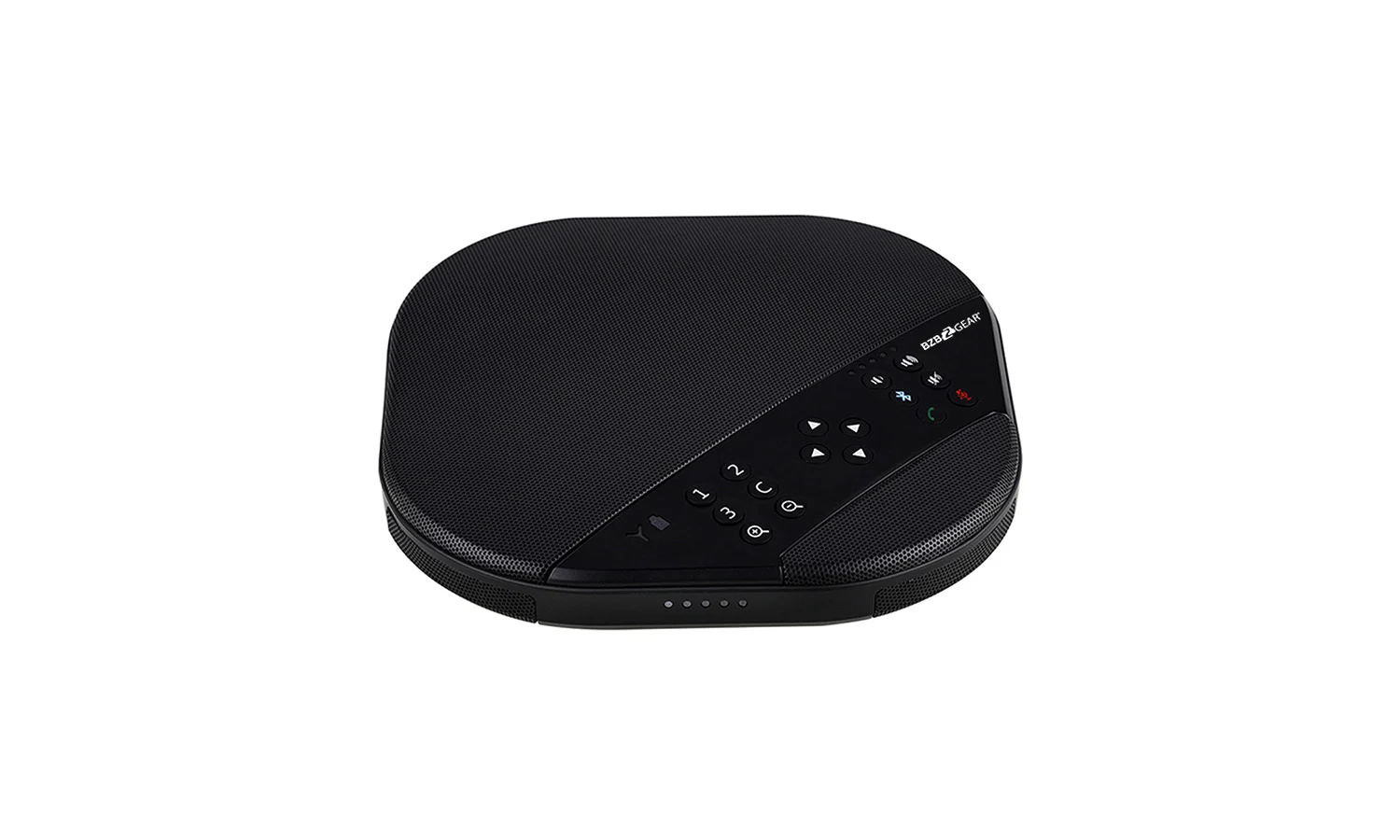

The speakerphone’s advanced microphone array capture discussions from every direction with 360 degrees of coverage. It also is equipped with bluetooth connectivity to allow attendees to pair mobile devices for higher quality calls. With the extension microphones, audio recording can be extended up to a 10 meter radius.

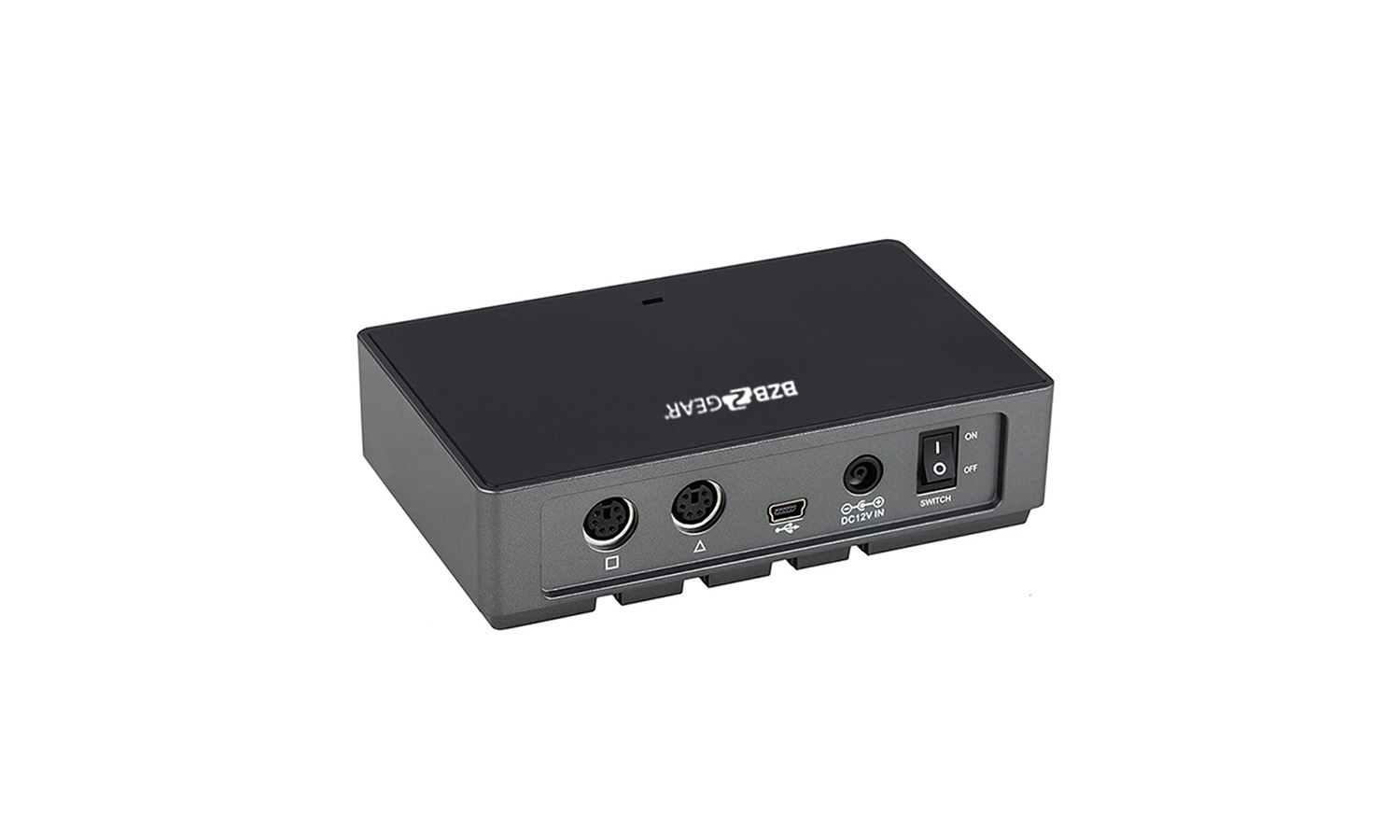

Hub

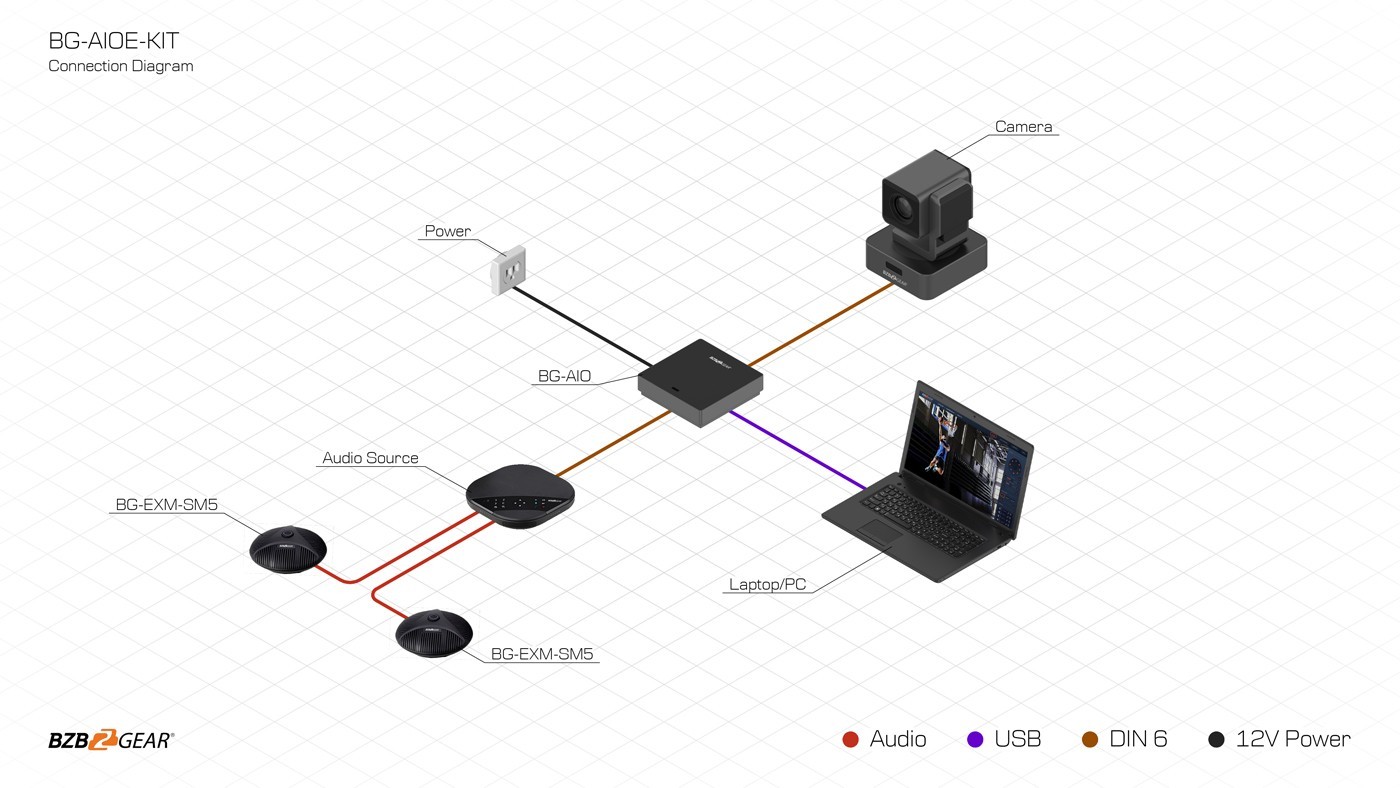

At the heart of the BG-AIOE-KIT is the control hub. Its interface and connections include two mini DIN6, a power interface and power switch, as well as a mini-USB interface. The plug and play connectivity allows operators to connect the kit to their PC or Mac via USB 2.0. No additional drivers are required for download and install.
Features
- Use with the conferencing app of your choice
- 2D/3D dynamic noise reduction
- Wide 83.7° field of view
- High-end speakerphone with extra mics
- Control camera and presets with IR remote
- Signal to noise ratio of >55dB
- Launch video meetings with plug & play USB
- Compatible with Mac and PC
- Complete A/V conferencing package
Tech Specifications
| Sensor | 1/2.8" high quality HD CMOS sensor |
| Effective Pixels | 2.07 Megapixel, 16:9 |
| Video Format | 1920X1080p30Hz/25/20/15/10/5, 1024X768/1280X720/ |
| Optical zoom lens | 10x optical zoom, f=3.1~15.5mm |
| View angle | 20°(tele) 83.7°(wide) |
| Aperture value | F1.8 - F2.8 |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D/3D DNR |
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto/Manual/One Push |
| Aperture/Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/ Dynamic level adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Rotation angle | Pan: -125°~+125°, Tilt: -30°~+30° |
| Control speed | Pan: 0.1 ~65°/sec, Tilt: 0.1~35°/sec |
| Dimensions | 5.97in x 5.17in x 6.08in / 151.64mm x 131.25mm x 154.5mm (LxWxH) |
| Working Environment | Indoor Only |
Speakerphone
| Voice technical parameters | Acoustic Echo cancellation (AEC): >65dB Echo length cancellation: ≥400ms Bidirectional noise compression (NC): <25dB Automatic gain control (AGC) |
| Audio parameters | Microphone frequency response: 100Hz-22KHz Speaker frequency response: 100Hz-22KHz Speaker volume: 95dB at the most Microphone sound-pickup diameter: 6, 360 degrees full range |
| Bluetooth | Bluetooth devices available |
| IR Reception | Angle: 360° Distance: 10m IR Transparent transmission available |
| Expansion Mic (optional) | 2 external microphones optional for connection makes the sound-pickup diameter up to 10 meters |
| Dimensions | 7.87in x 7.87in x 2.05in / 200mm x 200mm x 52mm (LxWxH) |
Hub
| Interface | Mini DIN6 x 2, Power interface x 1, Power switch x 1, Mini USB interface x 1 |
| Power supply | EC3800 plug (DC12V), Adapter input AC110V-AC220V, output DC12V/1.5A |
| Connection Cable | Mini DIN6 data line x 2, Length: 5m (10m/15m for options) |
| USB cable | USB 2.0 cable |
| Compatibility | Support Windows, Android, iOS and Linux, Drive-free automatic recognition of cameras, microphones and speakers. Compatible with Zoom, Lynch, Vidyo, Skype for business and etc. |
| Dimensions | 3.94in x 2.44in x 1.06in / 100mm x 62mm x 27mm (LxWxH) |
Resources
PACKAGE CONTENTS
- Speakerphone
- HD PTZ Camera
- Hub

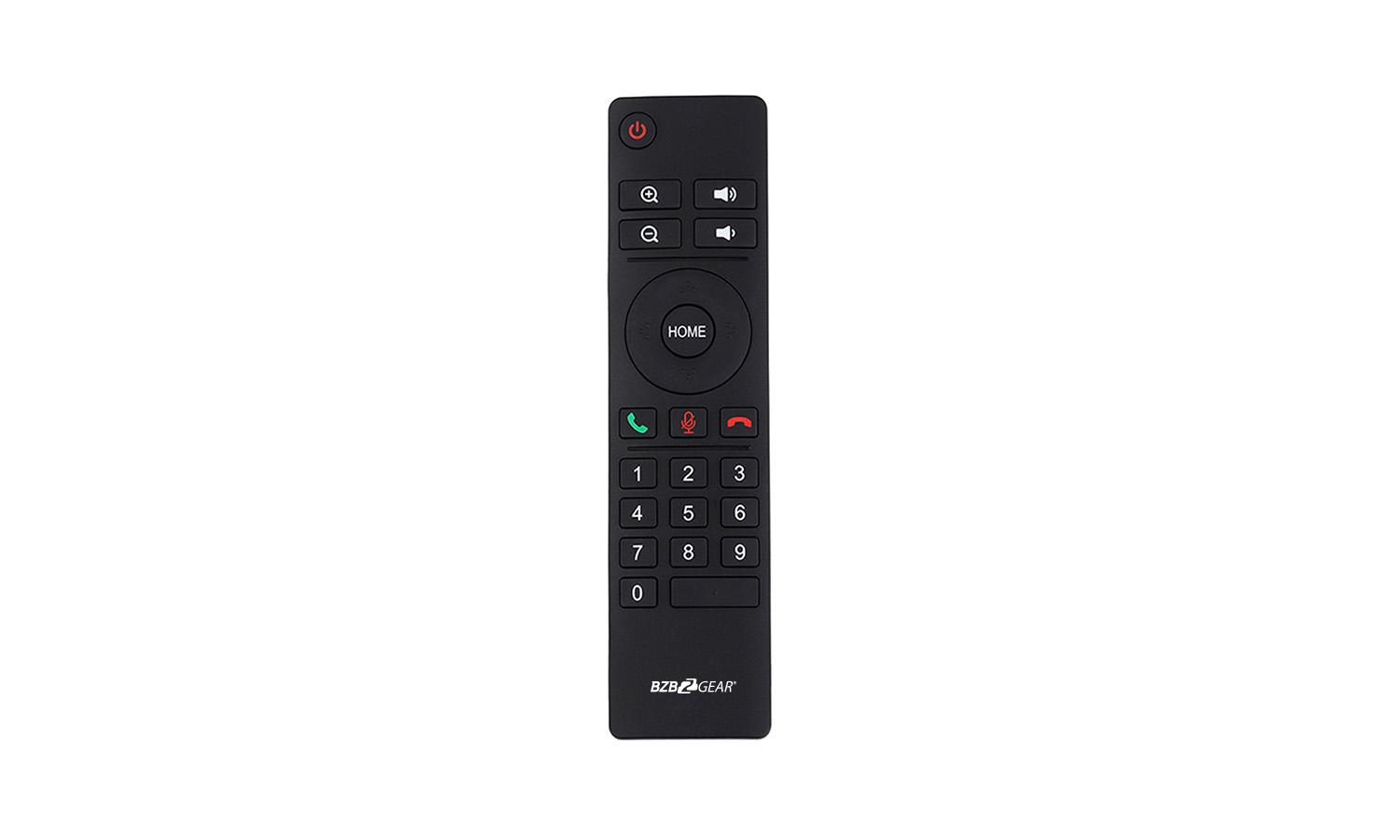

- Remote Control
- 5.5m DIN6 Cable x 2 pcs
- 6.3m USB Cable x 1 pcs
- Power Supply
