Conferencing Kit with 1080P FHD PTZ Camera and Speakerphone

EOL
BG-AIO-KIT-1 BG-VPTZ-1 BG-VPTZ-2 BG-VPTZ-4 BG-VPTZ-Back BG-VPTZ-5 BG-VPTZ-6 BG-AIOE-5 BG-AIOE-6 BG-AIOE-7
BG-AIO-KIT-1
BG-VPTZ-1
BG-VPTZ-2
BG-VPTZ-4
BG-VPTZ-Back
BG-VPTZ-5
BG-VPTZ-6
BG-AIOE-5
BG-AIOE-6
BG-AIOE-7
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
1 year warranty
1 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Resources Package contents Trade In

Overview

Kick-off your next video conference the right way with the BG-AIO-KIT. By integrating high-quality video and crystal-clear audio, this kit makes it easy to include everyone in the meeting.

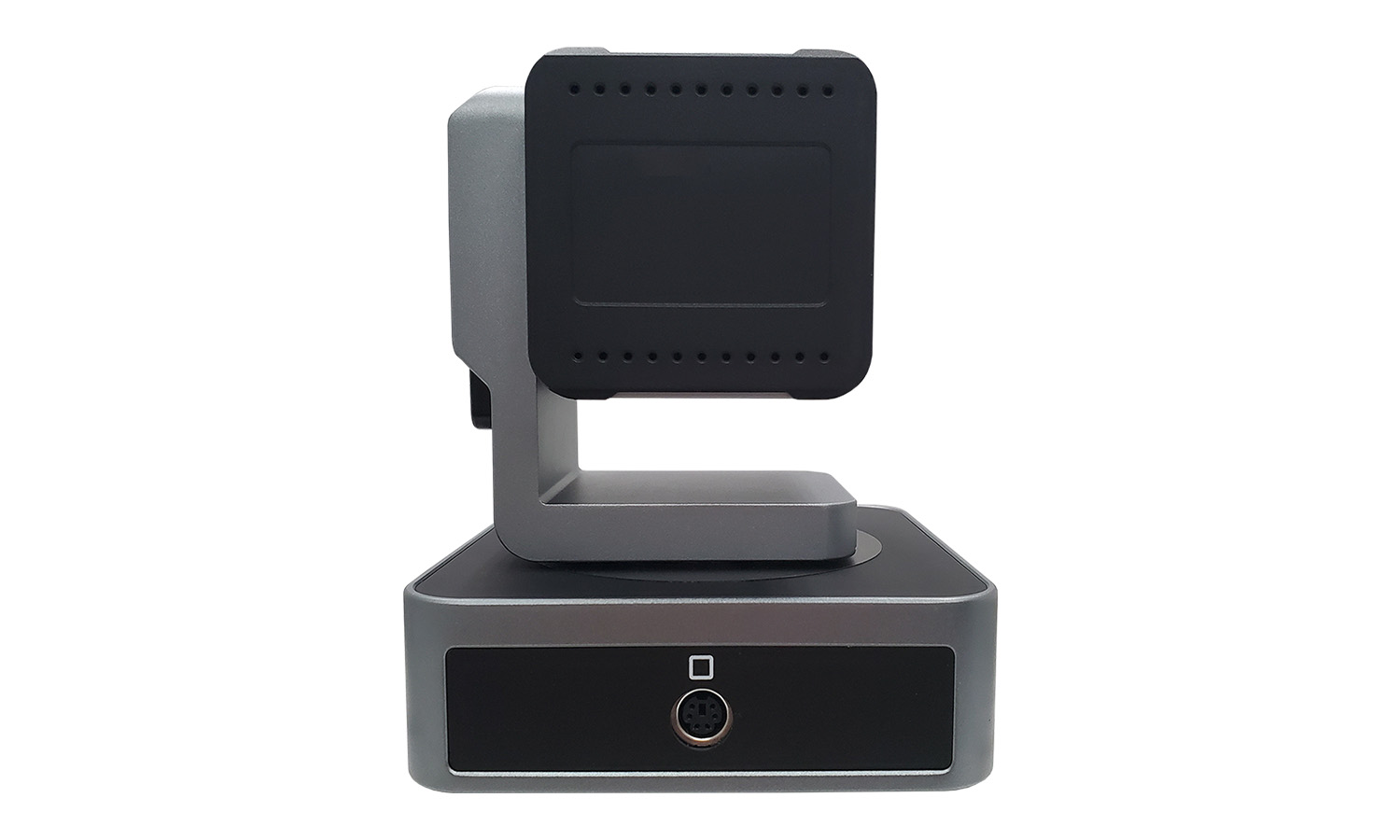

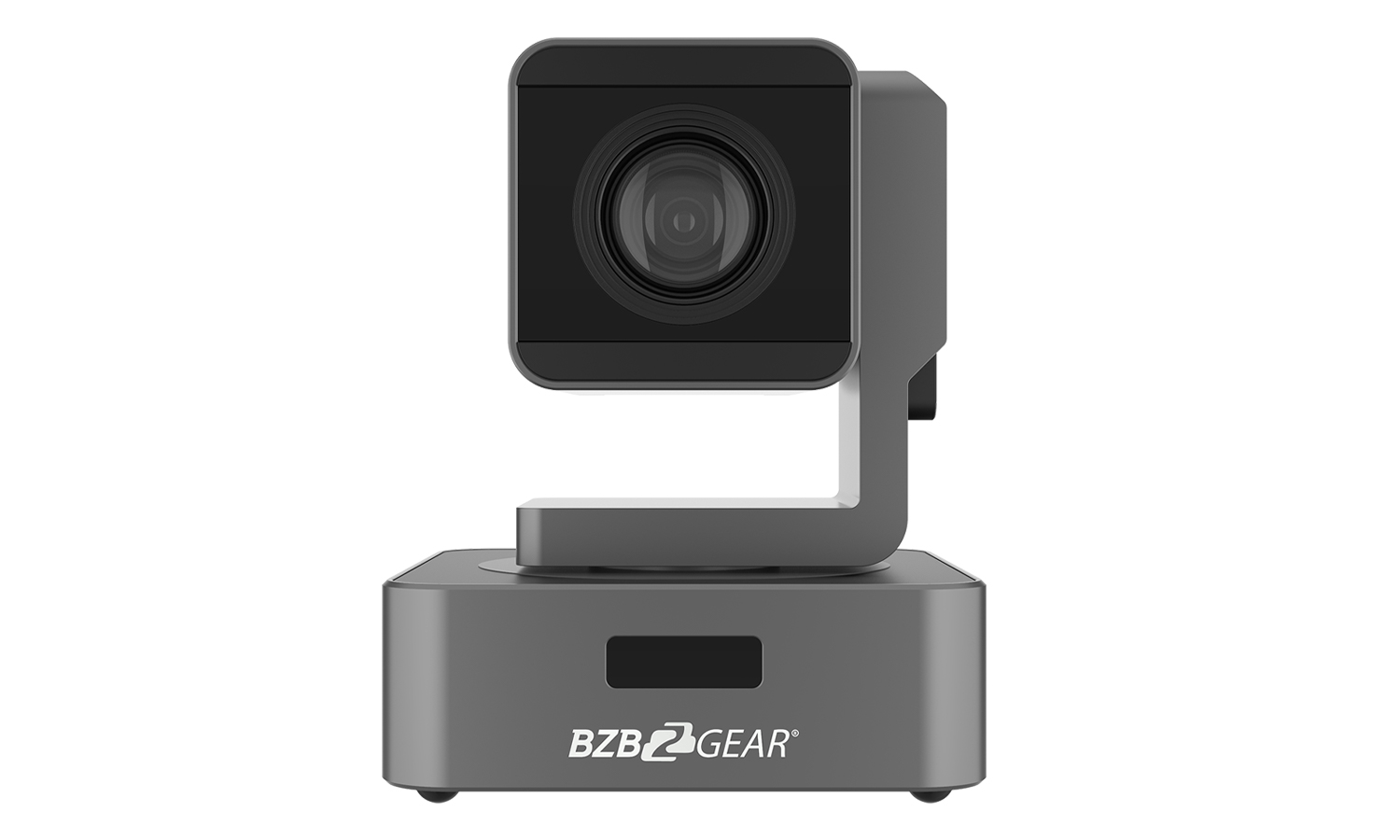

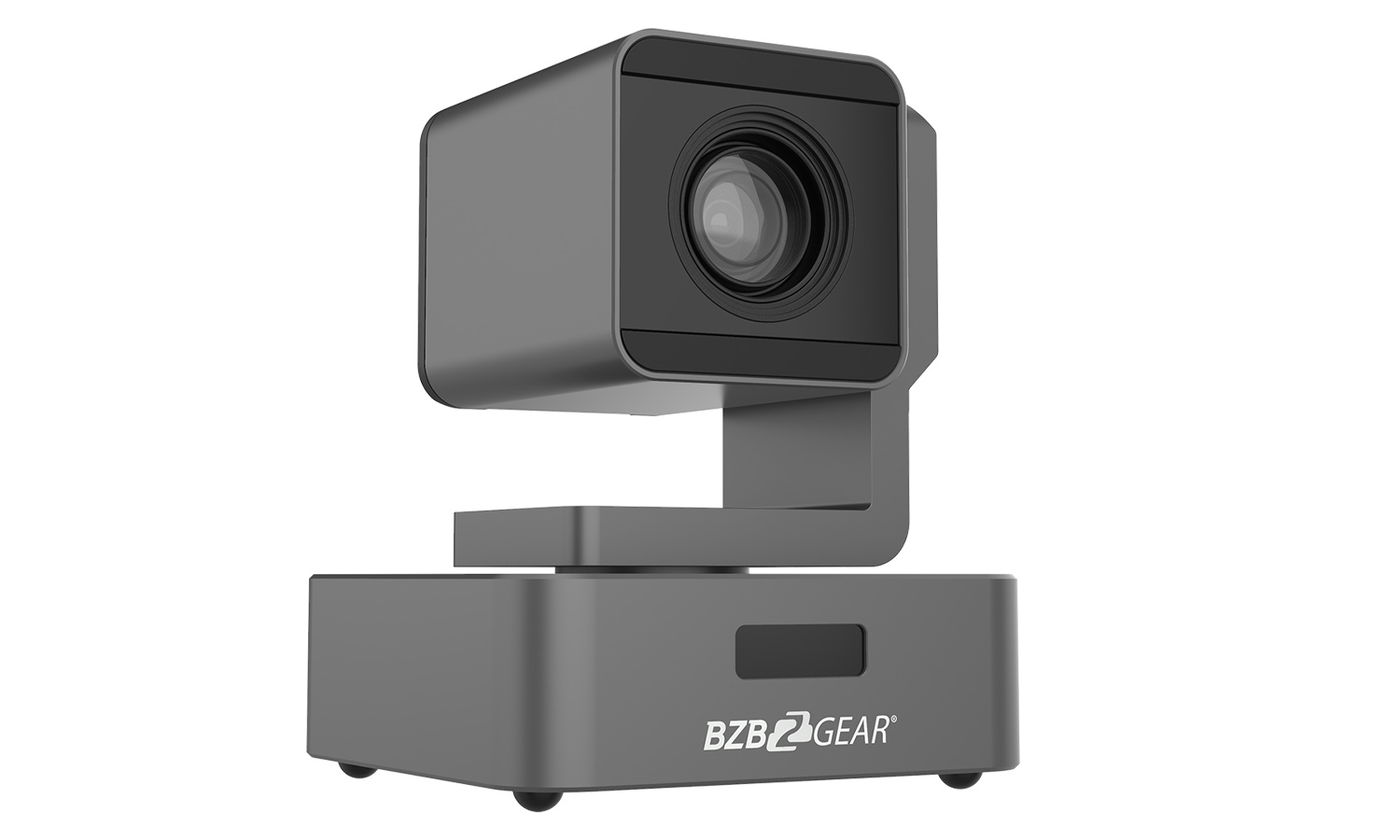

The included camera utilizes a 1/2.8" high-quality HD CMOS sensor to display images at resolutions up to 1080p @ 30Hz. It also comes equipped with manual and autofocus, a 10x optical zoom lens, and a distortion-free 72° view angle to produce a crystal clear image at the perfect angle.

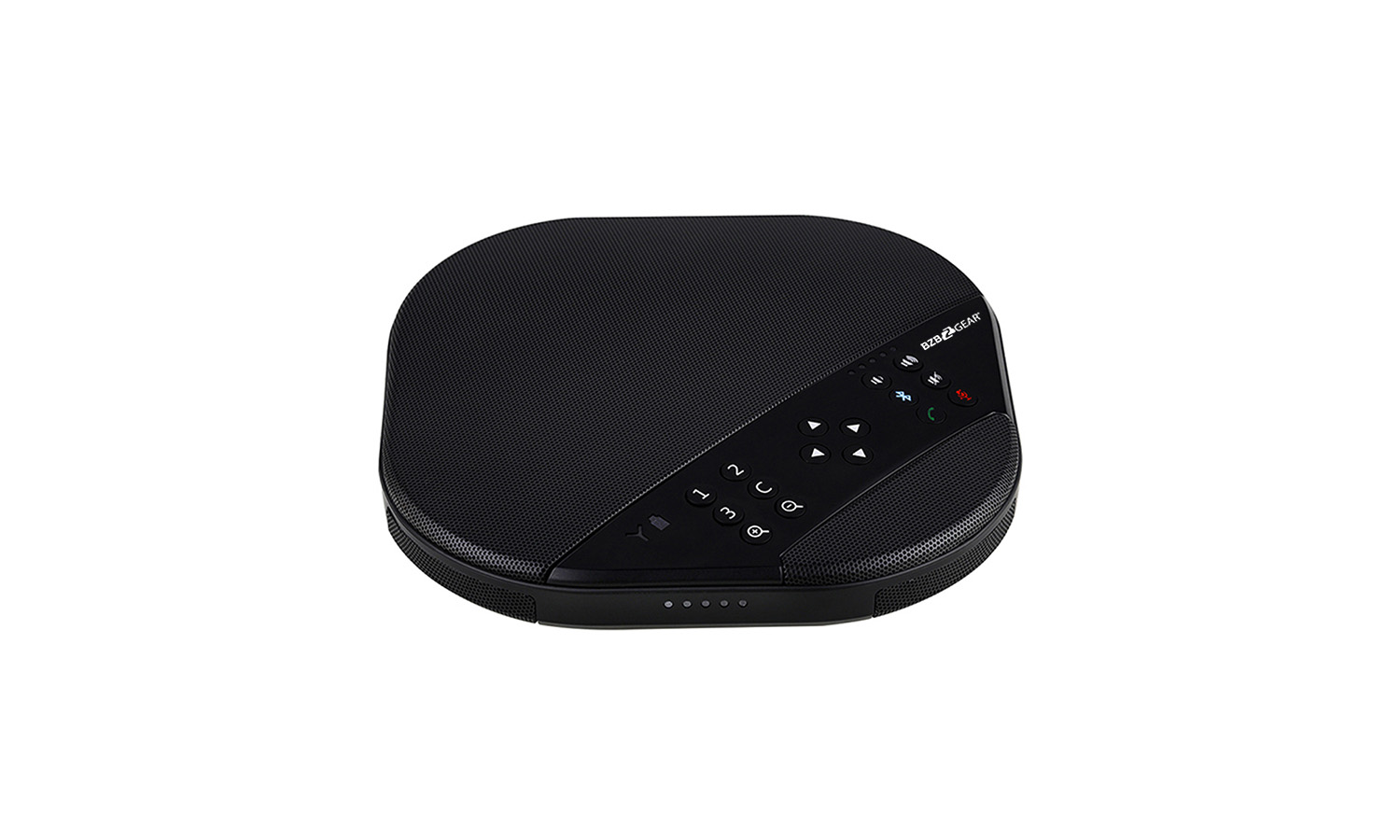

The speakerphone comes with an advanced microphone array to pick up 360 degrees of sound up to 5 meters away. You can pair your mobile device to the speakerphone with Bluetooth to have higher quality audio calls.

Plug and play connectivity results in a simple setup with no drivers to install. Simply connect the kit to your computer via USB and you are ready to go. Compatible with both Mac and Windows devices, it’s supported by most conferencing software and cloud applications. For those in need of easy-to-use equipment for small meeting rooms, individual offices, and collaboration spaces, the BG- AIO-KIT is your simple yet affordable video conferencing solution.

Features

  • Plug-and-Play Setup
    Plug and Play
    Easy setup with no drivers to install
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    High-Quality Sound
    No more straining to hear through tinny computer speakers
  • badge-Full-hd | 1080P HD
    Crystal Clear Images
    1080p30Hz HD video with autofocus and 10x zoom lens
  • ph_bluetooth | BLUETOOTH
    Bluetooth Connectivity
    Pair your mobile device for better sounding conference calls
  • Wide-Angle 1
    Distance
    Advanced microphone array picks up 360 degrees of sound up to 10 meters away
  • bi_usb-symbol
    Easy to Use
    Simply connect the kit to your computer via USB
  • Use with the conferencing app of your choice
  • 2D/3D dynamic noise reduction
  • Wide 83.7° field of view
  • Launch video meetings with plug & play USB
  • Control camera and presets with IR remote
  • Signal to noise ratio of >55dB
  • High-end speakerphone with optional extra mics
  • Compatible with Mac and PC
  • Complete A/V conferencing package

Tech Specifications

Sensor 1/2.8" high quality HD CMOS sensor
Effective Pixels 2.07MP, 16:9
Video Format 1080p30Hz/25/20/15/10/5, 1024X768p/1280X720p/
Optical zoom lens 10x optical zoom, f=3.1~15.5mm
View angle 20°(tele) 83.7°(wide)
Aperture value F1.8 - F2.8
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D/3D DNR
White Balance Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Auto/Manual/One Push
Aperture/Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/Dynamic level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Rotation angle Pan: -125°~+125°, Tilt: -30°~+30°
Control speed Pan: 0.1 ~65°/sec, Tilt: 0.1~35°/sec
Dimensions 5.97in x 5.17in x 6.08in / 151.64mm x 131.25mm x 154.5mm (LxWxH)
Working Environment Indoor Only



Speakerphone

Voice technical parameters Acoustic Echo cancellation (AEC): >65dB
Echo length cancellation: ≥400ms
Bidirectional noise compression (NC): <25dB
Automatic gain control (AGC)
Audio parameters Microphone frequency response: 100Hz-22KHz
Speaker frequency response: 100Hz-22KHz
Speaker volume: 95dB at the most
Microphone sound-pickup diameter: 6, 360 degrees full range
Bluetooth Bluetooth devices available
IR Reception Angle: 360° Distance: 10m IR Transparent transmission available
Expansion Mic (optional) 2 external microphones optional for connection makes the sound-pickup diameter up to 10 meters
Dimensions 7.87in x 7.87in x 2.05in / 200mm x 200mm x 52mm (LxWxH)

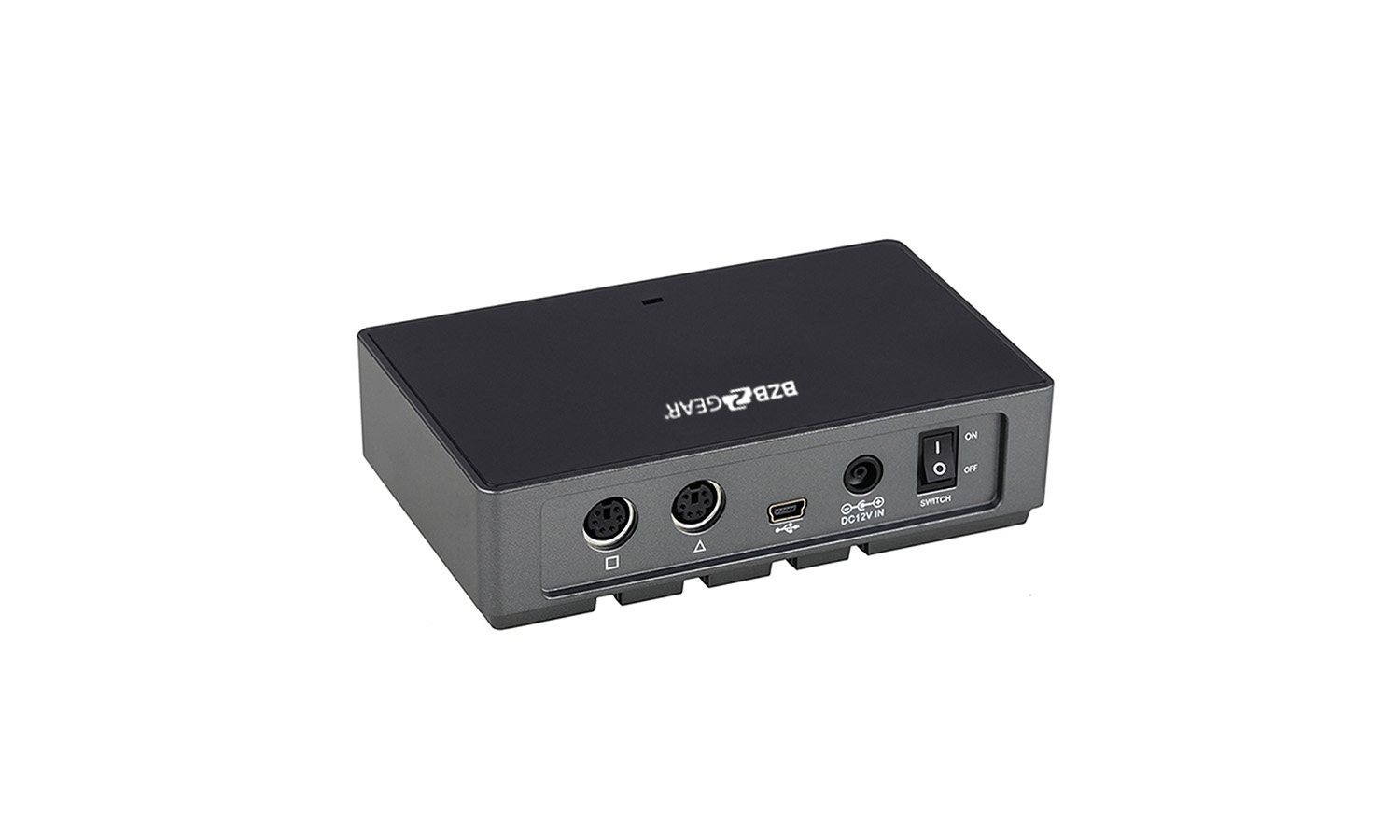

Hub

Interface Mini DIN6 x2, Power interface x 1, Power switch x 1, Mini USB interface x 1
Power supply EC3800 plug (DC12V), Adapter input AC110V-AC220V, output DC12V/1.5A
Connection Cable Mini DIN6 data line x 2, Length: 5m (10m/15m for options)
USB cable USB 2.0 cable
Compatibility Support Windows, Android, iOS and Linux, Drive-free automatic recognition of cameras, microphones and speakers. Compatible with Zoom, Lynch, Vidyo, Skype for business and etc.
Dimensions 3.94in x 2.44in x 1.06in / 100mm x 62mm x 27mm (LxWxH)

Resources

Documents

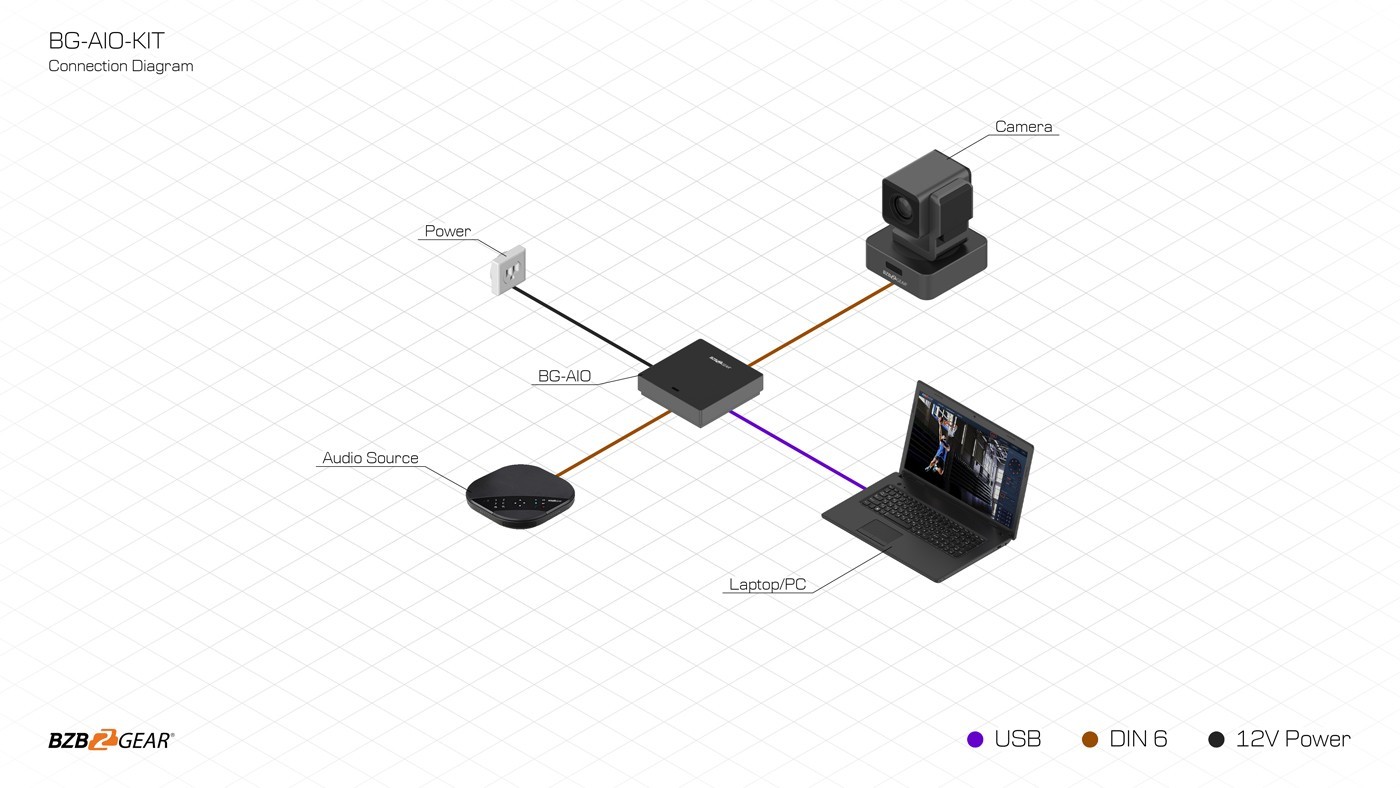

Download See Diagram
Download Download Brochure

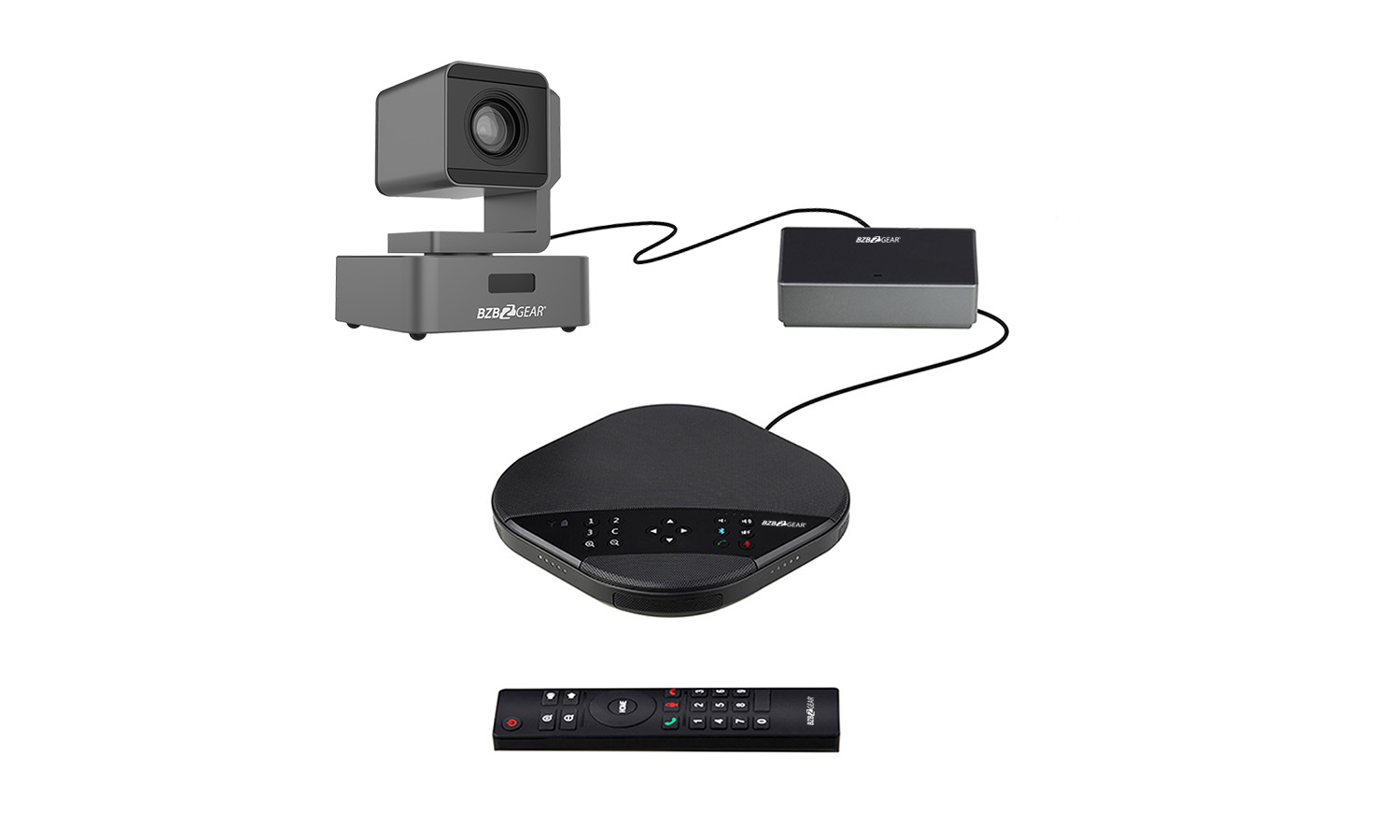

PACKAGE CONTENTS

  • Speakerphone
  • HD PTZ Camera
  • Hub

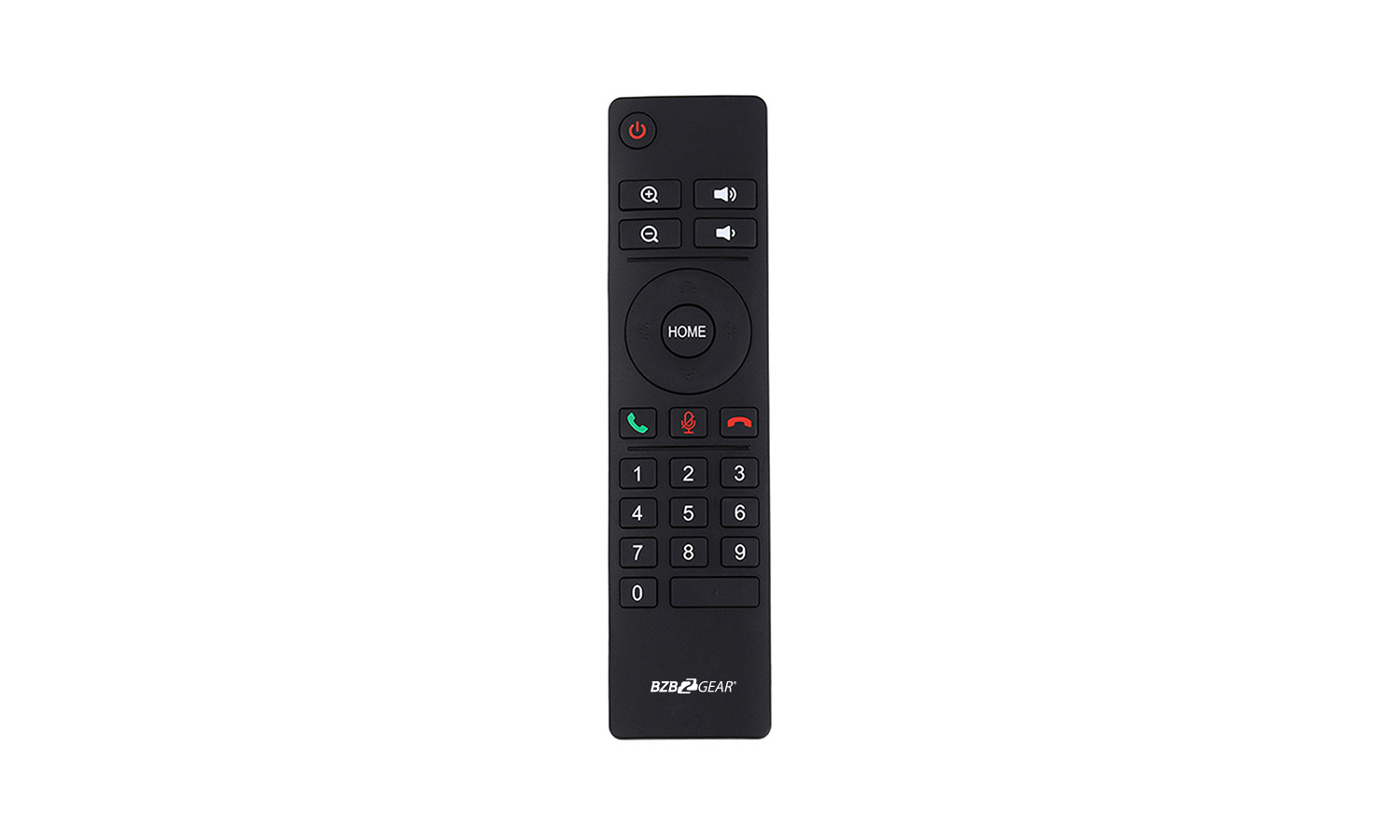

  • Remote Control
  • 5.5m DIN6 Cable x 2 pcs
  • 6.3m USB Cable x 1 pcs
  • Power Supply
