8K UHD HDMI 2.1 2x1 KVM Switch with USB 3.0/Hotkey Switching/IR Control

EssentialGear
NEW
BG-8K-KVM21A-1 BG-8K-KVM21A-2 BG-8K-KVM21A-3 BG-8K-KVM21A-4 BG-8K-KVM21A-5 BG-8K-KVM21A-6 BG-8K-KVM21A-7 BG-8K-KVM21A-8 BG-8K-KVM21A-9 BG-8K-KVM21A-10
BG-8K-KVM21A-1
BG-8K-KVM21A-2
BG-8K-KVM21A-3
BG-8K-KVM21A-4
BG-8K-KVM21A-5
BG-8K-KVM21A-6
BG-8K-KVM21A-7
BG-8K-KVM21A-8
BG-8K-KVM21A-9
BG-8K-KVM21A-10
U.S.-based Company
U.S.-based Company
Complimentary design services<br> and engineering support
Complimentary design services
and engineering support
3 year warranty
3 year warranty
Click here to learn more about BZBGEAR Fundamentals
BZBGEAR Fundamentals
Configure the Perfect Solution
Get Started
Overview Specifications Interfaces Resources Package contents Trade In

The 8K60 HDMI 2.1 2x1 KVM Switch is designed to deliver seamless control of two computers using a single keyboard, mouse, and display without sacrificing performance. Supporting ultra-high resolutions up to 8K@60Hz, 4K@120Hz/144Hz, and 1080p@240Hz, this switch is ideal for professional AV environments, high-refresh gaming setups, and advanced workstations that demand uncompromised video quality and fast switching.

Equipped with USB 3.0 peripheral sharing, multiple control methods, and advanced HDMI 2.1 features, the switch ensures a smooth, zero-latency experience. With broad operating system compatibility and true plug-and-play operation, it integrates easily into professional workflows, control rooms, studios, and high-performance desktop environments.

Features In-Depth

Built around HDMI 2.1 architecture, this 2x1 KVM switch supports a 40Gbps video bandwidth, ensuring stable transmission of ultra-wide and high-refresh video formats. Full support for HDR, HDR10, HDR10+, Dolby Vision, and HLG preserves accurate color reproduction and contrast, while HDMI 2.1 gaming features such as VRR, ALLM, QMS, QFT, and SBTM deliver smooth, tear-free visuals with minimal latency.

The integrated USB 3.0 switching engine enables shared access to keyboards, mice, storage devices, webcams, and other peripherals at speeds up to 5Gbps. Each HDMI input is equipped with independent EDID emulation, maintaining stable resolution and preventing display re-handshaking during source switching. Advanced hardware and firmware design ensure zero video and audio latency, making it suitable for live production, mission-critical control, and fast-paced interactive environments.

For flexible control and automation, the switch supports front-panel buttons, keyboard and mouse hotkeys, IR remote control, and RS-232 ASCII commands. A built-in virtual interaction function automatically wakes connected PCs from standby, significantly reducing switching time. With support for Windows, macOS, and Linux and no drivers required, the unit delivers reliable, plug-and-play performance in both professional and enthusiast applications.

Features

  • bi_badge-8k
    8K HDMI 2.1 Performance
    Supports resolutions up to 8K@60Hz, 4K@120Hz/144Hz, and 1080p@240Hz with a 40Gbps video bandwidth
  • KVM
    2x1 KVM Switching
    Control two computers using one keyboard, mouse, and display
  • bi_usb-symbol
    USB 3.0 Peripheral Sharing
    Share USB devices at speeds up to 5Gbps
  • One-Push Source Switching
    Zero-Latency Switching
    Instant video and USB switching with no visible delay
  • Compliant
    Advanced HDMI 2.1 Features
    Supports VRR, ALLM, QMS, QFT, and SBTM
  • Four Control Modes
    Multiple Control Options
    Front-panel buttons, hotkeys, IR remote, and RS-232 control
  • HDCP 2.3 Compliance
  • HDR Pass-Through: HDR, HDR10, HDR10+, Dolby Vision, and HLG
  • Virtual Interaction Technology: Automatically wakes PCs from standby
  • EDID Emulation per Input: Ensures stable display and resolution detection
  • Auto Switching Support
  • Hot-Plug Capability
  • Wide OS Compatibility: Windows, macOS, and Linux CEC Support
  • Compact Metal Enclosure: Durable, space-saving design
  • Easy Installation: Plug-and-play with no drivers required

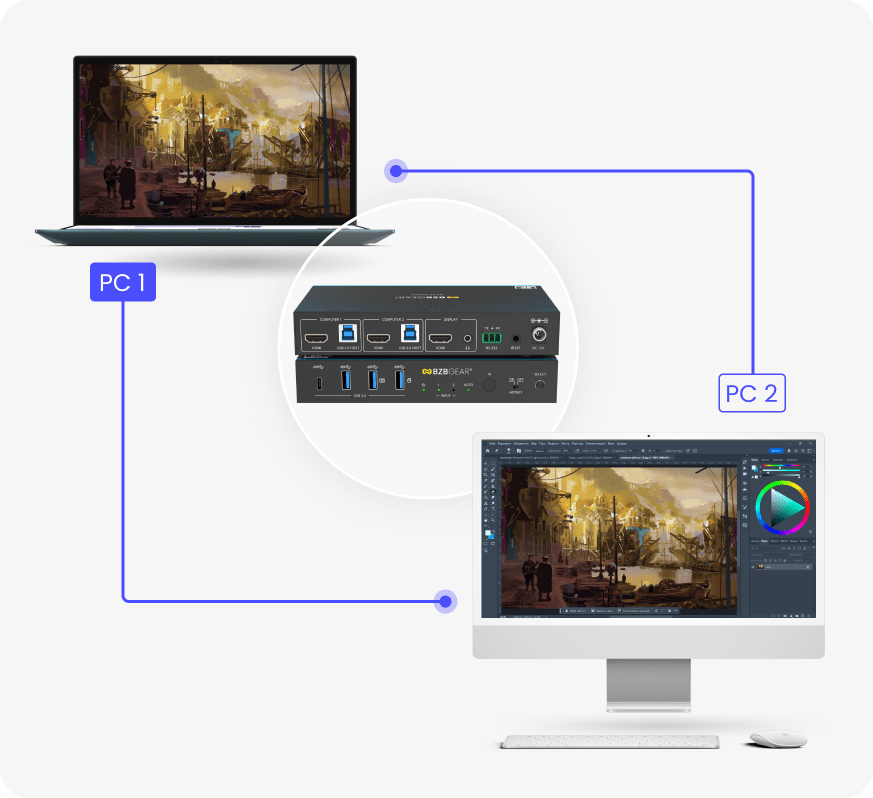

Content Creation / Post-Production

The BG-8K-KVM21A’s full 48Gbps HDMI 2.1 bandwidth ensures uncompressed 8K and high-frame-rate 4K signals are delivered without chroma subsampling or visual artifacts, preserving image fidelity throughout the workflow. Support for RGB and YCbCr 4:4:4, 12-bit color depth, and advanced HDR formats allows editors and colorists to evaluate accurate color, contrast, and luminance in real time.

EDID emulation per input maintains consistent resolution and refresh settings for each workstation, eliminating display renegotiation when switching systems. This results in uninterrupted timelines, stable grading sessions, and precise visual monitoring across multiple production machines.

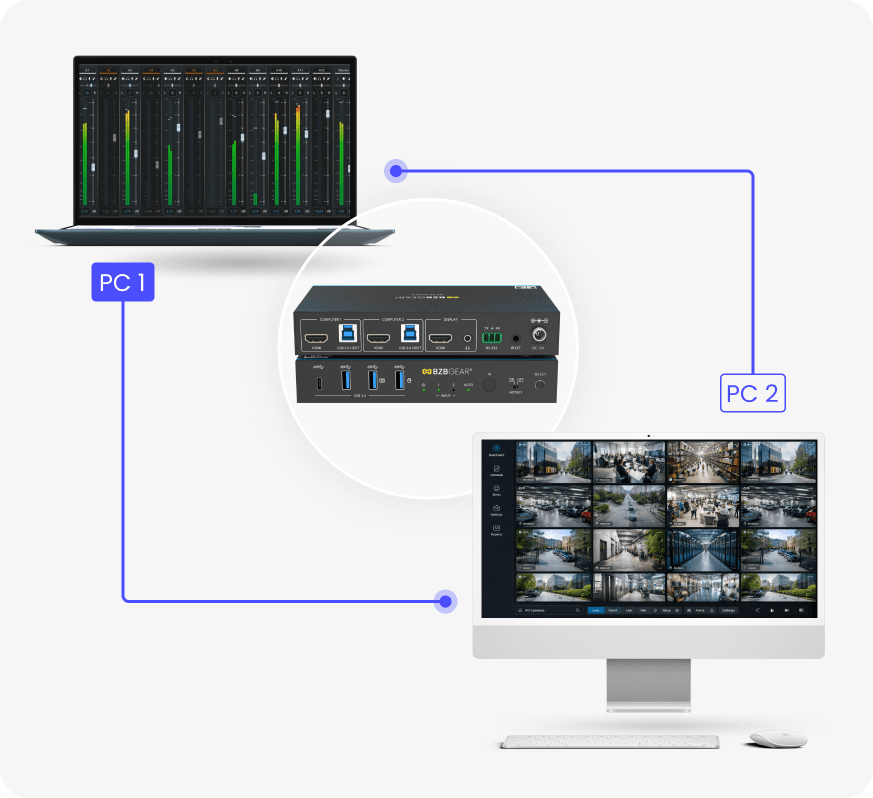

Professional AV / IT / Control Rooms

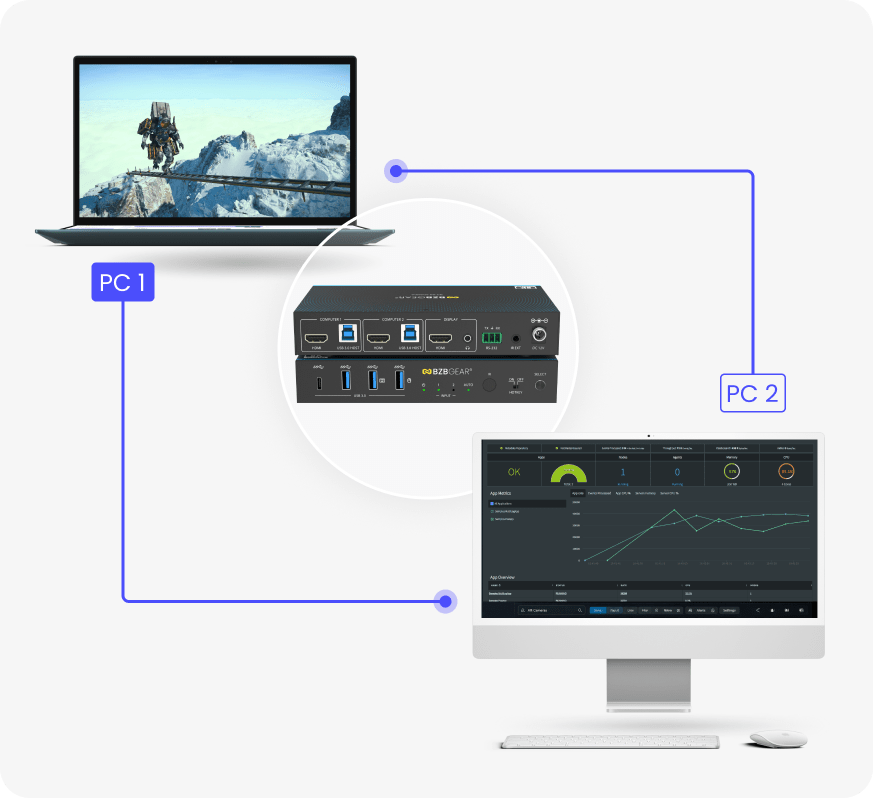

Designed for operational environments, the 2x1 KVM architecture enables seamless control of two computers through a single workstation without compromising video or USB performance. Near-zero video and USB latency ensures instant operator response, while USB 3.0 peripheral sharing supports high-speed devices such as cameras, storage, and control interfaces.

Virtual interaction technology minimizes downtime by automatically waking connected systems during switching, improving efficiency in time-sensitive operations. With RS-232 and IR control, the unit integrates easily into centralized control systems for automated and dependable system management.

High-End Gaming / Simulation

The BG-8K-KVM21A supports 4K at 120Hz/144Hz and 1080p at 240Hz, delivering smooth, ultra-responsive visuals required for competitive gaming and simulation environments. Advanced HDMI 2.1 features such as VRR, ALLM, QFT, and QMS reduce latency, eliminate screen tearing, and optimize frame timing for fluid motion.

Near-zero-latency switching ensures immediate input response when moving between systems, maintaining immersion and precision. Multiple control options - including hotkeys, front-panel buttons, and IR remote - allow fast, intuitive switching without disrupting gameplay or simulations.

BG-8K-KVM21A-A-plus-1

Tech Specifications

Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth 40Gbps
Audio Latency No Latency
Video Latency No Latency
Video Resolution Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
IR Level 5Vp-p
IR Frequency Fixed frequency 38KHz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12bit
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
CEC Support
Audio Formats HDMI IN/OUT:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
L/R OUT:
PCM 2.0CH
ESD Protection IEC61000-4-2:
±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection
Input Ports 2 x HDMI input [Type A, 19-pin female]
Output Ports 1 x HDMI output [Type A, 19-pin female]
1 x L/R audio output [3.5mm Stereo Mini-jack]
Control ports 1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack]
2 x USB HOST [USB Type B]
4 x USB DEVICES [USB Type A]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions (W x D x H) 6.9in x 3.9in x 1.2in [175mm x 100mm x 30mm]
Weight 1.1 lbs [506g]
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption Typical value: 7W
Standby mode: 0.7W
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no-condensing)
Recommended HDMI Cable
Video Resolution 8K60/8K30/4K120 4K60 1080P
HDMI Cable Type Ultra HDMI 2.1 cable HDMI cable HDMI cable
HDMI Cable Length
(HDMI IN / OUT)		 2m/6.6ft 5m/16ft 10m/33ft
The use of “Premium High Speed HDMI” cable is highly recommended.

Resources

Documents
Download Download Manual

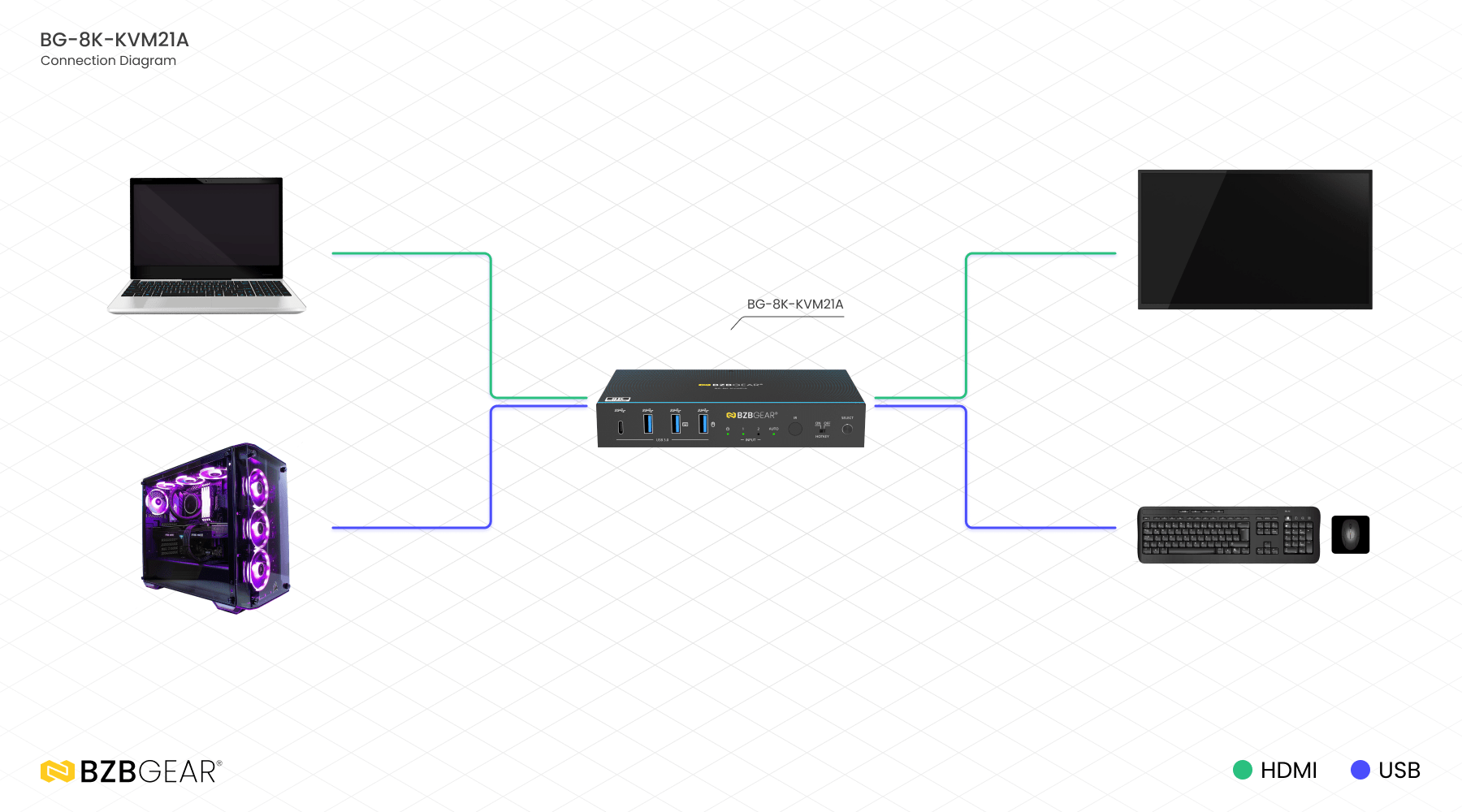

Download See Diagram

PACKAGE CONTENTS

  • 1 x 8K60 2x1 KVM Switcher
  • 1 x IR Remote
  • 1 x 3pin-3.81mm Phoenix Connector (male)
  • 1 x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)
  • 2 x USB Cable (USB 3.0, AM to BM, 1.8 meters)
  • 2 x HDMI Cable (male to male, 1.5 meters)
  • 2 x Mounting Ears
  • 4 x Machine Screws (KM3*4)
  • 1 x 12V/1A Multinational Locking Power Supply
  • 1 x User Manual

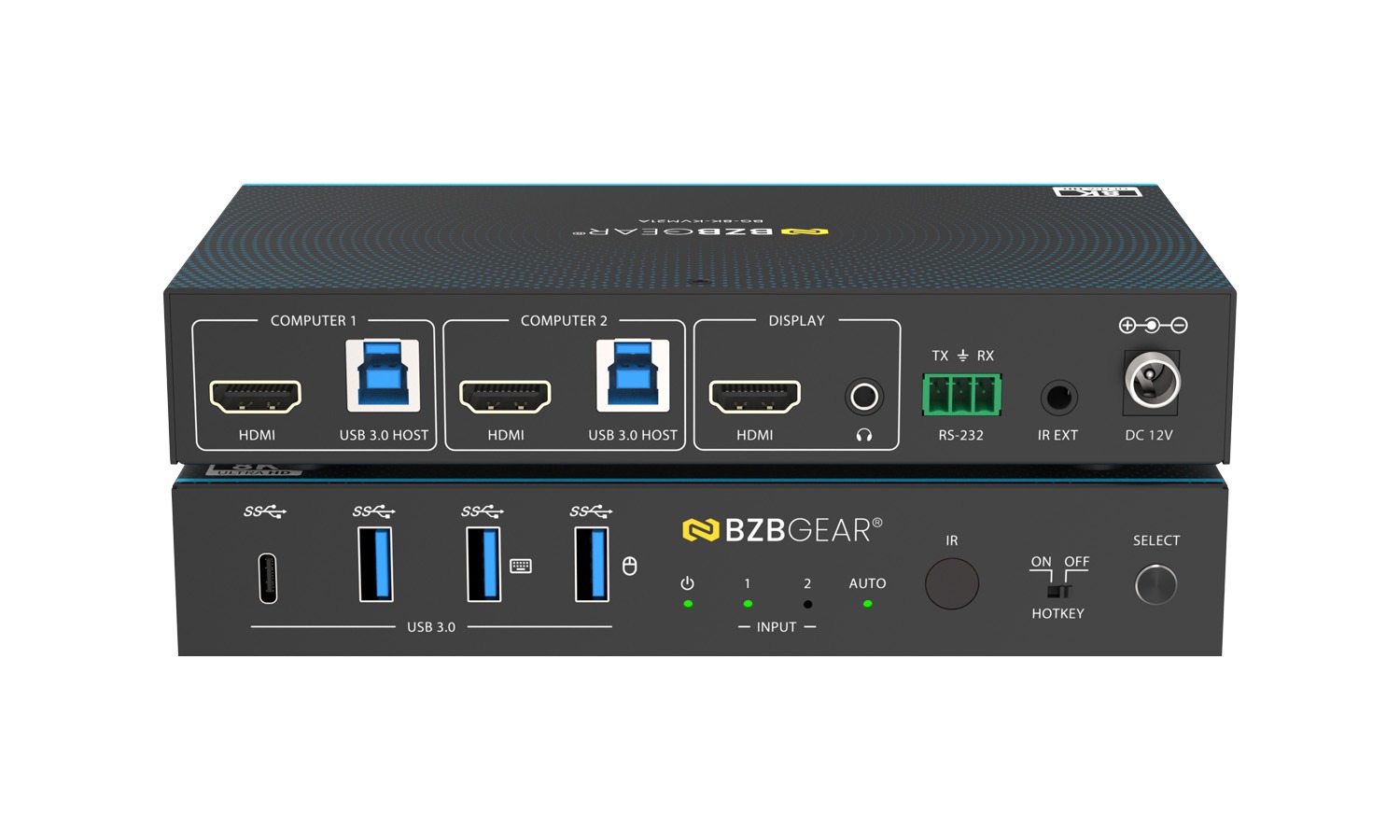

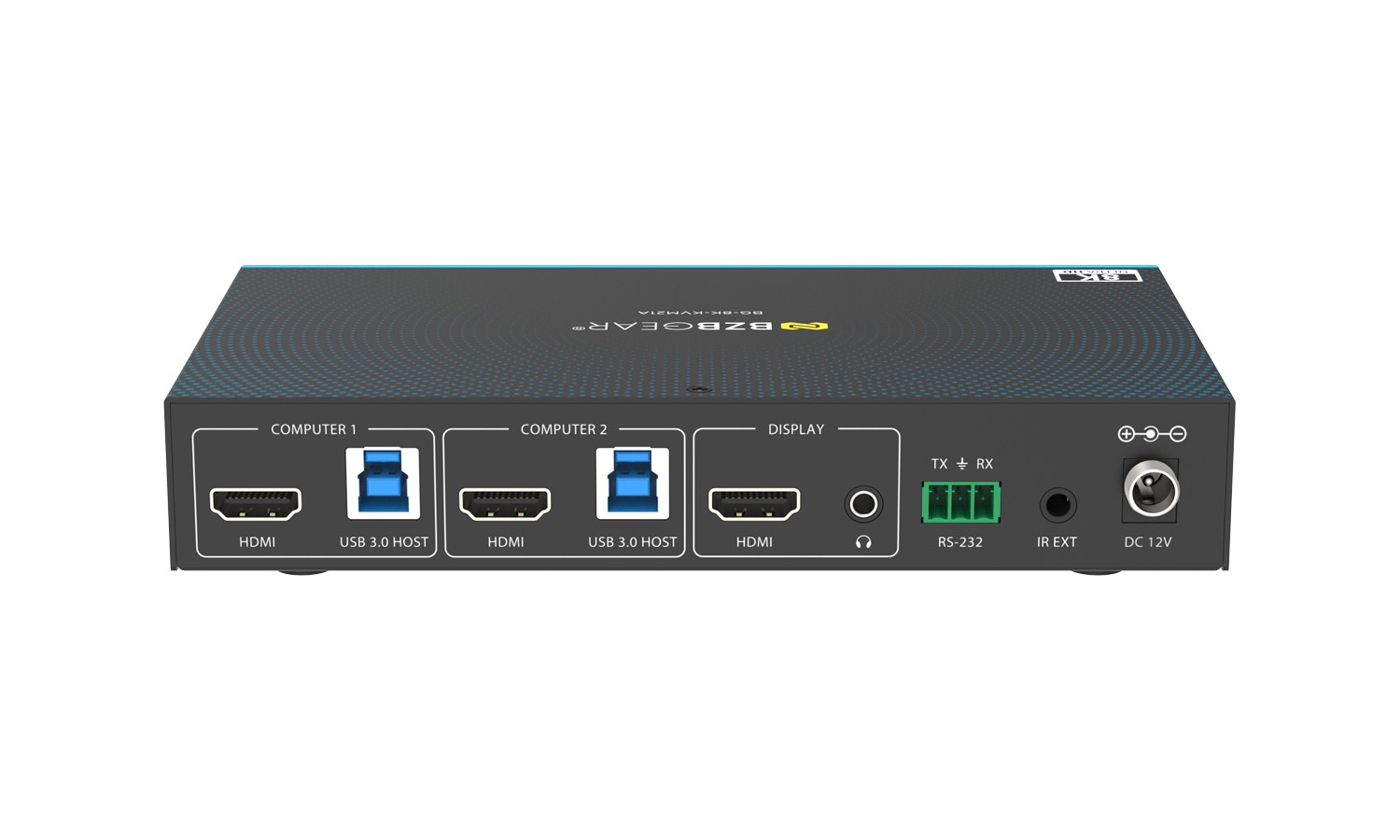

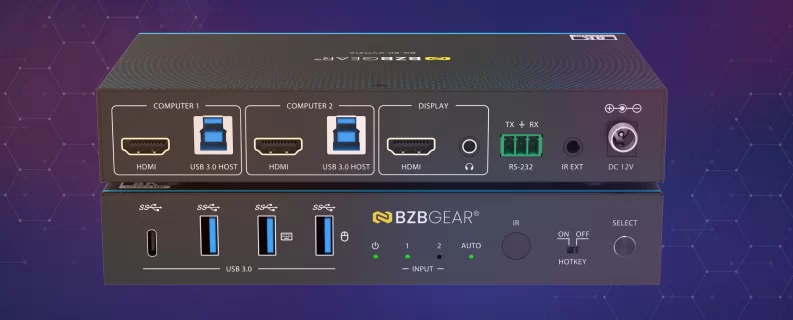

Interfaces

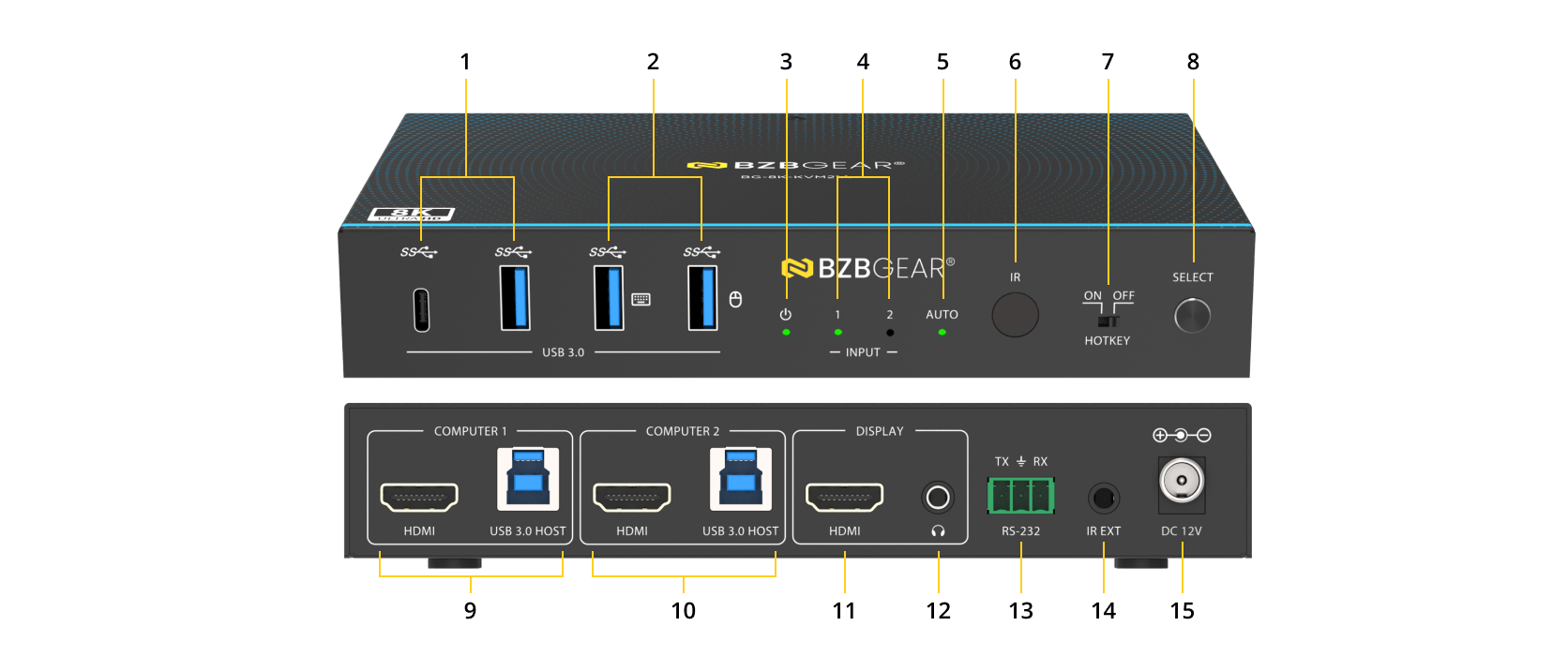

Interfaces image
  1. USB 3.0 Ports: USB 3.2 Gen 1 device ports for connecting peripherals such as flash drives, cameras, printers, and other USB devices.
  2. USB 3.0 Ports (Hotkey Mode): In Hotkey OFF mode, these ports support USB 3.2 Gen 1 devices.
    In Hotkey ON mode, these ports support USB 1.1 keyboard and mouse only for hotkey switching.
  3. Power LED: Lights green when the unit is powered on and operating; lights red when the unit is in standby mode.
  4. Input Channel LEDs (1 / 2): The corresponding LED lights green when HDMI input 1 or 2 is selected as the active input source.
  5. AUTO LED: Lights green when auto-switching is enabled; turns off when auto-switching is disabled.
  6. IR Window: Receives signals from the included IR remote control.
  7. Hotkey Switch: Enables or disables hotkey switching mode.
    ON: Connected keyboard and mouse support hotkey switching.
    OFF: Hotkey switching is disabled.
  8. Select Button: Press to manually switch between HDMI input channels.

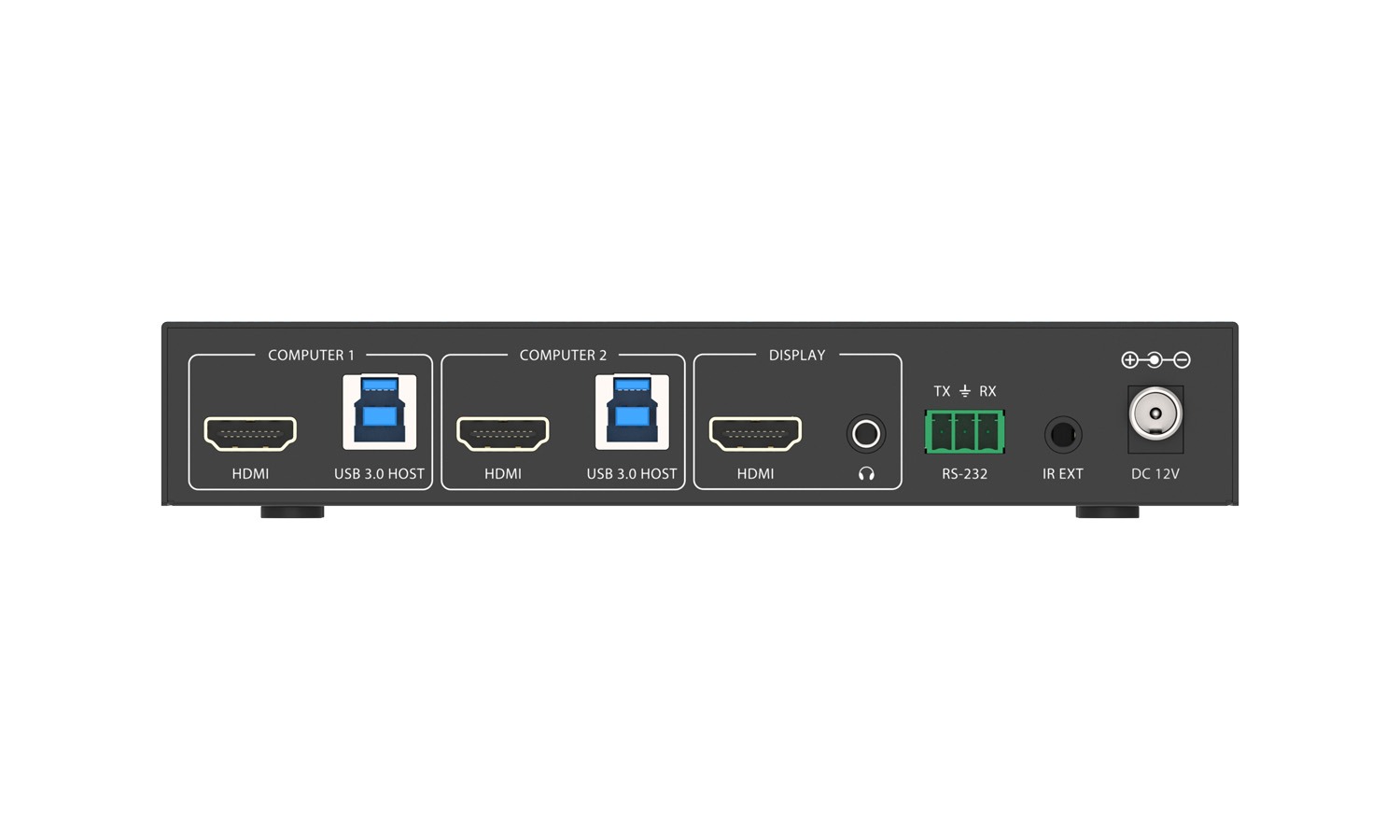

  9. PC 1 Ports: HDMI: HDMI signal input port for connecting a PC or other HDMI source.
    USB HOST: USB host port connected to PC 1; also used for firmware upgrades.
  10. PC 2 Ports: HDMI: HDMI signal input port for connecting a PC or other HDMI source.
    USB HOST: USB host port connected to PC 2.
  11. Display HDMI Port: HDMI signal output port for connecting an HDMI display such as a TV or monitor.
  12. L/R Audio Port: 3.5mm analog stereo audio output port.
  13. RS-232 Port: 3-pin Phoenix connector for connection to a PC or control system; supports serial control and firmware upgrades.
  14. IR EXT Port: External IR receiver input for the included 38kHz IR receiver cable; allows IR control when the front IR window is blocked or out of line of sight.
  15. DC 12V Power Input: DC 12V / 1A power input port.
