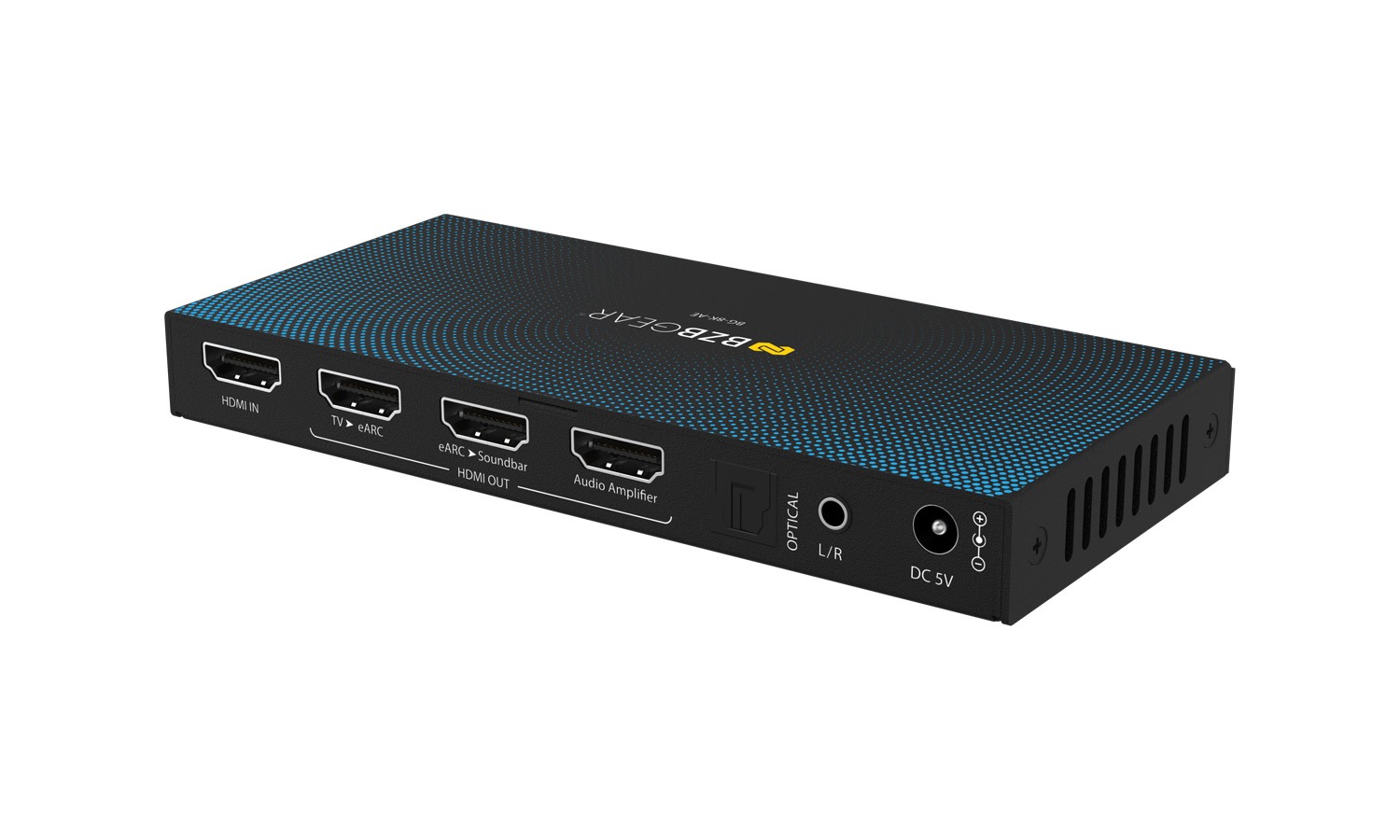

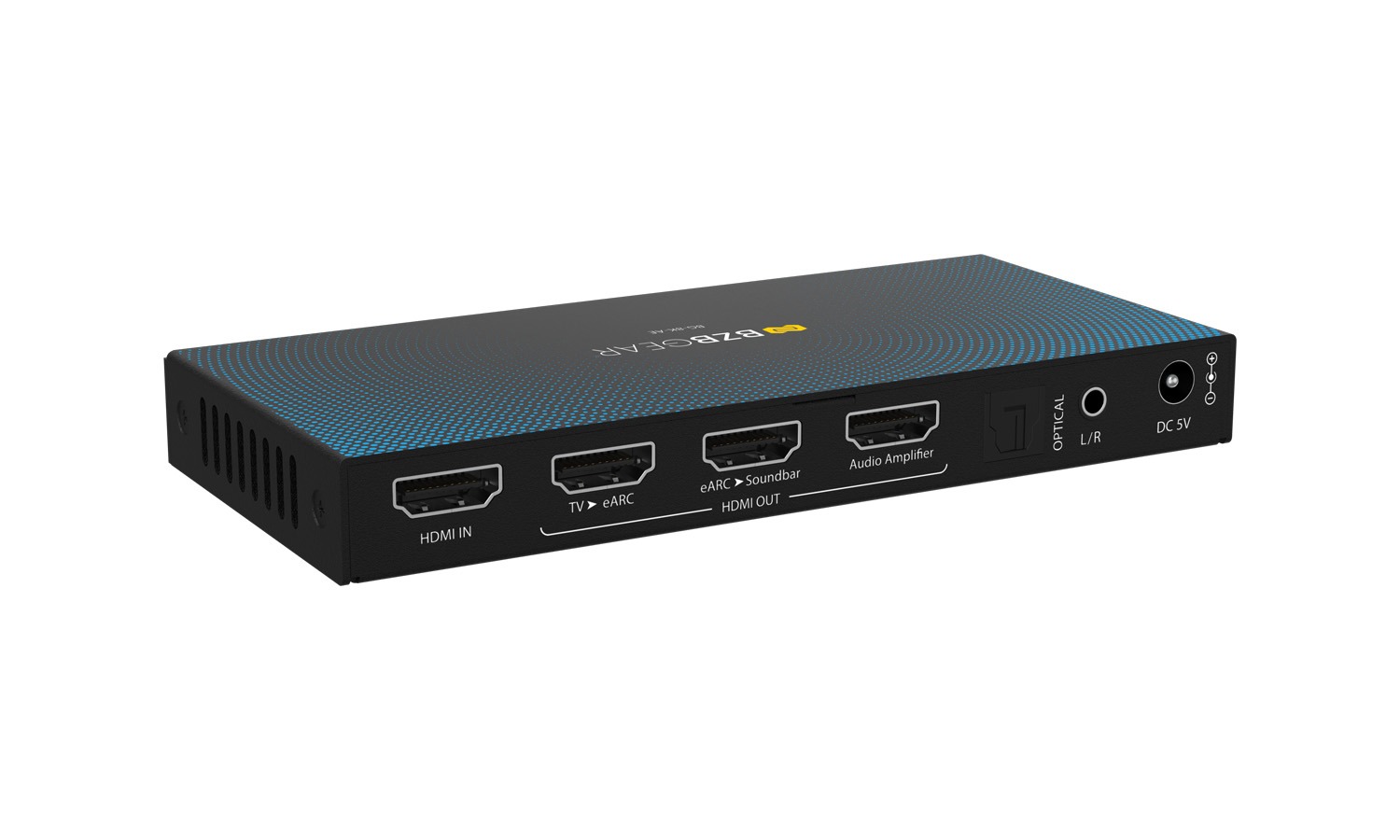

8K HDMI 2.1 eARC Audio to AV Receiver/Soundbar/Amplifier Converter/Adapter with CEC/EDID Support

Configure the Perfect Solution
Get Started

Overview

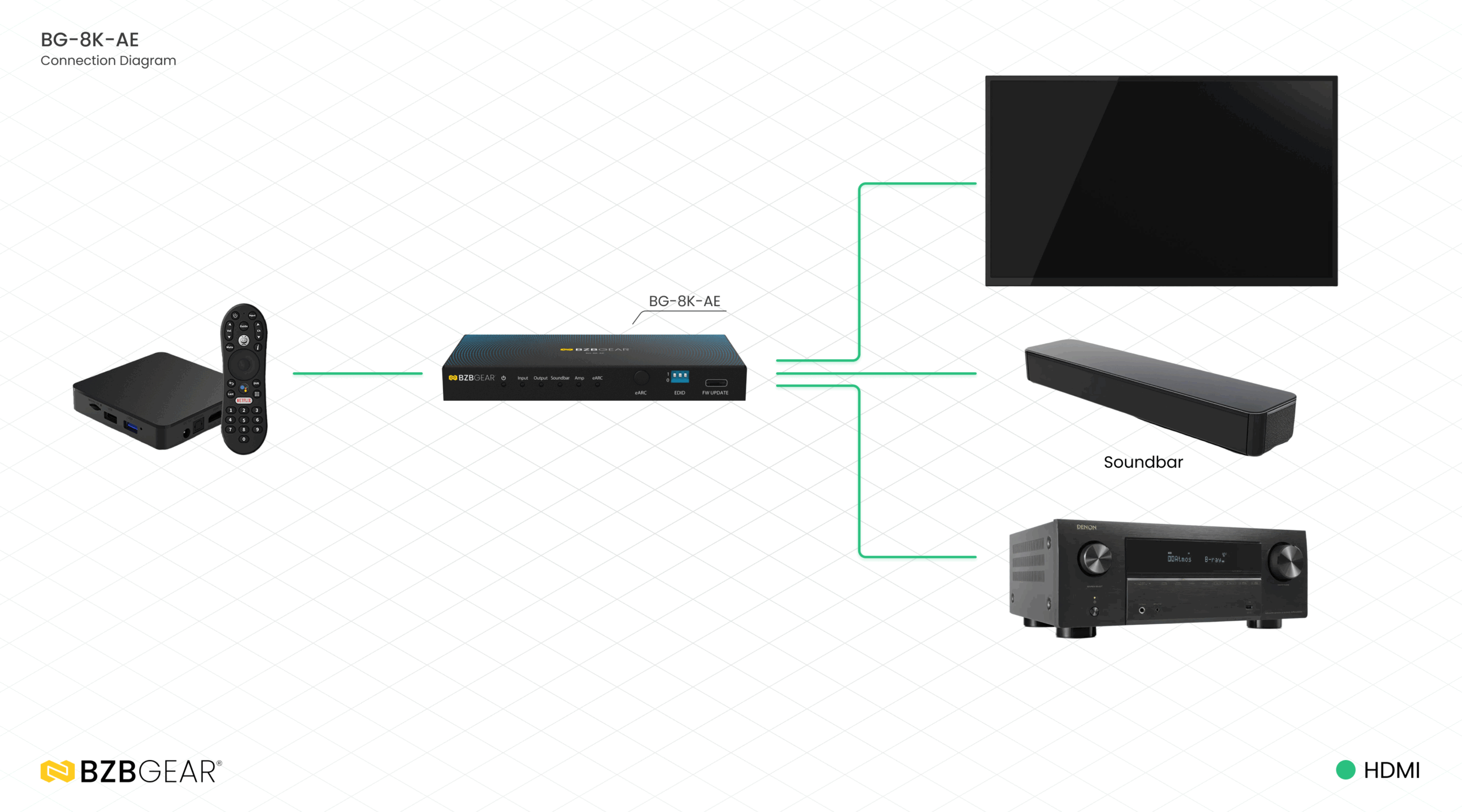

The BG-8K-AE is a high-performance 48Gbps eARC audio adapter engineered to extract audio from an HDMI source or a TV with ARC/eARC functionality and route it to an AV receiver, soundbar, or stereo system. It supports HDMI audio de-embedding to HDMI, digital S/PDIF, or analog L/R outputs, offering seamless audio distribution for modern AV setups.

Fully compliant with HDMI 2.1 and HDCP 2.3, this adapter supports data rates up to 48Gbps, with resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit. It also enables pass-through of advanced HDR formats - including HDR10, HDR10+, Dolby Vision, and HLG—as well as support for VRR, ALLM, QMS, QFT, and SBTM for enhanced video performance.

Designed for effortless integration, the BG-8K-AE includes advanced EDID management, cable equalization, and CEC control, allowing for volume and source control directly from the TV. Whether de-embedding full-quality Dolby Atmos/DTS:X audio to a SONOS ARC, Beam, or eARC-enabled sound system, or routing standard stereo to a 2.0/5.1-channel amplifier, this adapter is a versatile solution for both home theater and professional AV installations.

Features

  • HDR Support
    HDR Pass-Through
    Compatible with HDR, HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG) formats
  • Audio Formats
    High-Definition Audio
    Supports audio pass-through for LPCM 7.1-channel, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X formats
  • bi_soundwave
    Audio De-Embedding
    Extracts audio from HDMI sources and TV eARC/ARC to S/PDIF, stereo L/R analog, and HDMI audio outputs
  • streamline_interface-id-voice-scan-identification-secure-id-soundwave-sound-voice-brackets-security
    eARC/ARC to Soundbar
    De-embeds audio from HDMI sources to eARC/ARC soundbars, including SONOS ARC and Beam, supporting full Dolby Atmos/DTS:X audio
  • ph_devices-light
    CEC Control Support
    Enables CEC control from the TV to HDMI source devices
  • grommet-icons_volume-control
    CEC Volume Control
    Allows CEC-based volume control from the TV to any connected eARC audio system
  • HDCP Compliance: Fully compliant with HDCP 2.3 for secure content transmission
  • EDID Management: Features advanced EDID configuration for optimized compatibility and performance
  • High Bandwidth Support: Supports up to 48Gbps video bandwidth and resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit), following HDMI 2.1 specifications

Tech Specifications

Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth 48Gbps FRL and 18Gbps TMDS/strong
Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Color Depth 8/10/12-bit
Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats HDMI input/output:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX,
DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
eARC AUDIO OUT:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX,
DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
Amp AUDIO OUT:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX,
DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
Audio de-embedding output:
Optical: PCM 2.0CH/Dolby/DTS 5.1CH
L/R: PCM 2.0CH
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input 1 x Source IN [HDMI Type A, 19-pin female]
Output 1 x TV(eARC) OUT [HDMI Type A, 19-pin female]
1 x Soundbar eARC OUT [HDMI Type A, 19-pin female]
1 x Amp AUDIO OUT [HDMI Type A, 19-pin female]
1 x OPTICAL [S/PDIF]
1 x L/R [3.5mm Stereo Mini-jack]
Control 1 x SERVICE [USB Type C, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions (WxDxH) 5.7in x 2.7in x 0.71in [145mm x 68mm x 18mm]
Weight 0.58 lbs [262g]
Power Supply Input: AC 100-240V 50/60Hz, Output: DC 5V/2A
(US/EU standards, CE/FCC/UL certified)
Power Consumption 5.2W (Max)
Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution 8K 4K60 4K24 1080P
HDMI Cable Length
(HDMI IN / OUT)
3m/10ft
(Ultra HDMI 2.1)
8m/26ft 12m/39ft 15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.

PACKAGE CONTENTS

  • 1x 48Gbps eARC Audio Adapter
  • 1x 5V/2A Multinational Power Supply
  • 1x User Manual

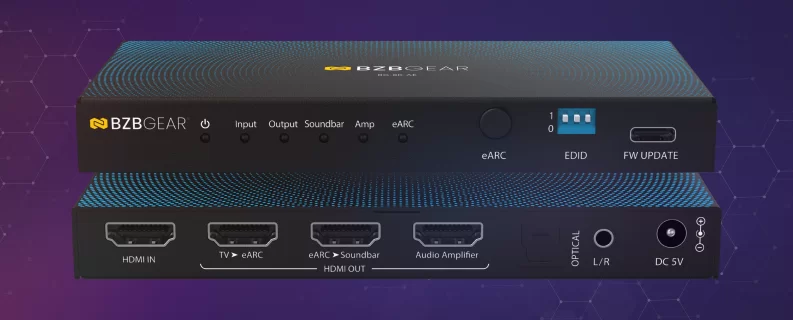

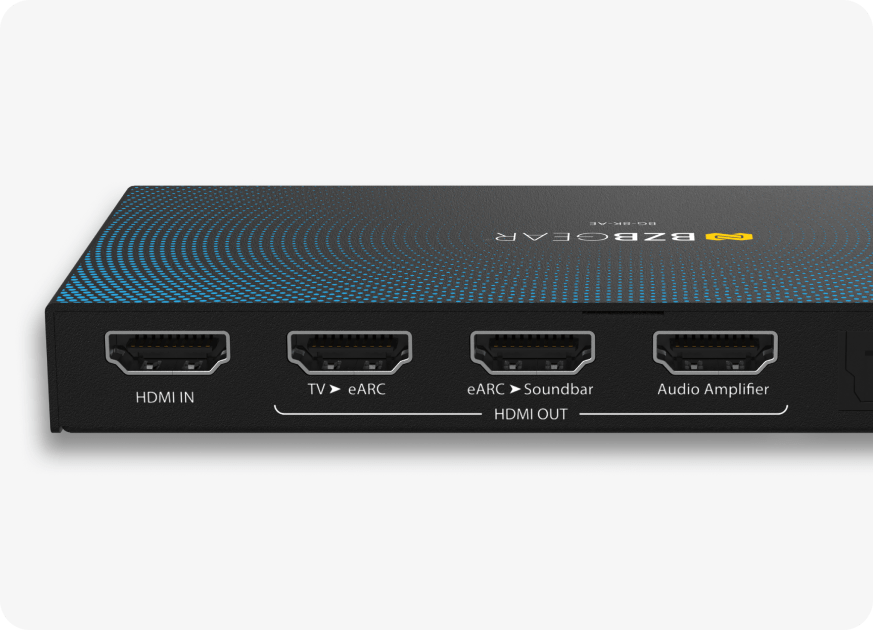

Interfaces

Interfaces image

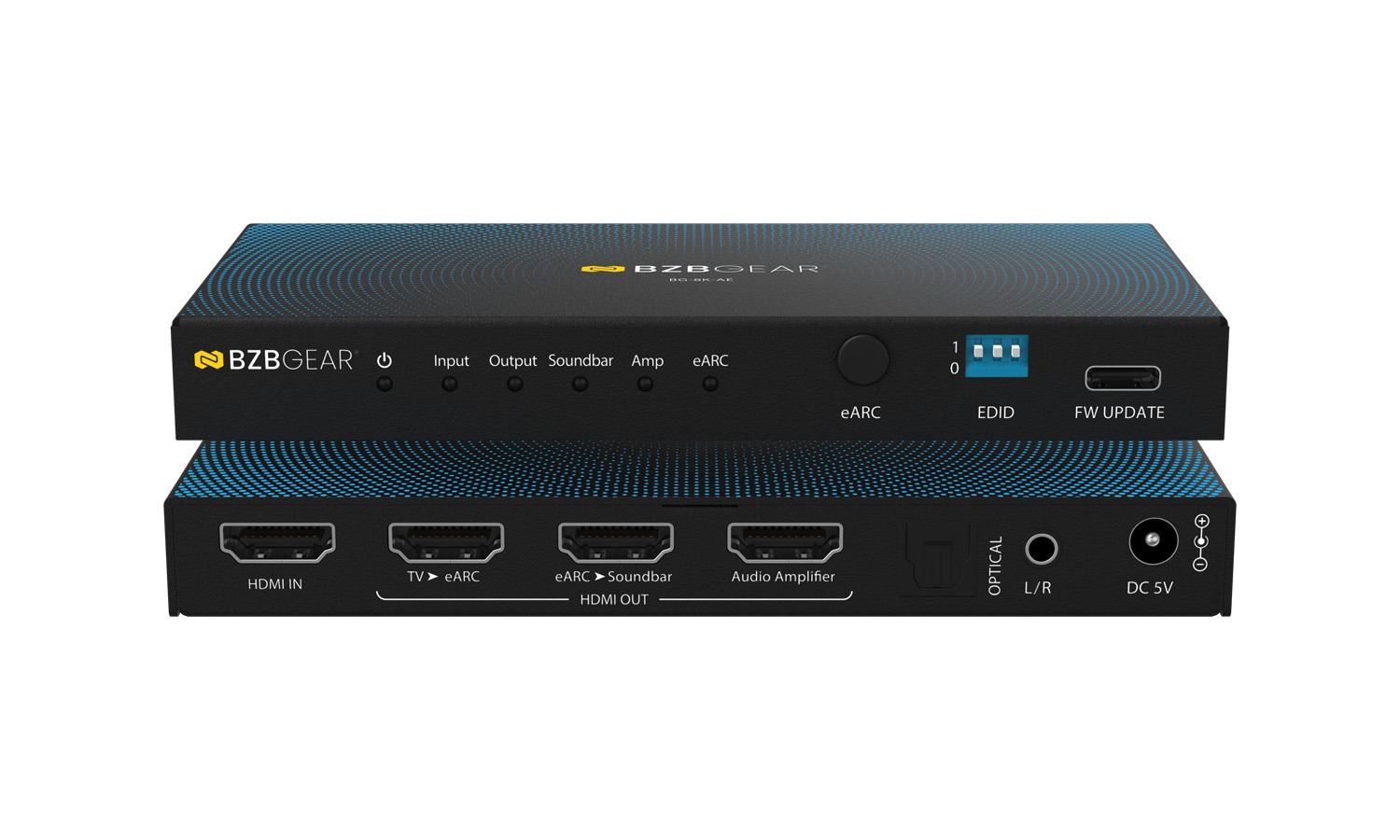

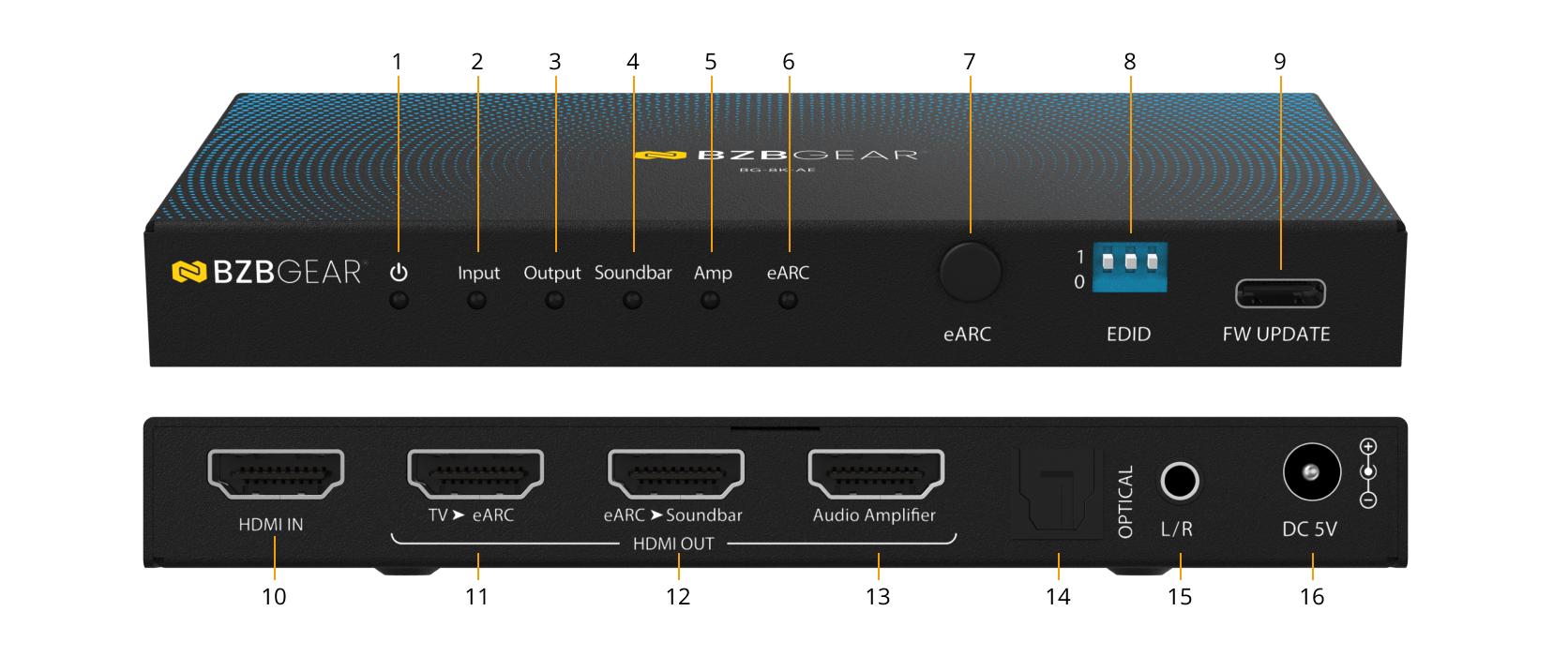

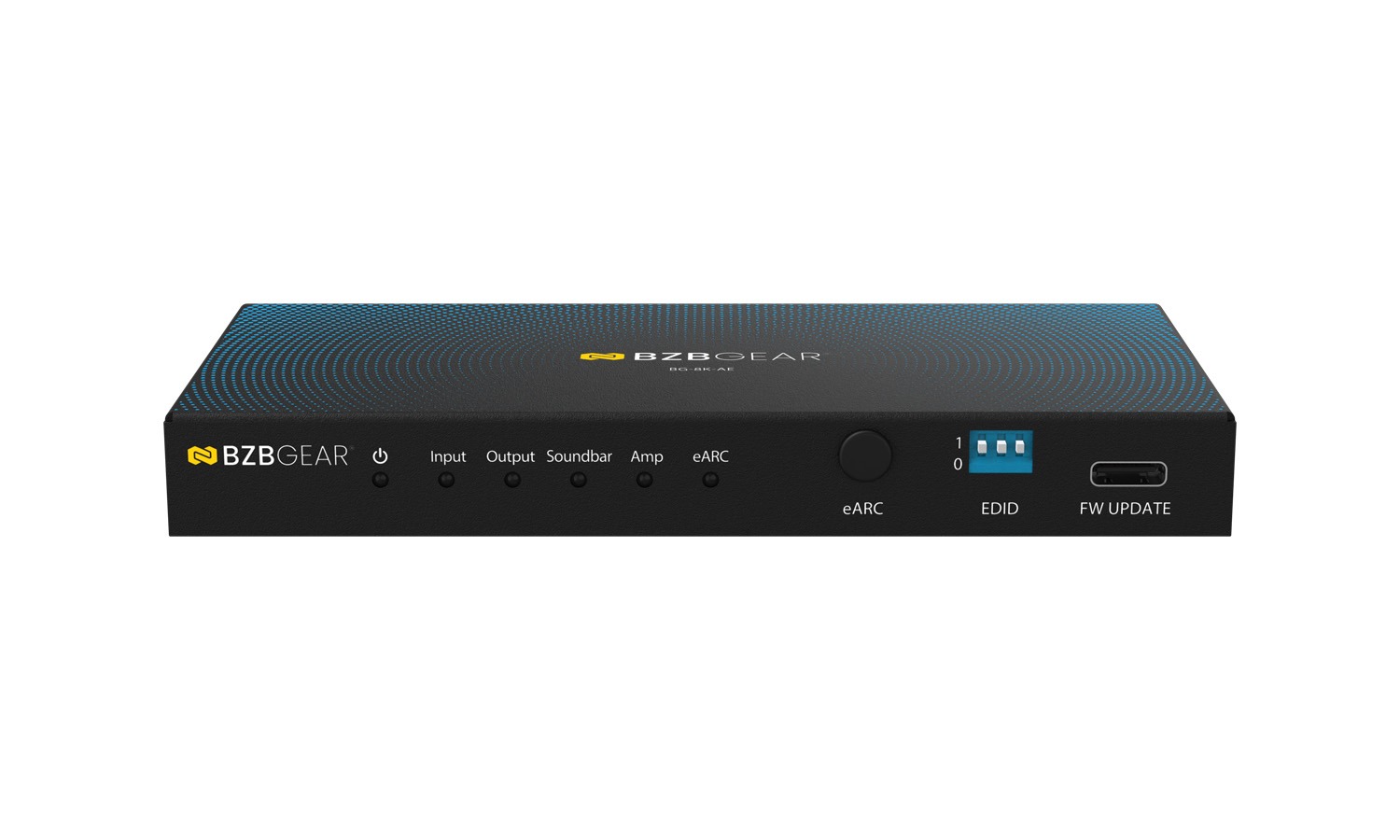

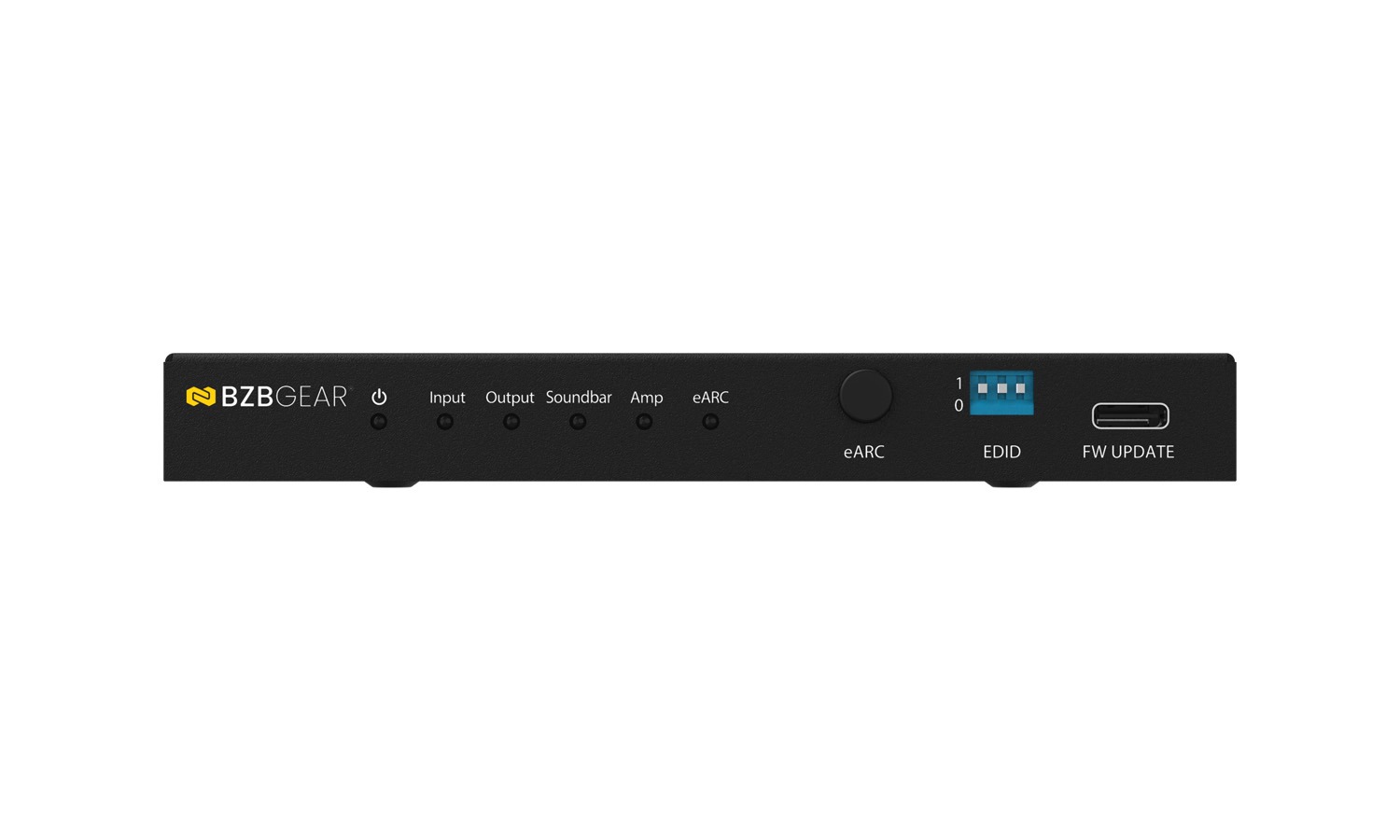

  1. Power LED: The red LED is on when the device is working.
  2. IN LED: The green LED will be on when the input source signal is detected.
  3. OUT LED: The green LED will be on, when the HDMI OUT port connects a display device and outputs signal.
  4. Soundbar LED: The green LED will be on when a soundbar is connected properly.
  5. Amp LED: The green LED will be on when an amplifier is connected properly.
  6. eARC LED: On: The eARC/ARC mode is enabled. CEC communication and eARC is working properly.
    Flashing: The eARC/ARC mode is enabled. CEC communication and eARC is not working properly.
    Off: The eARC mode is disabled.
  7. eARC Button: Press this button to enable or disable the eARC/ARC mode.
  8. EDID DIP Switch: Use the DIP switch to set EDID.
  9. SERVICE: Used for firmware update and serial commands control.

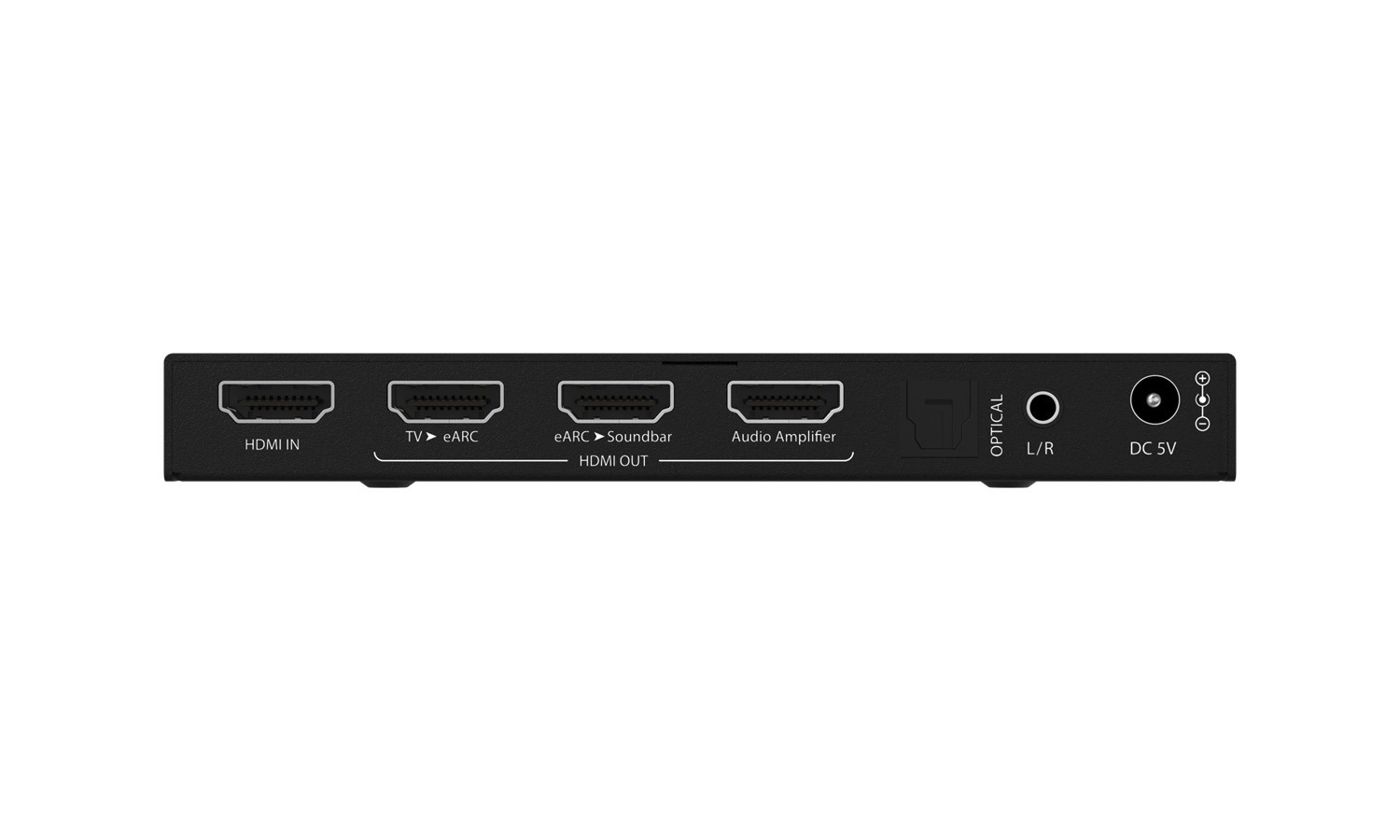

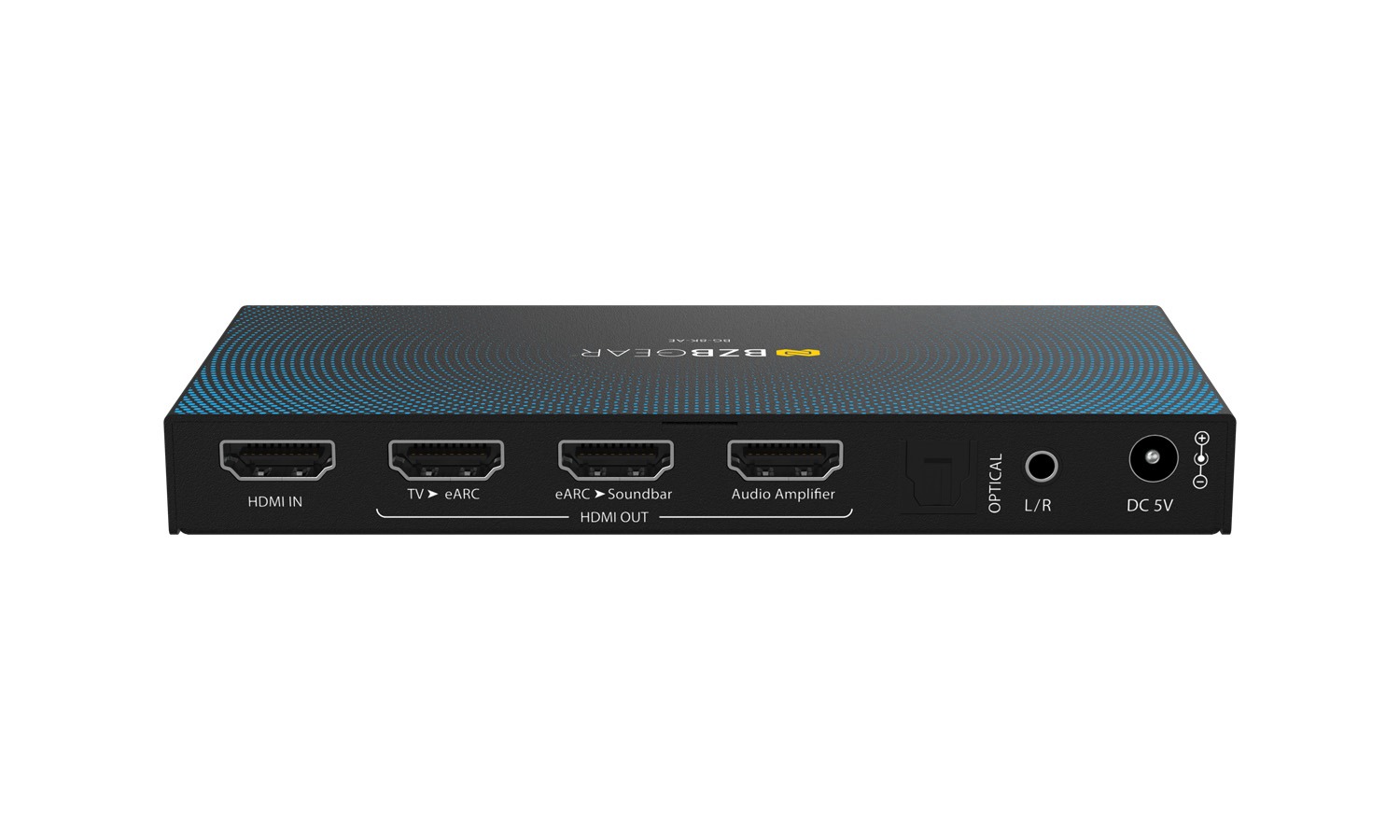

  10. Source IN: HDMI signal input port, connected to HDMI source device such as 8K PC, DVD or PS5 with an HDMI cable.
  11. TV(eARC) OUT: HDMI signal output port, connected to TV (eARC/ARC) with an HDMI cable. It can be used as an eARC/ARC audio channel when the eARC/ARC mode is enabled.
  12. Soundbar eARC OUT: HDMI audio output port, connected to a soundbar (eARC/ARC).
  13. Amp AUDIO OUT: HDMI audio output port, connected to an amplifier.
  14. OPTICAL: Optical fiber audio output port.
  15. L/R: Analog audio output port.
  16. DC 5V: DC 5V/2A Power input port.
