Overview
The BG-8K-AA 48Gbps HDMI Audio De-embedder is a cutting-edge solution engineered to extract high-fidelity audio from HDMI sources or ARC/eARC-enabled TVs without compromising video quality. With support for the latest HDMI 2.1 and HDCP 2.3 standards, it handles ultra-high-definition resolutions up to 8K@60Hz and 4K@120Hz, while also offering advanced features such as Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and multiple HDR formats.
Capable of delivering immersive audio formats like Dolby Atmos and DTS, this device provides direct audio extraction via ARC/eARC for seamless integration with amplifiers. Compact yet powerful, the BG-8K-AA is designed for superior performance in both home theaters and professional AV environments.
Features in Depth
The BG-8K-AA 48Gbps HDMI Audio De-embedder is a versatile tool designed to extract pristine audio from HDMI sources or ARC/eARC-compatible televisions while maintaining a buffered HDMI video output. Ideal for high-end home theater setups and professional AV installations, this device supports HDMI 2.1 and HDCP 2.3 standards, ensuring unrivaled video quality paired with comprehensive audio pass-through capabilities.
With an impressive 48Gbps FRL and 18Gbps TMDS video bandwidth, the BG-8K-AA delivers exceptional clarity at resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit. It also supports cutting-edge features like Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM), optimizing visual performance across a wide range of display technologies. The inclusion of HDR formats such as HDR10, HDR10+, Dolby Vision, and HLG ensures vivid, lifelike images that enhance the viewing experience.
On the audio side, the BG-8K-AA stands out with its ability to pass through advanced formats, including LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS. The ARC/eARC functionality allows for straightforward de-embedding of audio from a TV directly to an amplifier, while CEC control enables effortless operation over connected devices and volume levels using a single remote. The device’s advanced EDID management ensures optimal compatibility across diverse setups, simplifying integration. With a compact design that facilitates easy installation even in confined spaces, the BG-8K-AA 48Gbps HDMI Audio De-embedder combines top-tier video and audio capabilities with intuitive user-friendly features, making it an indispensable component for any sophisticated audiovisual system.
Features
-
HDCP 2.3 CompliantEnsures secure and reliable content protection -
8K and 4K 120Hz SupportDelivers stunning video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) for exceptional visual clarity -
Immersive AudioLPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through -
Audio De-embeddingHDMI input audio or TV ARC/eARC audio de-embedded to HDMI audio output -
CEC SupportEnables intuitive control from TV to source and AMP, including volume adjustments for a seamless audio experience -
Compact DesignFacilitates easy and flexible installation in various setups
- HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth, as specified in HDMI 2.1
- Exclusive HDMI 2.1 Features: Supports VRR, ALLM, QMS, QFT, and SBTM for smooth, responsive, and immersive viewing experiences
- Advanced EDID Management: Ensures optimal device communication and enhanced performance
Videos
Tech Specifications
| Technical | ||||
| HDMI Compliance | HDMI 2.1 | |||
| HDCP Compliance | HDCP 2.3 | |||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | |||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | |||
| Audio Latency | No Latency | |||
| Video Latency | No Latency | |||
| Color Depth | 8/10/12bit | |||
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | |||
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X HDMI AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
|||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | |||
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | |||
| Connection | ||||
| Input | 1 × Source IN [HDMI Type A, 19-pin female] | |||
| Output | 1 × TV(eARC) OUT [HDMI Type A, 19-pin female] 1 × Amp AUDIO OUT [HDMI Type A, 19-pin female] |
|||
| Control | 1 × SERVICE [USB Type C, Update port] | |||
| Mechanical | ||||
| Housing | Metal Enclosure | |||
| Color | Black | |||
| Dimensions (W x D x H) | 3.7in x 2.7in x 0.71in [95mm x 68mm x 18mm] | |||
| Weight | 0.39 lbs [178g] | |||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified) | |||
| Power Consumption | 4.5W (Max) | |||
| Operation Temperature | 32°F ~ 104°F / 0°C ~ 40°C | |||
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C | |||
| Relative Humidity | 20~90% RH (non-condensing) | |||
| Recommended HDMI Cable | ||||
| Video Resolution | 8K60 | 4K60 | 4K30 | |
| HDMI Cable Length (HDMI IN / OUT) |
2m/6.6ft ~ 3m/10ft (Ultra HDMI 2.1) |
5m/16ft | 10m/33ft | |
| The use of “Premium High Speed HDMI” cables is highly recommended. | ||||
Resources
PACKAGE CONTENTS
- 1x 48Gbps HDMI eARC Audio to Amplifier Adapter
- 1x 5V/2A Multinational Power Supply
- 1x User Manual

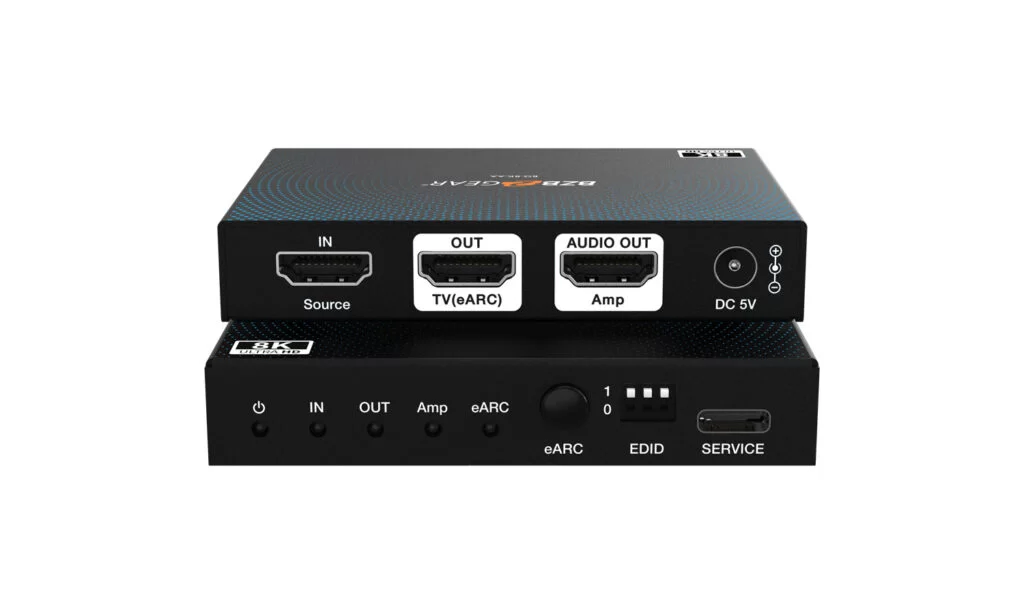

Interfaces
- Power LED: When the device is powered on, the red LED will be on.
- IN LED: When the input signal is detected, the green LED will be on.
- OUT LED: When the OUT port connects to a TV, the green LED will be on.
- Amp LED: When the AUDIO OUT port connects to an amplifier, the green LED will be on.
- eARC LED: On: The ARC/eARC function is turned on. CEC communication and ARC/eARC are working properly. Flashing: The ARC/eARC function is turned on. CEC communication and ARC/eARC are not working properly. Off: The ARC/eARC function is turned off.
-
eARC button: Press this button to enable or disable the eARC function.
-
EDID DIP switch: Use the DIP switch to set EDID.
-
SERVICE: Firmware update and debug port.
-
Source IN Port: HDMI signal input port, connected to HDMI source device such as DVD, PS5, or 8K computer host with an HDMI cable.
-
TV (eARC) OUT port: HDMI signal output port, connected to TV (ARC/eARC) with an HDMI cable. It can be used as an ARC/eARC audio channel when the ARC function is enabled.
-
Amp AUDIO OUT: HDMI audio output port, connected to an amplifier with an HDMI cable.
-
DC 5V: DC 5V/2A power input port.
