5-Port 10/100/1000 Mbps Gigabit Unmanaged POE Ethernet Switcher
Discontinued
Configure the Perfect Solution
Get Started
Overview

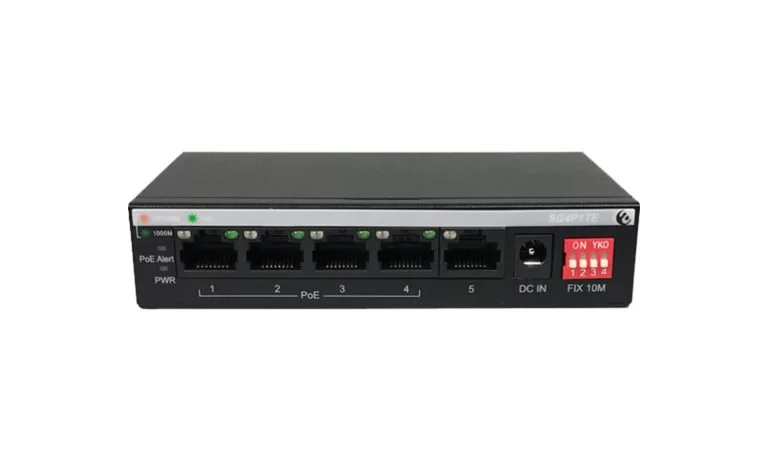

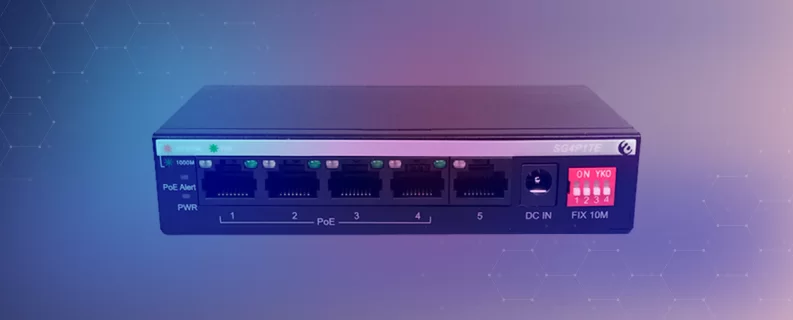

The BG-4P1TE is a 5-port gigabit 10/100/1000Base-T unmanaged Ethernet switch. This device supports 4 high power 802.3af/802.3at PoE+ ports with a total PoE budget of 60W. The equipped alert system notifies users when PoE Power passes 50W and is close to the power budget.
Each PoE+ port can be controlled manually to support either 10/100/1000Mbps at the standard Ethernet distance of 100m. Users can also set the switch to 10Mbps with the front panel dip switches to support range extension to a maximum of 180m (range dependent on cable quality).
Features
- Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at
- Support Link-on cable length power saving and link-down power saving
- N-way auto-negotiation
- Alert system notification when PoE Power passes 50w and is close to the power budget
- Dip switch to place selected port into Extended range mode at 10mbps
- Fanless Design
Tech Specifications
| Interface: | 5 x Gigabit Ethernet Ports (4-port x PoE+) Range Extend feature on PoE+ports |
| Range Extend: | Max 180m (dependent on cable quality) |
| MAC Address Table: | 2K |
| Switching Fabric: | 10 Gbps |
| Buffer memory: | 128KB |
| Jumbo Frame: | 9K |
| LED Display: | Power : Green LED - Light off: power off - Light on: power on PoE Alert : Green LED - Light off: within PoE Alert - Light on: over PoE Alert (50W) PoE : Green LED - Light off: PoE/PoE+ function not active - Light on: feeding power at PoE/PoE+ Ethernet Port: Amber/Green LED - Amber(Solid): 10/100Mbps Link - Green(Solid): 1000Mbps Link - Blinking: Activity is occurring |
| Power Supply: | External Power 55V/1.3A |
| PoE Power Budget: | 60W |
| PoE Alert: | 50W |
| Environmental Parameters | |
| Temperature Operating: | -40° ~ 70° C |
| Storage: | 0° ~ 40° C |
| Humidity: | 10% ~ 90% RH (non-condensing) |
| Certifications: | LVD , CE/FCC compliance |
| RoHS: | RoHS compliance |
| Dimentions | |
| Length x Width x Height: | 4.76 x 2.95 x 1.02 inch [121 x 75 x 26 mm] |
