4K UHD 18Gbps HDBaseT HDMI/MDP/KVM Wall Plate Transmitter & Receiver Kit up to 230ft

Configure the Perfect Solution
Get Started

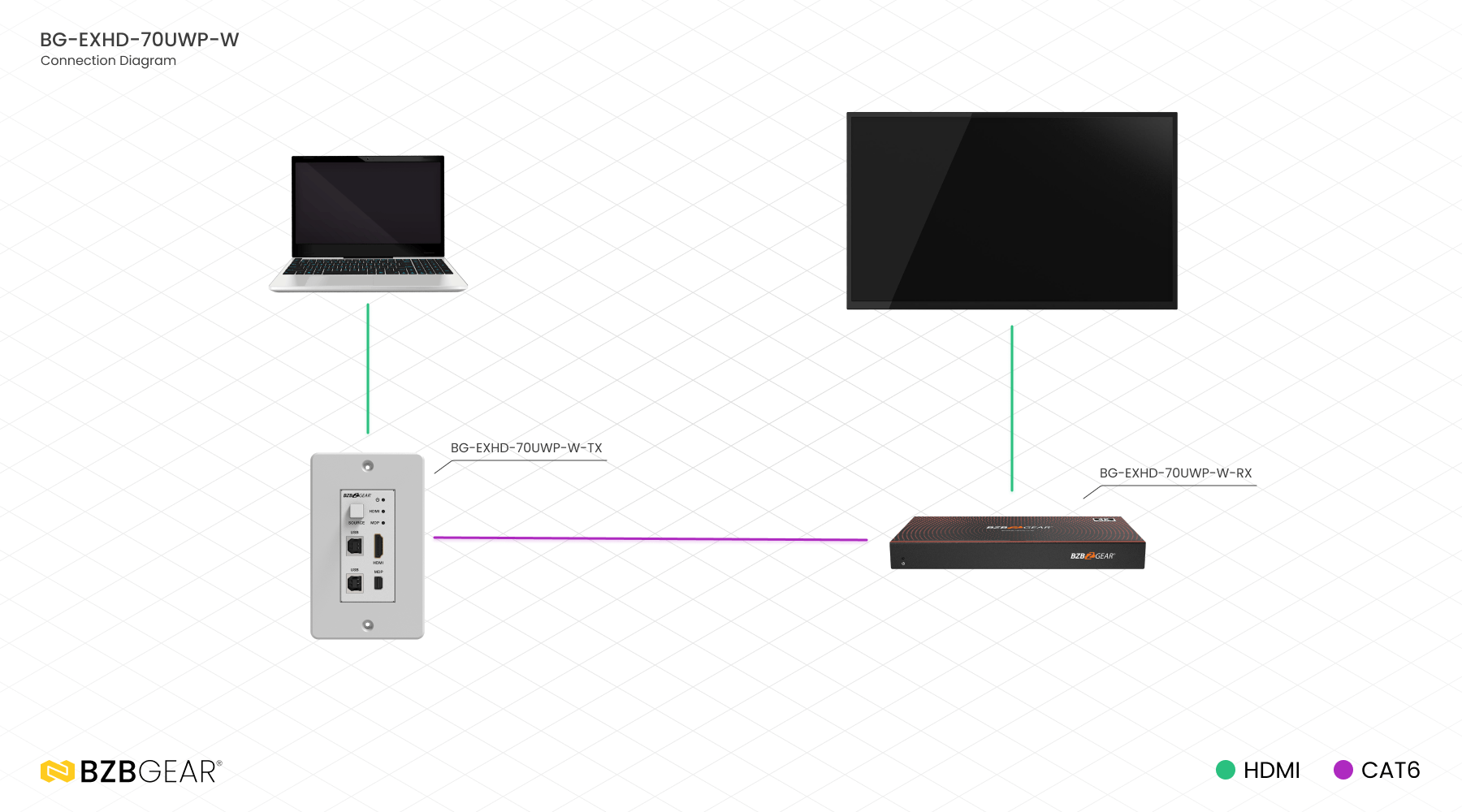

Overview

Introducing the BG-EXHD-70UWP-W, an innovative 18Gbps HDBaseT Wall Plate Kit designed for seamless connectivity and high-performance transmission in professional AV setups. This kit includes a Wall Plate Transmitter and an HDBaseT to HDMI Receiver, offering unparalleled versatility and reliability in signal distribution.

Designed to fit seamlessly into Decora-style wall plate openings, this kit features a sleek US one-gang enclosure. The Wall Plate Transmitter serves as a 2x1 switcher and HDBaseT transmitter, supporting HDMI and DisplayPort (DP) inputs while also integrating USB 2.0 KVM functionality.

Transmitter Overview

The BG-EXHD-70UWP-W Wall Plate Transmitter redefines signal distribution with its versatile functionality and robust design. Featuring HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a compliance, this transmitter seamlessly integrates with modern AV setups, supporting video resolutions up to 4K/UHD@60Hz with stunning clarity and color depth. Its compact US one-gang enclosure, designed for Decora-style wall plate openings, ensures a sleek and unobtrusive installation.

With USB 2.0 KVM functionality and automatic/manual input switching modes, users can effortlessly manage multiple source devices for a seamless AV experience. Whether extending video transmission up to 230ft (70m) for 1080P or 131ft (40m) for 4K via a single CAT6/6a/7 cable or supporting HDR10 and HDR10+ formats for enhanced visual immersion, this transmitter sets a new standard for performance and flexibility in professional AV environments.

Receiver Overview

Experience unparalleled versatility and reliability with the BG-EXHD-70UWP-W HDBaseT to HDMI Receiver. Engineered to complement the Wall Plate Transmitter, this receiver delivers exceptional signal quality and flexibility in AV installations. With support for HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards, it ensures seamless compatibility with modern AV equipment, enabling crisp and vibrant 4K/UHD@60Hz video resolution.

Its compact design and intuitive interface make installation and operation effortless, while features like POE support and USB connectivity enhance convenience and flexibility. Whether extending video transmission up to 230ft (70m) for 1080P or 131ft (40m) for 4K or supporting a wide range of audio formats for immersive sound experiences, this receiver is the ultimate solution for professional AV setups demanding uncompromising performance and reliability.

Features

  • Compliant
    Standards Compatibility
    Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards
  • bi_badge-4k
    Resolution Support
    Capable of displaying video resolutions up to 4K/UHD@60Hz 4:4:4
  • 3
    HDBaseT Output
    Extends video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
  • HDR Support
    HDR Support
    Supports HDR10 and HDR10+ formats
  • Audio Formats
    Audio Formats
    Supported audio formats include Dolby Atmos, TrueHD, Digital+, DTS X, HD Master Audio, HD High-Resolution Audio, and 5.1; PCM 2-8Ch
  • Plug-and-Play Setup
    POE Functionality
    Supports POE function (only from Receiver to Transmitter)

Tech Specifications

Technical
HDMI Compliance HDMI 2.0b, DisplayPort 1.2a
HDCP Compliance HDCP 2.2
Video Bandwidth 18 Gbps
Video Resolution 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth 8/10/12-bit
HDR HDR10, HDR10+
HDMI Audio Formats Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
Transmission Distance Max distance (1080p) : 230ft / 70m over CAT6/6a/7
Max distance (UHD/4K): 131ft / 40m over CAT6/6a/7
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Inputs:
1x HDMI Type A [19-pin female]
2x USB-B
1x miniDP [20-pin female]
Output:
1x HDBaseT Out [RJ45, 8-pin female]
Control:
1x Micro USB [Update port]
Receiver Inputs:
1x HDMI IN [Type A, 19-pin female]
1x HDBaseT IN [RJ45, 8-pin female]
Outputs:
1x HDMI OUT [Type A, 19-pin female]
1x AUDIO OUT [Phoenix jack]
Controls:
2x USB [USB A TYPE]
1x FW [Micro USB, Update port]
Mechanical
Housing Metal Enclosure
Color White
Dimensions (W x D x H) Wall plate:
1.31in x 2.6in x 2.7in [33.3mm  x 65.7mm  x 68.7mm]
Faceplate:
2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm]
Receiver:
7.9in x 3.9in x 0.91in [200mm x 98mm  x 23mm]
Weight Wall plate: 0.43 lbs [196g], Receiver: 1.1 lbs [511g]
Power Supply POE (only from Receiver to Transmitter)
Power Consumption Wall plate: 9W (Max), Receiver: 11W (Max)
OperatingTemperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)


Resources

Documents

PACKAGE CONTENTS

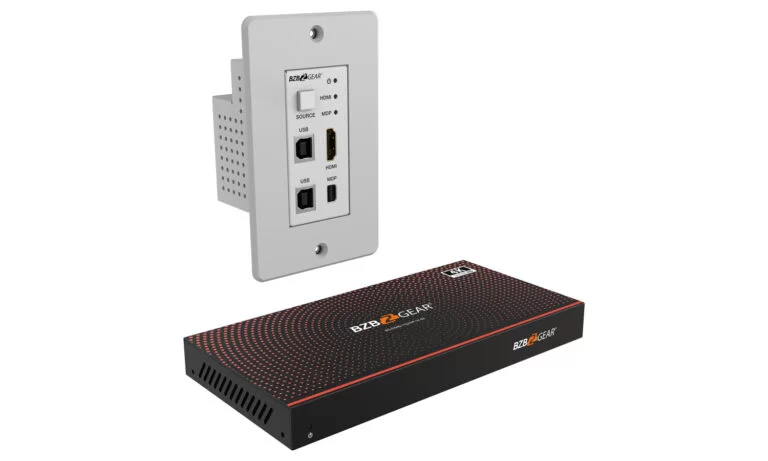

  • 1x 18Gbps HDBaseT 70M with MDP/HDMI & KVM Function Wall Plate Transmitter
  • 1x HDBaseT to HDMI receiver
  • 1x User Manual

Interfaces

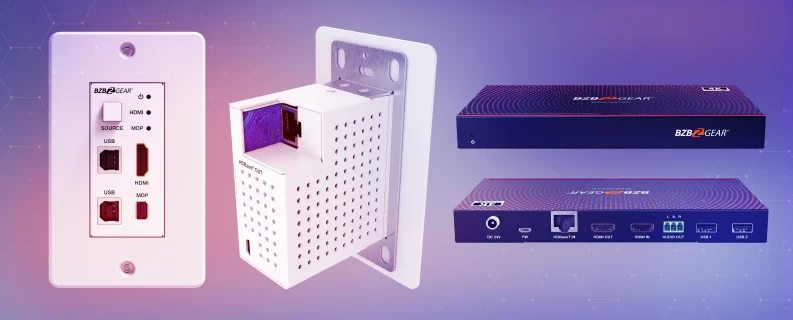

Interfaces image

    Transmitter

  1. Power LED: The power LED indicator will illuminate in green when the product is powered on, and red when the product is on standby.
  2. HDMI LED: When the HDMI input port is active and the HDMI signal is detected, the green LED will be on.
  3. MDP LED: When the MDP input port is active and MDP signal is detected, the green LED will be on.
  4. HDMI port: HDMI input port, connect to HDMI source device.
  5. MDP port: MDP signal input port.
  6. USB-B ports: Connect to the computer’s USB port. Used for KVM function.
  7. SOURCE button: Used to switch HDMI / MDP input signal.
  8. HDBaseT OUT: Connect to the HDBaseT IN port of Receiver with a CAT6/6a/7 cable.
  9. Micro-USB: Firmware update port.

    Receiver

  10. Power LED: When the product is powered on, the red LED indicator will be on.
  11. DC 24V: DC 24V power supply port.
  12. FW: Firmware update port.
  13. HDBaseT IN: Connect to the HDBaseT OUT port of Transmitter with a CAT6/6a/7 cable.
  14. HDMI OUT: HDMI output port, connect to HDMI display device.
  15. HDMI IN: HDMI input port, connect to HDMI source device.
  16. AUDIO OUT: Analog audio output port.
  17. USB 1 port: USB port for KVM function.
  18. USB 2 port: USB port for KVM function.
