12x12 8K UHD HDMI 2.1 Matrix Switcher with Audio De-Embedding (8K60, 4K120 4:4:4 10bit VRR/FVA/ALLM Support)
and engineering support
Overview
The BG-8K-1212MA 8K HDMI matrix switch is an excellent device for situations where you need to share up to twelve HDMI sources with up to twelve displays. It comes with twelve HDMI 2.1a inputs and twelve HDMI 2.1a outputs, allowing you to switch between multiple sources and display them on various screens at the same time, or select one source and display it on all screens simultaneously with the push of a button. The device supports 8K resolutions and various high-quality audio formats, ensuring professional-grade picture and audio quality.
Play Games at 4K@120Hz!
For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-1212MA can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 12x12 matrix switcher's support for 4K at 120Hz can help you get the most out of your favorite games.
Connectivity and Quality
The BG-8K-1212MA supports high resolutions up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz 4:4:4 with HDR. With 48 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.3 compliant. This device is also equipped with auto Downscaling on all outputs, ensuring compatibility with legacy displays.
The BG-8K-1212MA supports Digital S/PDIF and Balanced audio output formats.
| Video Resolution | 8K | 4K60 | 4K24 | 1080P |
| HDMI Cable Type | Ultra HDMI 2.1 | HDMI 2.0 | HDMI 1.4 | HDMI 1.4 |
| HDMI Cable Length (HDMI IN / OUT) | 3m/10ft | 8m/26ft | 12m/39ft | 15m/49ft |
The use of a “Premium High-Speed HDMI” cable is highly recommended.
BZBGEAR AWARDS
Features
-
![material-symbols_settings-input-component]()
12X12 RoutingFeatures 12 x HDMI inputs which can be independently routed to 12 x HDMI outputs -
![material-symbols_shield-lock-outline]()
HDCP CompliantHDMI 2.1a (48Gbps) HDCP 2.3 (and all earlier versions supported) -
![bi_badge-8k]()
8K and 4K@120HzUp to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4 and 4K@120Hz 4:4:4 8K to 4K or 8K/4K to1080p -
![FrameCorners]()
Auto ScalingDown Scaling on all outputs -
![solar_remote-controller-2-linear]()
Control OptionsControl via front panel, IR, RS-232, and TCP/IP (Web GUI) -
![ep_connection]()
EDID managementSeamless scaling for the best results
- HDR, HDR10, HDR10+, Dolby Vision pass-through VRR, ALLM, QMS, QFT, SBTM are supported
- Digital S/PDIF and Balanced audio output
Tech Specifications
| Technical | |
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 1200MHz/48Gbps |
| Video Resolution | Up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4 |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR Formats | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI In/Out: LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS High Res, DTS-HD Master Audio, DSD Optical Outputs: LPCM 2.0, Dolby, DTS 5.1 Balanced Analog Audio Outputs: LPCM 2.0 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input ports | 12x HDMI [Type A, 19-pin female] |
| Output ports | 12x HDMI [Type A, 19-pin female] 12x S/PDIF Optical 12x Balanced Stereo Audio [3.81mm, 5-pin Phoenix Connector] |
| Control ports | 1x TCP/IP [RJ45] 1x RS-232 [D-Sub 9] 1x IR EXT [3.5mm, Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no-condensing) |
Resources
PACKAGE CONTENTS
- 1x Main Unit (12x12 HDMI Matrix)
- 1x Remote control
- 1x Wide-Band IR Receiver cables
- 1x CD for user manual & Command list
- 1x 3 Pin Phoenix terminal plug

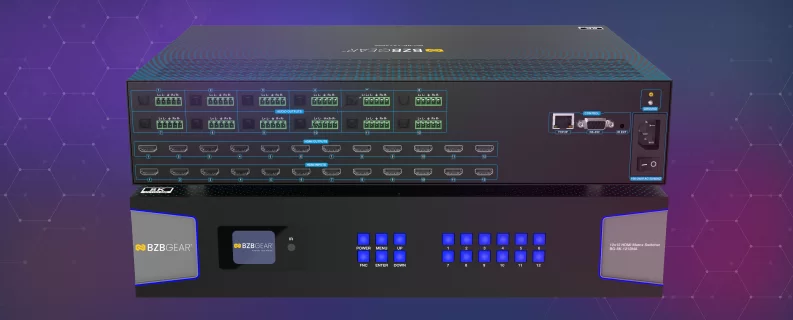

Interfaces
- HDMI IN: HDMI input 1~12.
- HDMI OUT: HDMI output 1~12.
- OPTICAL: Optical fiber audio output port.
- Balanced Audio: 5-Pin phoenix stereo audio output.
- TCP/IP: RJ45 ethernet connection for network control.
- RS-232: D-sub 9-pin connector for RS-232 commands.
- IR Ext: 3.5mm IR receiver extension port.
- Ground: Ground the product housing.
- Power: AC 100 - 240V 50/60Hz Power input.
- OLED Display: Displays matrix status, power indicator, and IR receiver.
- Menu Navigation Buttons: Menu, Enter, Up, Down, Power, Fnc.
- Input/Output: Input/Output buttons 1~12.
