What are BZBGEAR Integration Tools?
BZBGEAR Integration Tools are essential diagnostic and testing solutions built for AV professionals. Designed to streamline installations and ensure system reliability, these tools are used to verify cabling, validate signal compatibility, and troubleshoot HDMI and SDI connections across a wide range of AV environments.
At the heart of our lineup are advanced test pattern generators and signal analyzers - with options supporting cutting-edge formats like 8K@60Hz, 4K@120Hz, HDR10, and HDMI 2.1. These portable, rechargeable units offer precise testing capabilities for future-proof AV workflows, including gaming, broadcast, and high-end commercial installations. Whether you're preparing for a large-scale deployment or servicing a single endpoint, BZBGEAR's tools provide the clarity and accuracy you need on-site or in the field.
Key Integration and Testing Equipment
Applications
Scenario:
- An AV installer is deploying a 4K digital signage system and needs to ensure all HDMI cabling and displays are functioning before the system goes live.
Solutions:
- BG-AVTPG-KIT for generating 4K test patterns.
- BG-AVTPG-MINI for portable HDMI 2.0 verification.
- BG-SDITPG-G2 for SDI signal path checks.
Pictured below is a setup using the BG-AVTPG-KIT. The technician connects the unit to various displays, verifying proper video reception, EDID handshake, and HDR compatibility during the installation process.
Scenario:
- A broadcast engineer needs to confirm signal integrity between SDI cameras and video switchers ahead of a live event.
Solutions:
- BG-SDITPG-G2 to simulate SDI video signals up to 12G.
- Compatible with formats from SD to 4K@60Hz.
- On-device screen and controls for field adjustments.

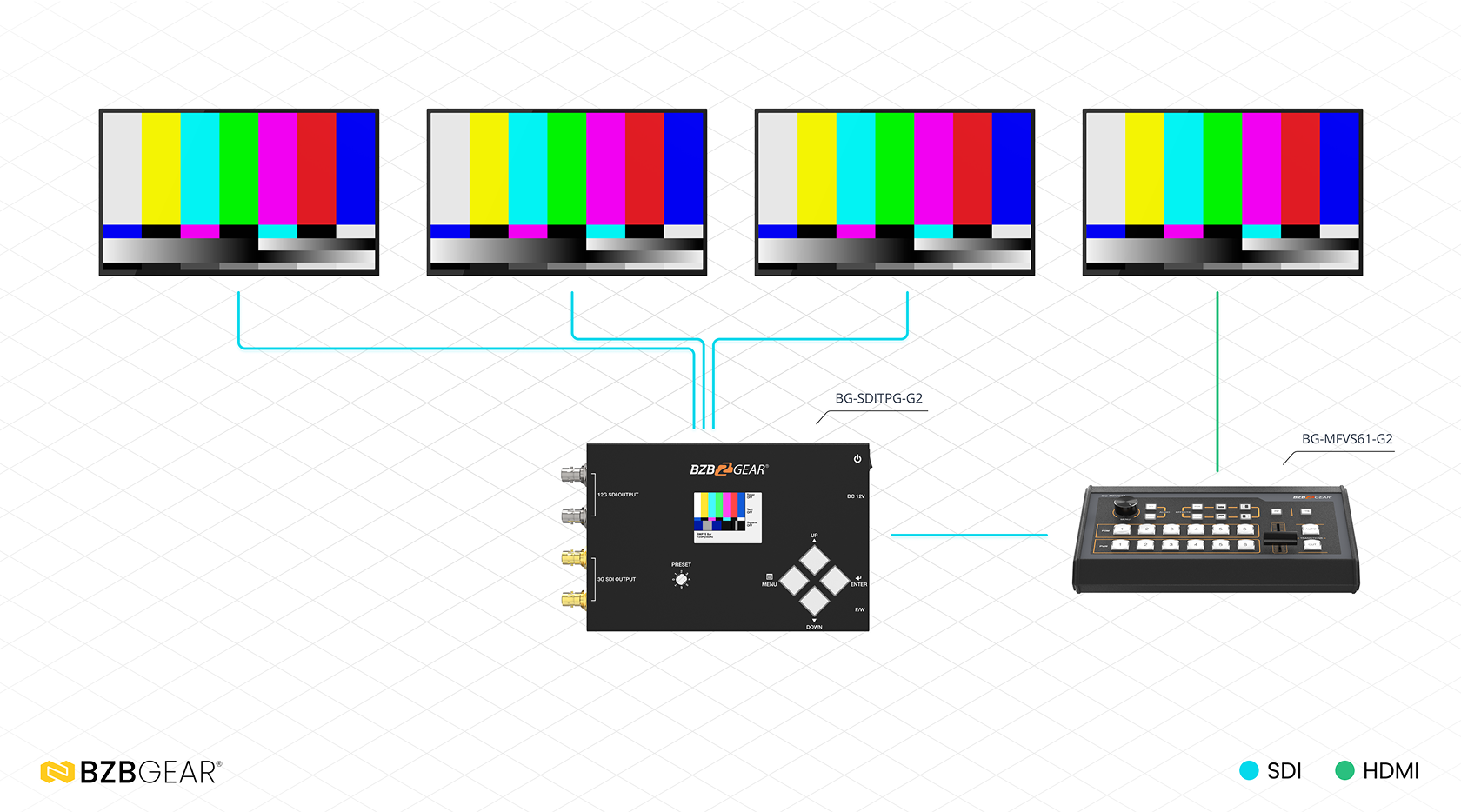

This diagram demonstrates how the BG-SDITPG-G2 can be integrated into a broadcast workflow to verify that video production switchers, SDI cables, and displays are operating correctly and can receive the desired SDI video formats - prior to finalizing the setup with cameras and other sources.
Scenario:
- A tech team is installing 8K-capable displays in a high-end gaming lounge and needs to validate 8K@60Hz performance across sources and screens.
Solutions:
- BG-AVTPG-8K or BG-AVTPG-MINI-G2 for HDMI 2.1 test signal generation.
- HDR pattern testing and EDID verification.
- Touch panel or USB control with portable battery operation.

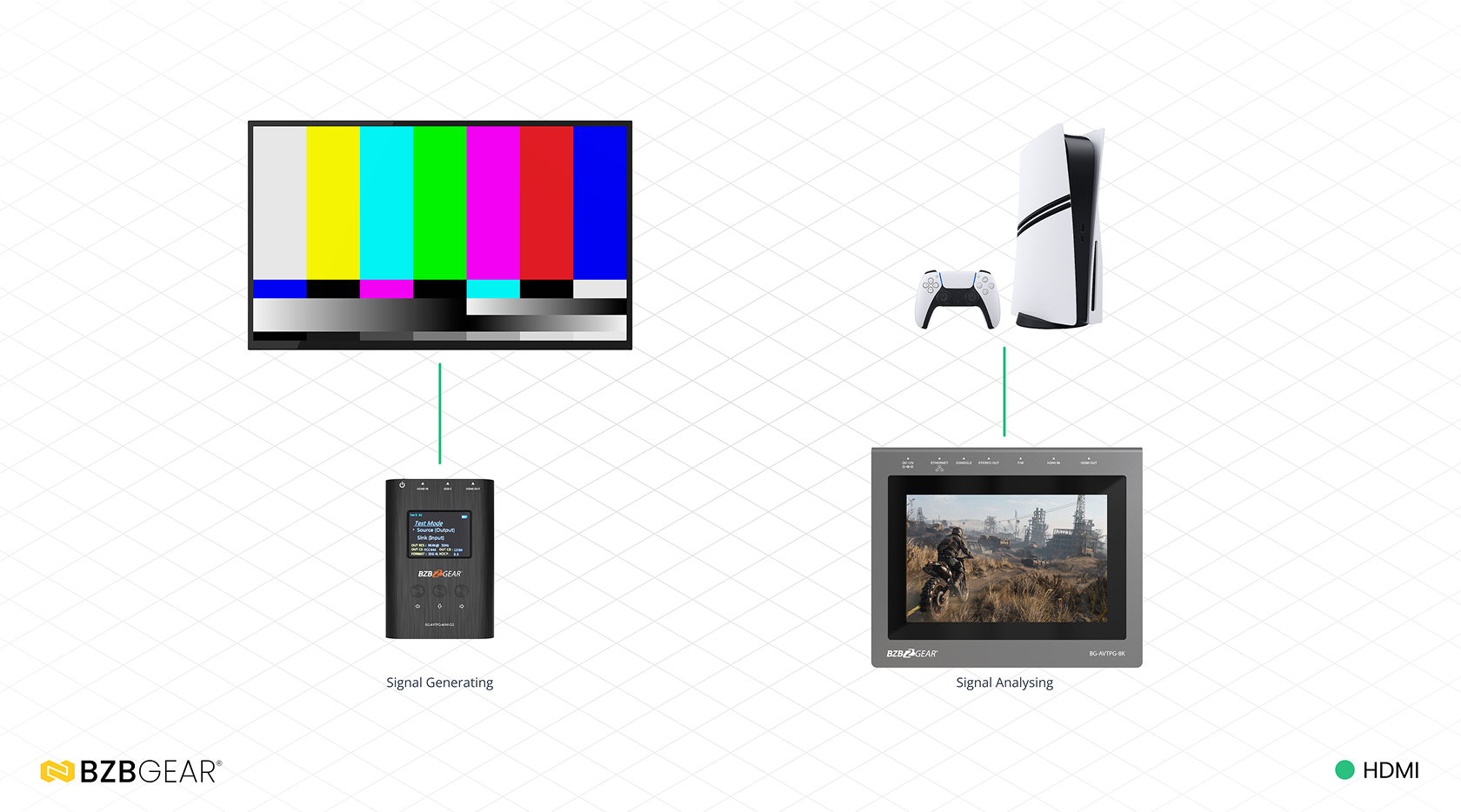

Pictured below is a high-resolution testing environment using BG-AVTPG-8K. Installers validate full-bandwidth HDMI 2.1 signal chains, ensuring that the signal flows correctly from the source through any splitters or extenders. They check the image quality in both 8K and high frame rate 4K modes. The BG-AVTPG-8K is used to test the signal when the gaming console is directly connected, while the BG-AVTPG-MINI-G2 outputs an 8K or 4K at 120Hz to the display to confirm compatibility before completing the setup.
4K vs 8K Test Pattern
Generators
| Feature | 4K Test Pattern Generators | 8K Test Pattern Generators |
|---|---|---|
| Max Resolution Output | Up to 4K@60Hz | Up to 8K@60Hz, 4K@120Hz |
| Color Depth & Chroma | 4:4:4 8-bit / 4:2:0 16-bit HDR | 4:2:0 8/10-bit, 4:4:4 8/10-bit HDR |
| HDMI Version | HDMI 2.0 | HDMI 2.1 |
| Ideal For | Legacy 4K equipment, conference rooms, AV installations | 8K-capable displays, gaming, broadcast & future-proofing |
| HDR Support | Yes | Yes (with wider compatibility and bit-depth) |
| Control Options | Device buttons, USB mouse, Ethernet | USB mouse, Ethernet, touch panel |
| HDCP Support | 1.4, 2.2 | 1.4, 2.2, 2.3 |
BZBGEAR gives you confidence during testing - whether you’re calibrating modern 4K signage or certifying ultra-high-resolution 8K workflows.
