9x9 4K UHD Seamless HDMI Matrix Switcher/Video Wall Processor/Multiviewer over Cat5/6/7 with 9 Receivers Kit

NEW
Shipping Q1 2024
Configure the Perfect Solution
Get Started

Overview

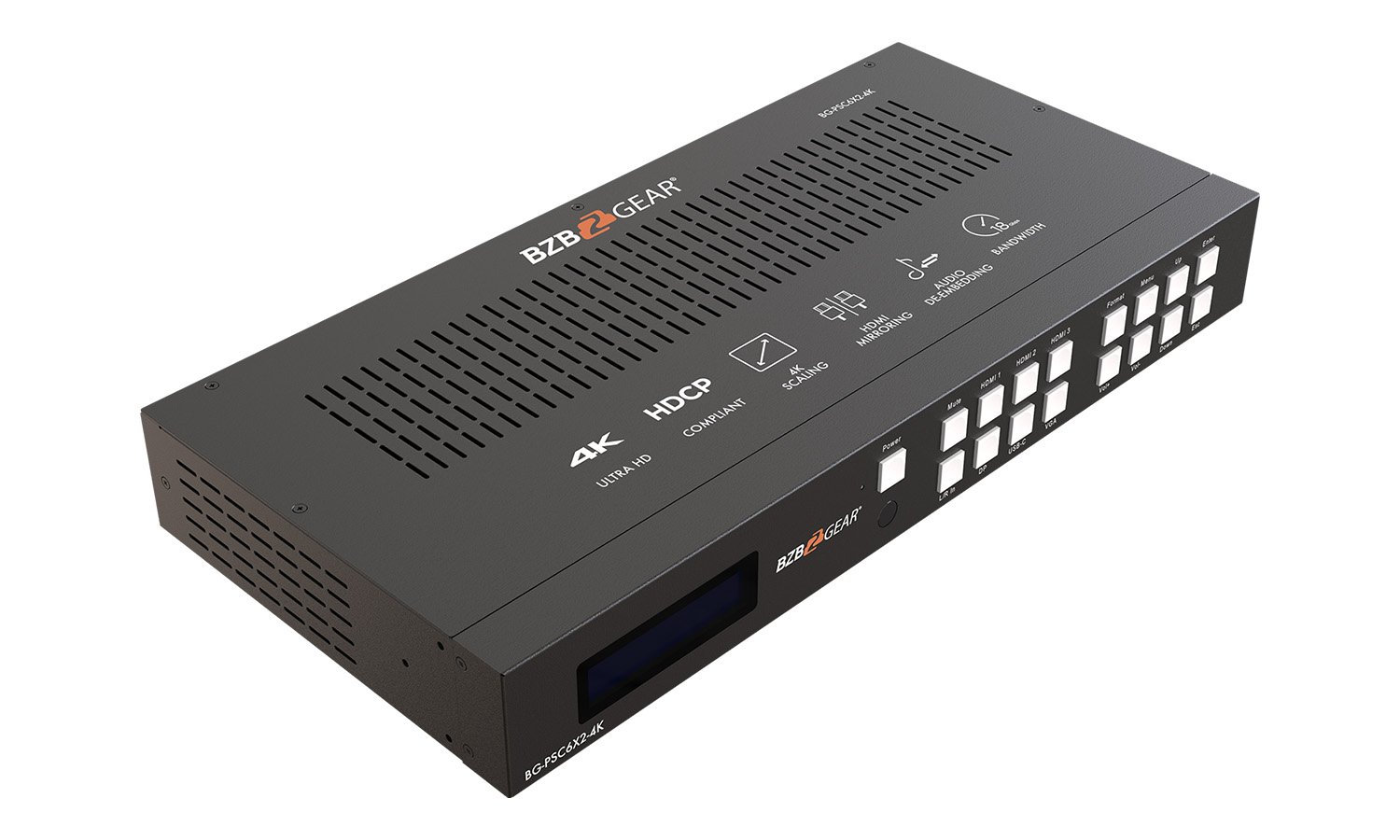

The BG-4K-VP99PRO is a highly versatile HDMI matrix switcher/video wall processor/ multiviewer, perfect for professional AV installations. Offering exceptional connectivity with 9 HDMI inputs, outputs, and loopouts, it extends HDMI signals up to 70 meters over CAT5. With support for resolutions up to 4K60Hz 4:4:4 and advanced video processing, it enables seamless switching between video sources, 3x3 video wall creation, and the display of up to 9 sources on one screen. Balanced audio extraction and multiple control options ensure an immersive experience, making it ideal for presentations and conferences. This award-winning product offers a future-proof design with HDCP compliance and firmware updates via a micro-USB port, making it a comprehensive solution for professional AV setups.

Unparalleled Connectivity and Quality

The BG-4K-VP99PRO offers an impressive array of connectivity options to cater to your diverse needs. With 9 HDMI inputs, 9 HDMI loop outs, 9 HDMI outputs, and 9 DSC outputs featuring Power over Cable (POC) support, seamless integration with multiple sources, displays, and audio systems is guaranteed. Additionally, for large-scale AV projects and installations, all HDMI sources can be extended up to 70m(229ft) over CAT5/6/7.

Delivering stunning visuals with exceptional clarity and color reproduction, the BG-4K-VP99PRO supports resolutions up to 4K60Hz 4:4:4. Its impressive bandwidth of 18Gbps ensures the smooth transmission of high-quality content.

Seamless Connectivity and Future-Proof Design

Built-in EDID settings optimize communication between your source devices and displays, ensuring a seamless and reliable connection. HDCP 2.2/1.4 compliance guarantees compatibility with a wide range of devices while protecting your content against unauthorized duplication. Stay up-to-date with the latest features and improvements through the convenient micro-USB port, enabling firmware updates and future enhancements. Enjoy precise and visually appealing video wall configurations with screen edge adjustments. Expand your creative possibilities with 180° rotation and mirror functions offered by the BG-4K-VP99PRO.

Advanced Video Processing Capabilities

The BG-4K-VP99PRO offers a range of advanced video processing capabilities, including video signal seamless switching, video wall creation, multiview, and preset settings. Seamlessly switch between video sources for uninterrupted viewing experiences. Create captivating video walls with a maximum configuration of 3x3 screens, allowing you to showcase content across a larger canvas. Display up to 9 sources on a single screen. Save and recall your preferred configurations effortlessly with the matrix switcher’s support for preset settings.

Immersive Audio and User-Friendly Control

Experience immersive audio alongside stunning visuals with the BG-4K-VP99PRO's balanced audio extraction support. Ideal for professional presentations, conferences, and professional AV installations, this feature ensures a complete sensory experience.

Installation and control are made convenient and flexible with multiple options. Take advantage of panel buttons, IR remote control, TCP/IP control, RS232 commands, and the BG-SWITCH-CONTROL app, a free BZBGEAR proprietary matrix switcher control software for Windows, Mac, iOS, and Android to easily manage and adjust the matrix switcher’s settings to suit your requirements.

BZBGEAR AWARDS

BZBGEAR has a number of award winning products from past tradeshow events. These award winning products were nominated and judged against other nominees. See what makes our award winning products so extraordinary!

Features

  • Signal Extension
    Extent your HDMI signals up to 70m (229ft) over CAT5
  • Audio Matrixing
    Analog audio embedded & extraction - the audio can be independently routed
  • PoC
    Power over Cable enables devices to be powered and centralized via a single cable connection
  • Multiview Mode
    Display 9 different sources on the same screen
  • Video Wall Mode
    Supports up to a 3x3 video wall - supports cascading
  • 4K UHD
    4K@30Hz
  • Loop out
  • HDCP 2.2/1.4
  • Seamless Matrix Mode: 9 in 9 out no switching delay and no signal loss
  • Advanced EDID management
  • Control via Panel button, Remote, RS232, TCP/IP Control
  • Video wall cascading
  • Micro-USB for firmware updates
  • Balanced audio extraction

Tech Specifications

HDMI Input 9x HDMI In
HDMI Output 9x HDMI loopout, 9x HDMI Out
Audio output Analog (Balanced audio)
Video Format Supported 4K@30Hz/1080P/720P/576P/480P/480i
HDCP Compliant HDCP 2.2 and HDCP 1.4
Control way Panel button/Remote/TCP/IP/RS232
Audio Format Supported PCM, Dolby 5.1/7.1, DTS 5.1/7.1 digital audio
USB Firmware update
Dimensions (L x W x H) 1.5U Rack Design 21.5 x 17.5 x 2.75in [546 x 445 x 70mm]
Ship Pack Dimensions (L x W x H) 27.5 x 22 x 6.3in [700 x 560 x 160mm]
Mass (Main Unit) 12.1 lbs [5.48 kg]
Ship Pack Weight 37 lbs [16.78 kg]
Operating Temperature Range 23 to +104°F / -5 to +40°C
Storage Temperature Range -14 to +140°F / -10 to +60°C
Operating Humidity Range 5 to 90% RH (no condensation)

Resources

PACKAGE CONTENTS

  • 1x Main Unit
  • 1x Power Adapter DC24V4A
  • 1x Power Adapter DC12V3A
  • 1x Remote Controller
  • 1x Mounting ear kit
  • 1x IR-TX & IR-RX cable kit
  • 1x Disk (User manual; Update software; Command list)

Interfaces

  1. IR In: Connect the IR receiver extension cable. IR follows video matrix routing.
  2. IR Out: Connect the IR blaster extension cable. IR follows video matrix routing.
  3. Analog Out: 3.5mm stereo mini for audio extraction.
  4. FW: Micro USB for firmware updates.
  5. Control Connections: 3-Pin Phoenix RS232 for analog control and RJ45/LAN for IP based control and internet connection.
  6. HDMI Input and Loopouts: 9x HDMI 2.0 inputs and 9x HDMI loopouts for local source viewing.
  7. HDMI Output and DSC Extension ports: 9x HDMI 2.0 outputs and 9x DSC LAN extension ports that provide PoC power to receiver units.
  8. DC Power Inputs: 24V 4A (top) powers the receiver, 12V 3A provides PoC power for the receivers.
  9. LED Display: Shows onscreen menu and current matrix routing.
  10. IR Remote Window and LED Indicators: Receives IR remote commands and LED lights display current command status.
  11. Output Select Buttons 1 – 9: Press to select an output whose source you would like to change then select and Input.
  12. Input Select Buttons 1 – 9: Press and select an output first and then press and select an input to route to the previously selected output.
  13. Menu Control Buttons: Menu, Preset, Up, Down, Lock, and Enter are used to navigate the on-screen menu/LED display menu options and manage/recall preset configurations.
  1. DC Power Input (Receiver): 12V DC power input for receiver.
  2. IR In (Receiver): Connect the IR receiver extension cable. IR follows video matrix routing.
  3. IR Out (Receiver): Connect the IR blaster extension cable. IR follows video matrix routing.
  4. RS232 (Receiver): 3-Pin Phoenix for RS232 control command passthrough.
  5. Cat5e/6 (Receiver): LAN connection to base unit for signal extension and PoC power.
  6. Output (Receiver): HDMI 2.0 output for audio and video.
  7. Audio Out (Receiver): 3.5mm stereo mini for audio extraction.
  8. FW (Receiver): Micro USB for firmware updates.
