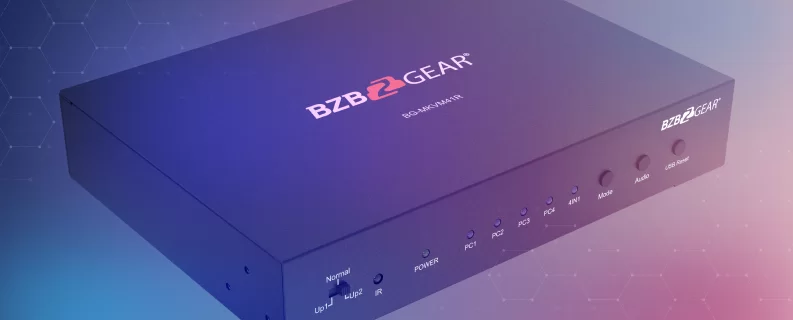

4X1 1080P Full HD HDMI/USB 2.0 Seamless Quad KVM Multiviewer

MSRP: $399.00

MSRP $399

3
Overview

This seamless-switching quad KVM multiviewer is a great choice for anyone looking for an easy way to control four separate devices on one screen with one set of peripherals. With one mouse and one keyboard, a user can control up to four PCs in quad-view simply by hovering the mouse over the desktop of the computer they’d like to control on the screen to instantaneously activate control over that machine.

The BG-MKVM41R can help create a productivity enhanced workstation and also enables several PCs to share a printer, camera, or other peripherals via two USB 2.0 ports.

Connectivity

With four HDMI/USB 2.0 PC HOST ports and one HDMI output, connecting four devices and displaying them on one screen in quad-view is simple. They can also be shown in full screen and switched between via different control methods. The BG-MKVM41R can support HDMI output resolutions up to [email protected] This device is compliant with HDMI 1.3a and HDCP 1.2. The device can also be controlled via a RS-232 connection.

The ability to display and control four separate devices on one screen offers unparalleled productivity and versatility for anyone looking to make the most out of a device management workstation.

Control

Users can easily switch between displays using mouse and keyboard hot keys. Front panel buttons on the switcher are also available, as well as an IR remote controller. With the two USB 2.0 device ports, up to four computers can share the same printer, camera, or other peripherals. An audio push button is also available that allows users to select the audio from the BG-MKVM41R’s HDMI input sources while using quad-view.

The BG-MKVM41R’s superior control over multiple devices makes it a great choice for multi-computer workstations in conference rooms, industrial centers, and surveillance applications.



Features
Multi-Viewer
View up to 4 computers or devices on one screen simultaneously
Seamless KVM Control
Control connected devices in quad-view by merely hovering your mouse over the desired screen
Compliant
HDMI 1.3a and HDCP 1.2 compliant
Full HD
Supports [email protected] for crystal clear images
USB 2.0
Supports up to 4 USB peripherals to share between connected device
Compatible
Compatible with Mac OS and Windows
  • Control with mouse, keyboard, hot keys, front panel button, RS232, or IR control
  • Supports multiple output resolutions
  • Maximum resolution of [email protected] for crystal clear images


Specifications
Signal Inputs/Output
Maximum Single Link Range [email protected]
HDMI Input/Output Connector Type A 19 pin
Operating Frequency
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 2.25Gbps
Resolutions
Input Resolution 480i60Hz, 480p60Hz, 576i50Hz, 576p50Hz, 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz
Output Resolution 720p, 1080p
Mechanical Data
Chassis Material Metal
Color Black
Environmental
Operating Temperature 32°F to +158°F / 0°C to +70°C
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature 14°F to 176°F / -10°C to +80°C
Storage Humidity 5% to 90% RH (no condensation)
Power Requirement
External Power Supply 12V [email protected]
Power Consumption (max) 24W
Regulatory Approvals
Main Unit FCC, CE
Power Supply  UL, CE, FC C, REACH, ROHS
MORE / LESS SPECS

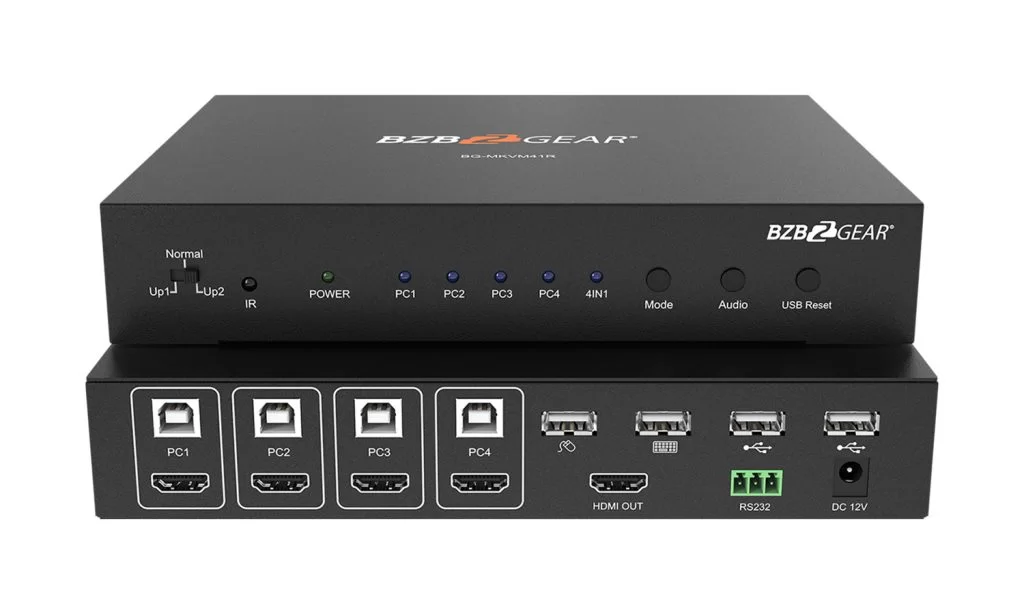

Interface
1.
USB 2.0 Type B Inputs (PC1-PC4): Connect to USB 2.0 ports of 4 PCs respectively.
2.
HDMI Inputs (PC1-PC4): Connect to HDMI ports of 4 PCs respectively.
3.
USB 2.0 Type A: Connect the keyboard and mouse.
4.
USB 2.0 Type A: Provides 2 additional USB 2.0 sharing ports to connect USB 2.0 devices (such as USB Hard Disk, Printer, etc).
5.
HDMI Output: Connect to a display to view the signal sources.
6.
RS-232: Upgrade firmware.
7.
DC 12V: Plug the 12V DC power supply into the unit and connect the adapter to the AC wall outlet.
8.
Update function select switch: Normal: Normal use
Up_1: Upgrade data for MCU_1 via RS232
Up_2: Upgrade data for MCU_2 via RS232.
9.
IR: Remote control receiver window.
10.
Power LED: The blue LED illuminates when the device is connected to the power supply.
11.
PC1-PC4 LED: Input LED - Indicate which input is selected.
12.
4IN1 LED: Indicates 4IN1 mode is selected.
13.
Mode Button: Press this button to select the input.
14.
Audio Button: In the 4IN1 mode, press this button to select the audio from the input sources.
15.
Reset Button: Press this button to reset the KVM switch.

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources
Manual
Diagram
Product Brochure



Package Contents
① 1x BG-MKVM41R 4x1
② 1x User Manual
③ 1x 12V/DC, 2A Power Supply
④ 1x Remote Control
⑤ 2x L shape stand feet
⑥ 1x Phoenix plugs for RS232 cable termination
⑦ 6x Screw
