USB 2.0 SR Extender transfers signals over a single CAT-5 Cable up to 164ft in Distance
MSRP: $199.00

MSRP $199.00

2

Description

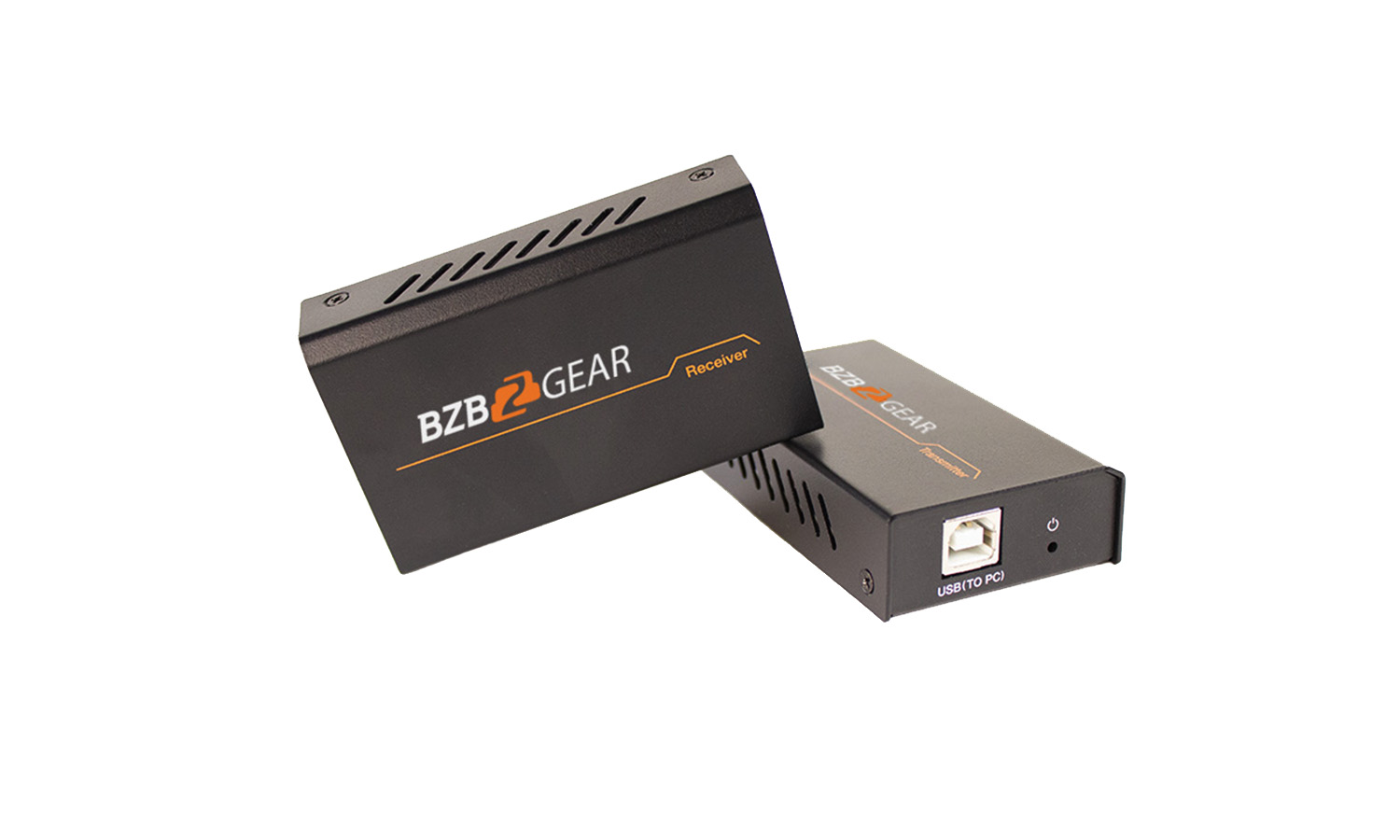

The BG-USB2.0-SR is a USB 2.0 Extender transfers USB signals up to 50 meters/164ft distance via Cat5e/6 cable.  Plug your PC into the transmitter using the USB-B port for extension Power is supplied on the Receiver side using the included 5V/1A power port. This is necessary to meet the requirements for certain peripheral devices such as Keyboards, Mouse, Webcams and Disk drives utilizing the USB-A ports on the Receiver unit demanding more power for proper operation. Note, connecting USB Hubs limit transmissions to 130ft/40M due to bandwidth separation of multiple peripherals.
The device can be generally useful for long separation signal transmission between a PC and USB device. Plug and play friendly, no drive, or setting the establishment required.

Additional information

Weight 2 lbs
Dimensions 23 × 8 × 4 in

Specifications

Technical
USB protocol USB 2.0
Transmission rate 50M (Note: The transmission distance can only up to 40

meters for some USB 2.0 Hub)

ESD Protection Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connections

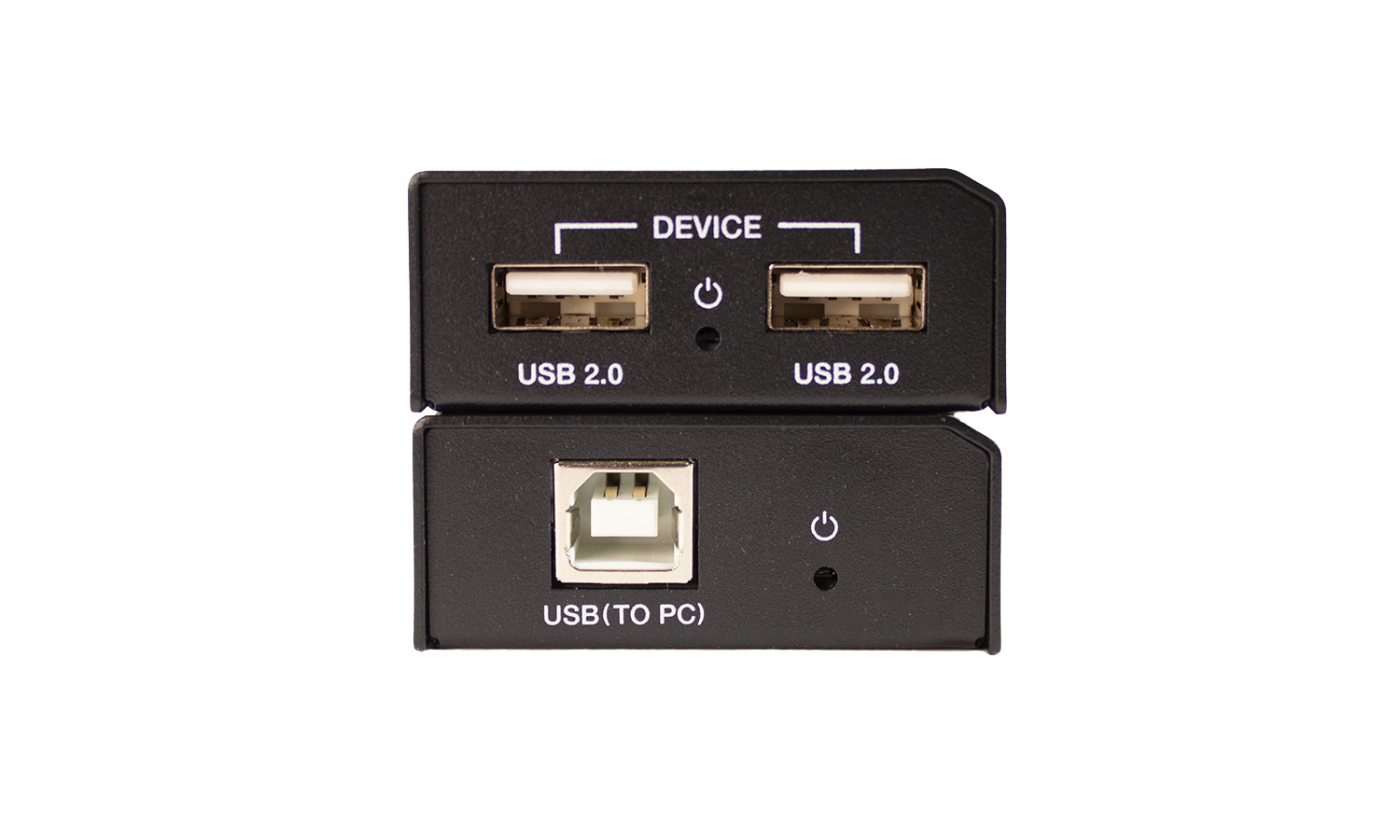

Transmitter Input port:   1×USB [USB-B, female]

Output port: 1×CAT [RJ45, female]

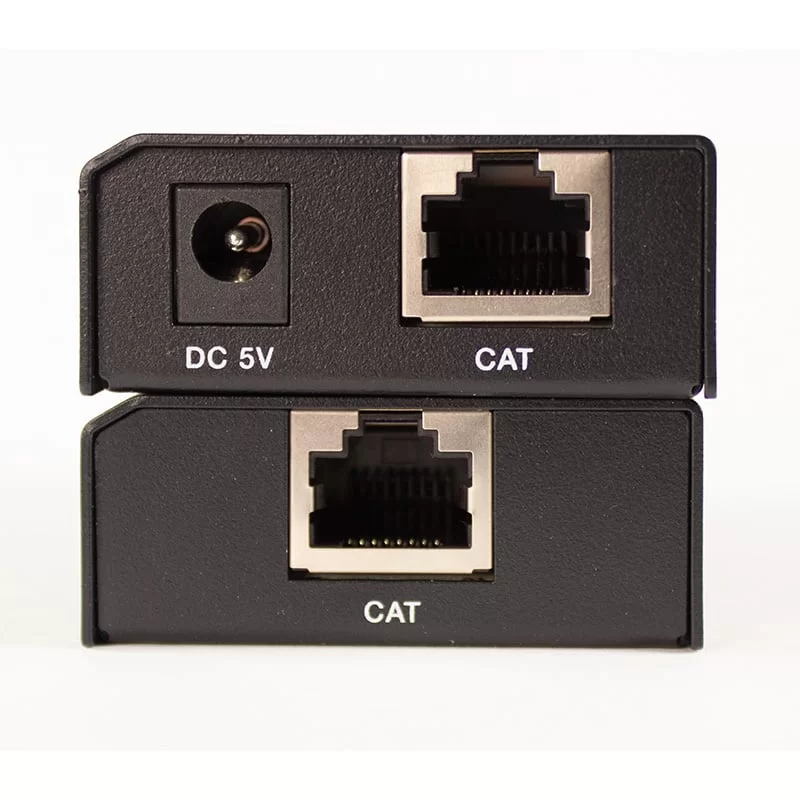

Receiver Input port:   1×CAT [RJ45, female]

Output port: 2×USB [USB-A, female]

Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H)
Weight Transmitter / Receiver: 100g
Power Supply Input: AC100~240V 50/60Hz

Output: DC 5V/1A

Power Consumption Transmitter: 0.7W, Receiver: 1W
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)

Resources

Download Manual - Click Icon Below

Download Manual

Package Contents

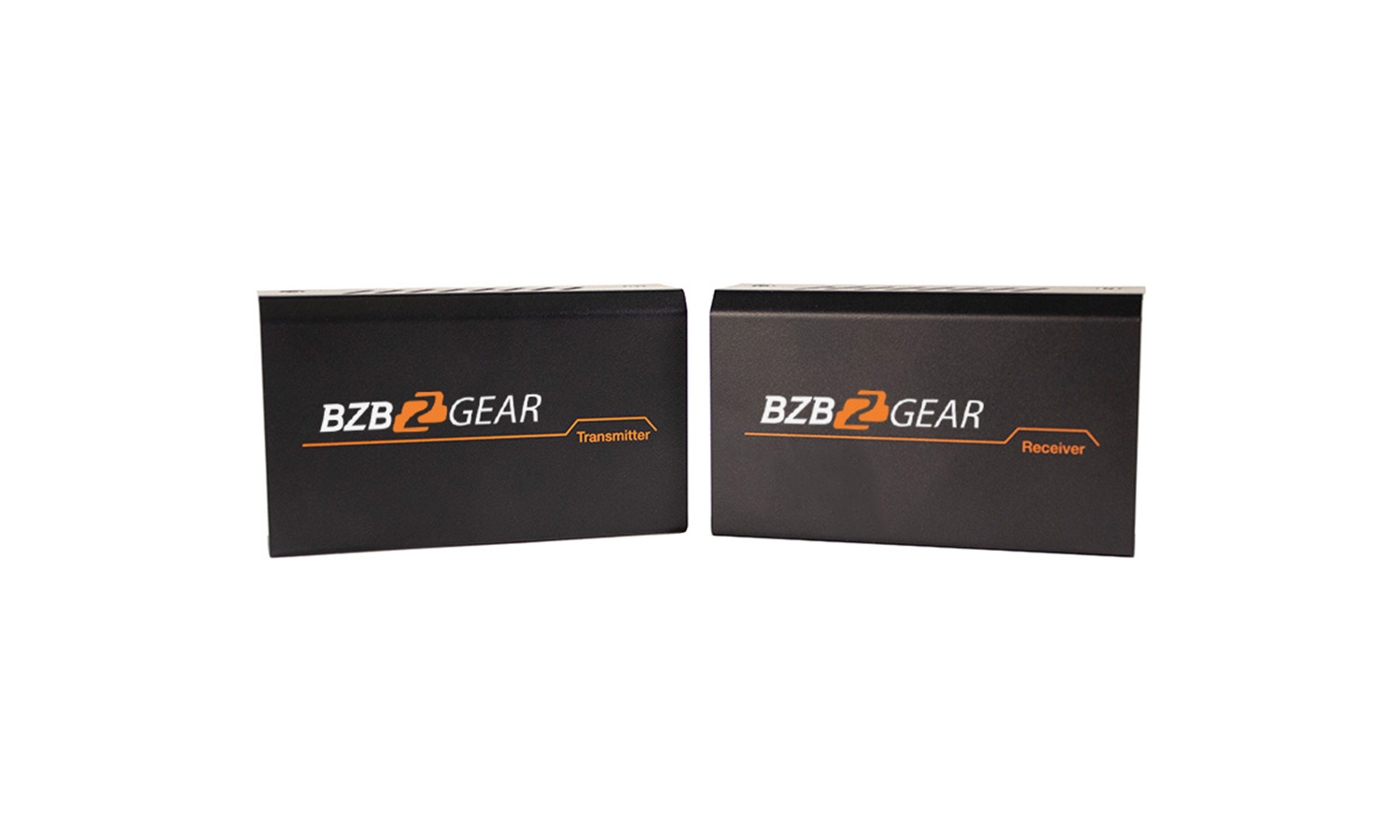

① 1× USB 2.0 Extender (Transmitter)

② 1× USB 2.0 Extender (Receiver)

③ 1× USB cable (USB-B male head to USB-A male head, one meter )

④ 1× 5V/1A Power Adapter

⑤ 1× User Manual

Overview

The BG-USB2.0-SR is a USB 2.0 Extender transfers USB signals up to 50 meters/164ft distance via Cat5e/6 cable.  Plug your PC into the transmitter using the USB-B port for extension Power is supplied on the Receiver side using the included 5V/1A power port. This is necessary to meet the requirements for certain peripheral devices such as Keyboards, Mouse, Webcams and Disk drives utilizing the USB-A ports on the Receiver unit demanding more power for proper operation. Note, connecting USB Hubs limit transmissions to 130ft/40M due to bandwidth separation of multiple peripherals.
The device can be generally useful for long separation signal transmission between a PC and USB device. Plug and play friendly, no drive, or setting the establishment required.



Features
  • Supports USB 2.0 protocol, transmission rate up to 480Mbps
  • Supports extend distance up to 50 meters /164ft via CAT 5e/6 cable (Note: The transmission distance can only up to 40 meters / 131.2ft for some USB 2.0 Hub)
  • Supports one USB-B port input on the Transmitter
  • Supports two USB 2.0 ports output on the Receiver
  • Receiver is powered supply by connecting 5V/1A power adapter (Must use a power supply on the Receiver unit for proper operation of peripherals)
  • Simple plug and play, no drive and setting installation required
  • Compact design for easy and flexible installation


Specifications
Technical
USB protocol USB 2.0
Transmission rate 50M (Note: The transmission distance can only up to 40 meters for some USB 2.0 Hub)
ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

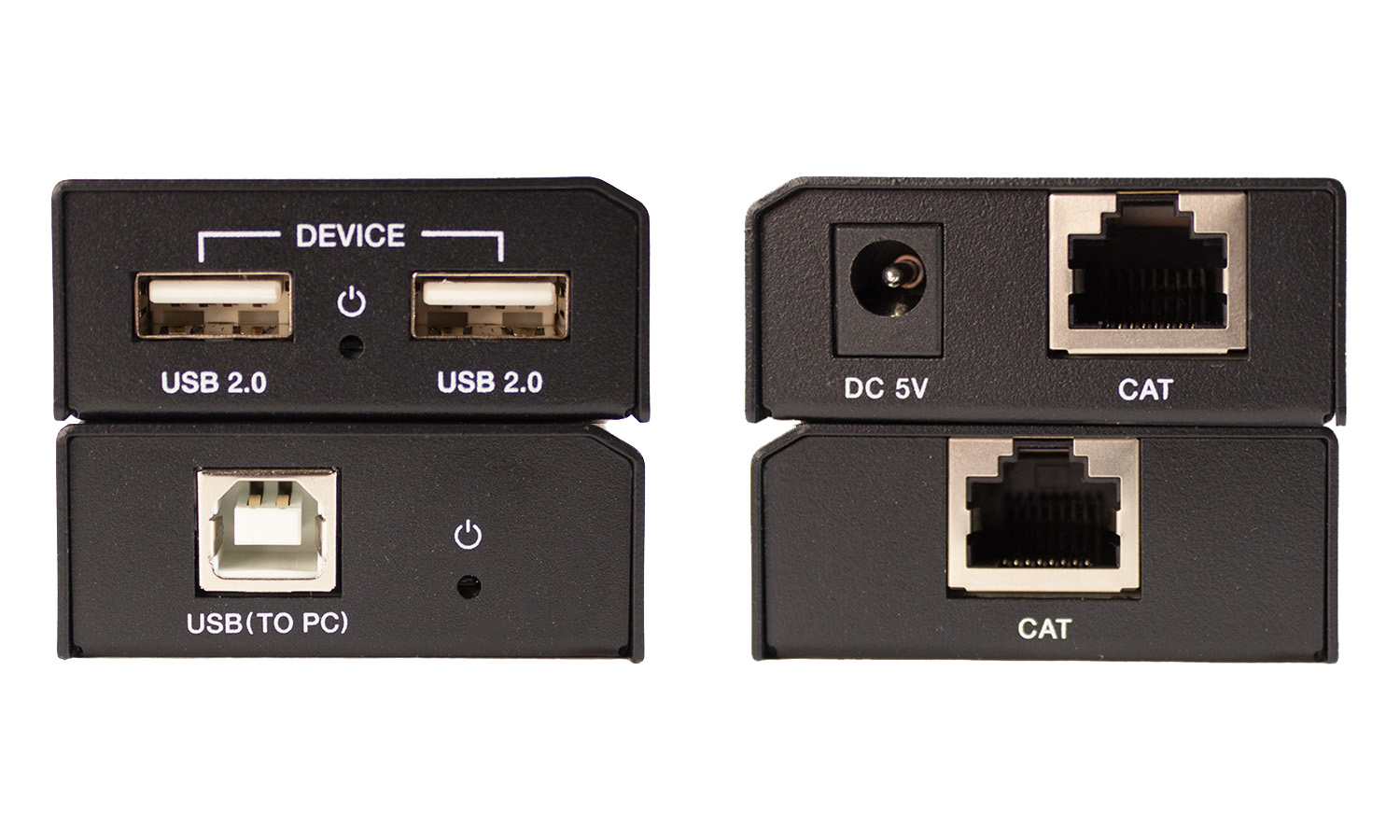

Connections
Transmitter Input port:   1×USB [USB-B, female] Output port: 1×CAT [RJ45, female]
Receiver Input port:   1×CAT [RJ45, female] Output port: 2×USB [USB-A, female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 82mm (W)×49mm (D)×20mm (H)
Weight Transmitter / Receiver: 100g
Power Supply Input: AC100~240V 50/60Hz Output: DC 5V/1A
Power Consumption Transmitter: 0.7W, Receiver: 1W
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (non-condensing)
MORE / LESS SPECS

Interface

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources



Package Contents
① 1xUSB 2.0 Extender (Transmitter)
② 1xUSB 2.0 Extender (Receiver)
③ 1xUSB cable (USB-B male head to USB-A male head, one meter)
④ 1x5V/1A Power Adapter
⑤ 1xUser Manual
