The BG-UHD-SC1X2 is a 4K 18Gbps HDMI Splitter with built-in Scaler, specifically designed for installations requiring a single 4K video source to be distributed to multiple displays that have video resolution limits. The BG-UHD-SC1X2 supports down-scaling of 4K video to a fixed resolution of 1080p or to a lower color gamut if the screen does not support 4K (4:4:4) using the HDMI Scaler Port. It also offers audio Embedding and De-embedding, advanced EDID management and is HDCP 2.2 compliant.

HDMI output 1 supports to down-scale the video to the following formats:
- 1080P@24/25/30/60Hz (for screens that do not support 4K)
- 4K@50/60Hz 4:2:0 (for screens that do not support full 4K@60Hz 4:4:4)

Features

  • bi_hdmi
    HDMI Scaling
    1x HDMI Input and 2 HDMI Outputs
  • bi_badge-4k
    Stunning Image Quality
    4K pass-through supports 4K@60Hz 4:4:4
  • bi_soundwave
    Audio Embed & De-embed
    Embed audio using 3.5mm stereo or de-embed using 3.5mm stereo or S/PDIF digital Coaxial
  • FrameCorners
    Autoscaling
    Scale a 4K signal to 1080P automatically
  • teenyicons_lock-circle-outline
    Locking Power
    Locking power connection to ensure device stays plugged in
  • material-symbols_safety-check
    Rugged Design
    Durable metal enclosure built to last for years
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Slim design

Tech Specifications

Bandwidth 18Gbps
Video Input Connectors 1x HDMI Type A, 19-pin, female
Audio Input Connectors 1x 3.5mm stereo jack (L/R)
Video Output Connectors 1x HDMI Type A, 19-pin, female
Audio Output Connectors 1x 3.5mm stereo jack (L/R)
EDID 4-PIN DIP Switcher
Mode 4-PIN DIP Switcher
Dimensions (W x D x H) 4.0in x 4.1in x 0.87in [101mm x 103mm x 22mm]
Shipping Weight 1.54 lbs [0.7kg]
Operating Temperature 32°F to 104°F / 0°C to 40°C
Storage Temperature -4°F to 140°F / -20°C to 60°C
Power Supply 5V/1A DC

PACKAGE CONTENTS

  • 1x BG-UHD-SC1X2 HDMI Splitter Scaler
  • 1x 5V/1A Power Supply
  • 1x Pair of Rack-mount Ears

Interfaces

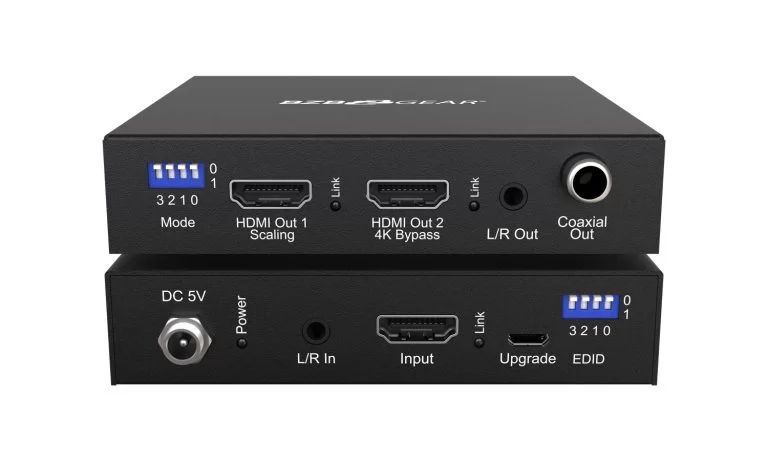

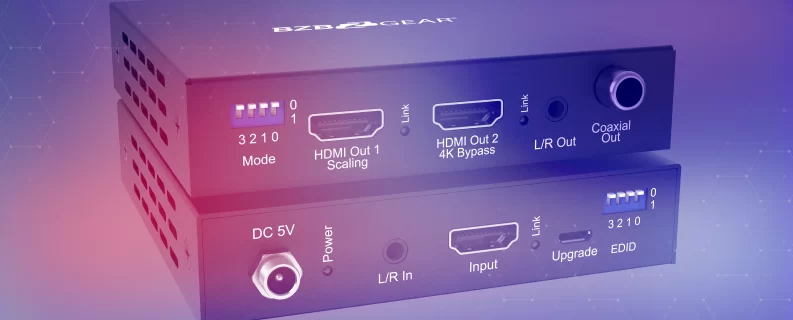

Interfaces image
  1. Mode DIP Switch: EDID management.
  2. HDMI output 1: Scaled video output, connect to HDMI sink device.
  3. HDMI output 1 LED indicator: Lit when detecting an active HDMI connection to a sink device.
  4. HDMI output 2: Bypass video output, connect to HDMI sink device.
  5. HDMI output 2 LED indicator: Lit when detecting an active HDMI connection to a sink device.
  6. L/R Out: 3.5mm stereo jack, extract the audio from the HDMI input, PCM 2ch audio only.
  7. Coaxial out: Extract the audio from HDMI input.
  8. DC power input: Screw-on locking connector, use the included 5V/1A DC adaptor to power the unit.
  9. LED indicator for Power: Lit blue when the unit is powered.
  10. L/R In: 3.5mm stereo jack embeds audio into the HDMI output.
  11. HDMI input: Connect to a HDMI source device.
  12. HDMI input LED indicator: Lit when there is an active HDMI connection to a source device.
  13. Upgrade: Micro USB port for firmware upgrade.
  14. DIP switcher: EDID management.
