16X16 4K 18Gbps UHD HDMI Matrix with Advance EDID/Downscaling/CEC/IP and RS-232 Control

MSRP: $2,999.00

MSRP $2999

3
Overview

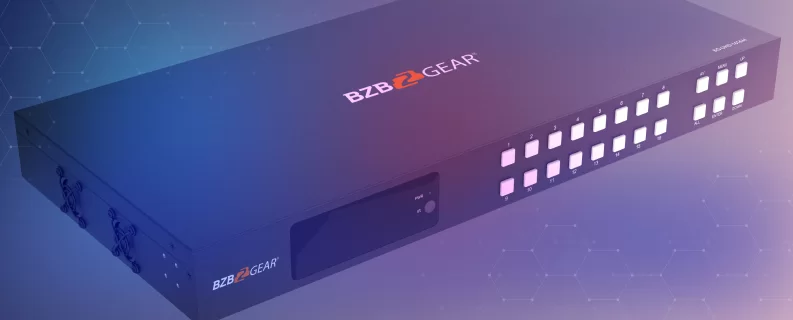

The BG-UHD-1616M is a 4K HDMI matrix switcher which supports video and audio from up to 16 sources to up to 16 HDMI displays. With this matrix, users can switch which display uses which input, enabling a great deal of control over many displays at once.

Connectivity

This matrix supports HDMI 2.0b and HDCP 2.2/1.x. The BG-UHD-1616M supports resolutions as high as [email protected] (YUV 4:4:4) on all HDMI ports, ensuring a clear picture if using high quality inputs. All video outputs are capable of downscaling 4K video to 1080p if necessary and this matrix has a maximum video bandwidth of 18Gbps. Put together, these features ensure the delivery of pristine uncompressed video transmission to up to 16 displays.

Features & Control

The BG-UHD-1616M supports HDMI audio pass-through up to 7.1 CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio). Audio can be extracted via corresponding digital coax ports for each HDMI output. This provides additional functionality for operators looking to send audio to external devices to individual zones.

Operators have numerous options for controlling this HDMI matrix. To switch which input is shown on a display, operators can use front panel buttons, an IR remote, RS-232, IP commands, or the web interface. ARC, CEC, and smart EDID management are supported. The BG-UHD-1616M has 21 factory-defined EDID settings, as well as two user-defined EDID modes. There are also 16 copy EDID modes. This enables operators to tailor their control experience to their particular use case.



Features
Stunning Image Quality
Supports resolutions up to [email protected] 4:4:4
16x16 Video Matrix
View any source on any display
HDMI
HDMI 2.0, HDCP 2.2
HDR
Dolby Vision, HDR10+, and HLG support
Audio Extraction
De-Embed audio using S/PDIF Digital Coax
Multiple Control Options
Front panel buttons, RS232, IR, CEC, IP, and Web GUI
  • Support 4K-1080P Down Scaler for each output port
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • ARC, CEC and smart EDID management are supported


Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2/1.x

Video Bandwidth

18Gbps

Video Resolution

Up to [email protected] (4:4:4)

Color Space

RGB, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth

8-bit, 10-bit, 12-bit

HDMI Audio Formats (Pass-through)

LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Coax Audio Formats

LPCM 2.0, Dolby Digital / Plus, DTS 5.1

HDR formats

HDR10, HDR10+, Dolby Vision, HLG

ESD Protection

Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection

Input Ports

16xHDMI Type A [19-pin female]

Output Ports

16xHDMI Type A [19-pin female]
16xCoax Audio (RCA)

Control Ports

1xTCP/IP [RJ45]
1xRS-232 [D-Sub 9]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

17.3" (W) x 7.9” (D) x 1.7" (H) [440mm (W) x 200mm (D) x 44mm (H)]

Weight

6.83lbs [3.1kg]

Power Supply

Input: AC 100 - 240V 50/60Hz, Output: DC 24V/3.75A
(US/EU standard, CE/FCC/ULcertified)

Power Consumption

76.8W

Operating Temperature

14°F ~ 113°F / -10°C ~ 45°C

Storage Temperature

-4°F ~ 140°F / -20°C ~ 60°C

Relative Humidity

20~90% RH (non-condensing)

Resolution / Cable length

4K60 - Feet / Meters

4K30 - Feet / Meters

1080P60 - Feet / Meters

HDMI IN / OUT

16ft / 5M

32ft / 10M

50ft / 15M

The use of “Premium High Speed HDMI” cable is highly recommended.

MORE / LESS SPECS

Interface
1.
OLED screen: Displays matrix switching status, input / output port, EDID, baud rate, and current IP address.
2.
Power LED: The LED will illuminate green when the unit is connected to the power supply, and red when the unit is on standby.
3.
Input / Output buttons: Press input button (1-16) first, then press the “AV” button, then press output button (1-16, including “ALL”) to select the corresponding input and output ports.
4.
AV / ALL buttons: AV: Switch the signal source to output.
All: Represents all the output ports.
5.
MENU / ENTER / UP / DOWN: Use these buttons for the following operations in the menu: EDID Check, EDID Setting, Baud rate setting, IP Address Check.
6.
IR Window: The IR receiver window receives the IR remote signal.
7.
TCP/IP port: TCP/IP control port, connect to PC or router with an RJ45 cable.
8.
RS-232 port: Connect to a PC or control system by Din-9 cable to transmit RS-232 commands.
9.
AUDIO OUT 1-16: Coaxial audio output ports. Connect to audio output devices such as audio amplifiers via a coaxial cable.
10.
DC 24V: Connect to a 24V power adapter.
11.
GND: Connect the housing to the ground.
12.
INPUT ports 1-16: HDMI input ports. Connect to an HDMI source device such as a media player or cable box with an HDMI cable.
13.
OUTPUT ports 1-16: HDMI output ports. Connect to an HDMI display device such as TV or monitor with an HDMI cable.


Download the BG-Switch Control Software
Videos


16x16 Matrix Switcher With ARC, Auto Downscale, Smart EDID and More | BG-UHD-1616M
Easy to Control 16x16 HDMI Matrix Switch with ARC - BG-UHD-1616M
Control Many 4K Displays with an HDMI Matrix Switcher - InfoComm 2022

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.





Package Contents
① 1 x 18Gbps 16x16 HDMI Matrix
② 1 x 24V/3.75A Power Adapter
③ 1 x IR Remote
④ 1 x RS-232 serial cable (1.5 meters, male to female head)
⑤ 2 x Mounting Ear
⑥ 1 x User Manual
