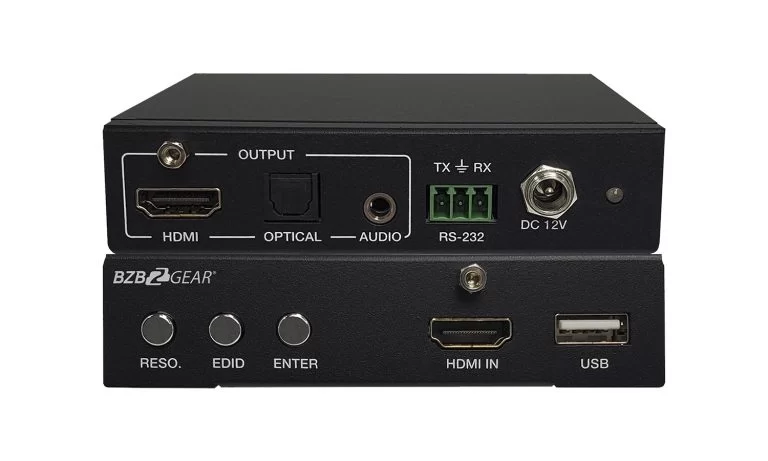

BG-HDMI4K-SC
HDMI 2.0 4K 60Hz up/down Scaler with Analog & Optical Audio Extractor
HDMI 2.0 4K 60Hz up/down Scaler with Analog & Optical Audio Extractor
HDMI 2.0 4K 60Hz up/down Scaler with Analog & Optical Audio Extractor
SKU: BG-HDMI4K-SC
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
This BG-HDMI4K-SC is a superior Scaler equipped with HDMI 2.0 and HDCP2.2 compliant. Purposed for upscaling and downscaling Ultra HD/4K, Full HD, and HD resolutions with frame changing options, this unit will solve resolution and EDID conflicts. Offering a broad scope of display resolutions from 480i up to 4K@60Hz 4:4:4 at 18Gbps with advanced and straightforward sound extraction.
This Scaler offers one HDMI input and one HDMI output as well the unit consequently scales to align with the native signal of the presentation or any associated HDMI device. The Scaler highlights front board keys or OSD (on-screen show) menu, or RS-232 control for Scaler settings.
MSRP $249.00*
*Pricing is for US only. International pricing will vary.Features
- HDMI 2.0b (18Gbps), HDCP 2.2 compliant
- Up scaling video resolutions up to 4K2K@50/60Hz (YUV444) and downscaling video resolutions to 1024x768@60Hz
- Adaptive de-interlacing support
- Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- Supports Dolby True HD, Dolby Digital Plus and DTS -HD Master Audio plus LPCM (up to 192kHz)
- Supports CEC bypass
- Front panel buttons, OSD and RS-232 Control
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
- Device capabilities and compatibility.
- Type of connections available.
- How to set up and use software if applicable.
- Useful tricks and tips.
Specifications
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of 4K@60Hz (4:4:4) while still capable of transmitting audio and control signals simultaneously.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 1.4 and HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolutions | Ultra HD/4K up to 4096 x 2160 @50/60Hz |
| Color Depth | 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2YCbCr 4:2:0 |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical AudioFormats | LPCM 2CH, Dolby Digital 2/5.1CH, DTS2/5.1CH |
| L/R Audio Formats | Analog Stereo 2CH |
| ESD Protection | Human-body Model：±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connections | |
| Inputs | 1x HDMI Type A [19-pin female] 1 x RS232 [Phoenix connector] 1 x Firmware [Mini USB] |
| Outputs | 1x HDMI Type A [19-pin female] 1x L/R Audio Out [3.5mm Stereo Mini-jack] 1x Optical Out [S/PDIF] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 115mm(W)x100mm(D)x25mm(H) |
| Weight | 450g |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 8W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| 640x480@60Hz | 720x480i@60Hz | 720x480p@60Hz |
| 720x576i@50Hz | 720x576p@50Hz | 800x600@60Hz |
| 1024x768@60Hz | 1152x864@75Hz | 1024x768@75Hz |
| 1280x768@60Hz | 1280x960@60Hz | 1280x1024@60Hz |
| 1365x1024@60Hz | 1600x1200@60Hz | 1680x1050@60Hz |
| 1856x1392@60Hz | 1920x1080@60Hz | 1920x1200@60Hz |
| 1920x1440@60Hz | 3840x2160@24Hz | 3840x2160@30Hz |
| 3840x2160@25Hz | 4096x2160@24Hz | 4096x2160@25Hz |
| 4096x2160@30Hz | 3840x2160@50Hz | 3840x2160@60Hz |
| 4096x2160@50Hz | 4096x2160@60Hz |
| 1024x768@60Hz | 1280x720@50Hz | 1280x720@60Hz |
| 1280x800@60Hz | 1360x768@60Hz | 1400x1050@60Hz |
| 1600x1200@60Hz | 1680x1050@60Hz | 1920x1200@60Hz |
| 1920x1080@50Hz | 1920x1080@60Hz | 3840x2160@30Hz |
| 3840x2160@50Hz | 3840x2160@60Hz | 3840x2160@25Hz |
Resources
Package Contents
① 1xHDMI 4K Ultra HD Scaler
② 1x12V/1A Power Adapter
③ 1xPhoenix connector
④ 1xUser Manual
② 1x12V/1A Power Adapter
③ 1xPhoenix connector
④ 1xUser Manual
Diagram
Warranty: 2 years
