Full HD HDMI Splitter 1X8 Over CAT5E/CAT6 50M
MSRP: $319.00
Instant savings $210.00

2
Sale!

Description

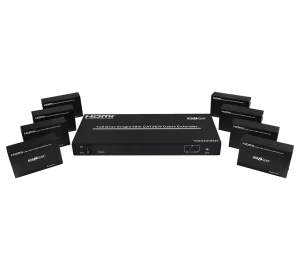

The BG-DA-1X8C50M is an 8-way HDMI splitter/extender kit. It features a single HDMI input which is split to 8 RJ45 outputs that are capable of extending the HDMI signal up to 50 meters (165 feet) away via the included receiver units.  Lobbies, warehouses, offices, and sports bars are just a handful of the many situations this kit is perfect for. This unit will distribute signal to your displays for a fraction of the cost vs. using standard HDMI cabling. Category cable is cheaper, easier to install, and carries signal further than is possible with HDMI, making the BG-DA-1X8C50M an easy choice for your system.

Additional information

Weight 5 lbs
Dimensions 14 × 10 × 3 in
Overview

The BG-DA-1X8C50M is an 8-way HDMI splitter/extender kit. It features a single HDMI input which is split to 8 RJ45 outputs that are capable of extending the HDMI signal up to 50 meters (165 feet) away via the included receiver units.  Lobbies, warehouses, offices, and sports bars are just a handful of the many situations this kit is perfect for. This unit will distribute signal to your displays for a fraction of the cost vs. using standard HDMI cabling. Category cable is cheaper, easier to install, and carries signal further than is possible with HDMI, making the BG-DA-1X8C50M an easy choice for your system.



Features
Full HD Support
Supports resolutions up to [email protected]
Multi-Channel Audio
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master.
Power over Cable
Receivers need no power supply.
Long-Distance
Transmit signal up to 50 meters (165 feet).
Compact Design
Slim components make a clean installation easy.
EDID Control
Multiple selectable EDID modes ensure reliable connectivity.
  • Full HD support: [email protected]@24 bit/pixels
  • Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
  • Operates for TMDS clock frequencies up to 148.5MHz
  • Support Power over cable function
  • Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distances transmission
  • UTP cable termination follows the standard of IEEE-568B
  • Supports EDID control via EDID selector


Specifications
Maximum Pixel Clock 165 MHZ
HDMI Splitter:
Input Ports 1x HDMI, 1x Mini USB
Output Ports 1x HDMI, 8x RJ45, 1x IR out
Receiver:
Input Ports 1x RJ45, 1x IR in
Output Ports 1x HDMI
Power Supply DC 12V 2.5A
ESD Protection ± 8kV (air-gap discharge)
Human Body Model ± 4kV (contact discharge)
Dimensions (mm) 295(W) X 83 (D) X 17 (H)
Weight Transmitter: 720g
Weight Receiver: 8 x 131g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20~90% RH (Non-condensing)
Power Consumption  (Max) 15W
MORE / LESS SPECS
Ideal fit for:
- Bars/Restaurants/Hotels
- Malls
- Universities


Who is buying it?
- Property Managers
- Small Businesses
- Corporations

Interface


HDMI

Crystal clear image with resolutions up to [email protected]

LAN

Power over Ethernet, IP Control, and streaming interface.

Micro USB

Upgrade the software in your controller by directly plugging into this connection from your PC.

Power

Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function.

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources



Package Contents
① 1xHDMI Splitter
② 8xReceiver
③ 1x12V2.5A DC Power Supply adapter
④ 1xWideband IR Tx cable
⑤ 8xWideband IR Rx cable
⑥ 1xOperation Manual
⑦ 2xMounting ears
