BG-AVOIP1080E
HD Video Over IP Encoder with Live Preview, Recording, Matrix and Audio De-Embedding

HD Video Over IP Encoder with Live Preview, Recording, Matrix and Audio De-Embedding

SKU: BG-AVOIP1080E

The BG-AVOIP1080E is an IP Streaming Encoder which use H.264 standard to extend HDMI video, IR and RS232 control signals over IP network. Designate one control PC (Wake on LAN) and a 100Mbps Network Switch.

The BG-AVOIP1080E features 1080p HDMI video switching, video matrix, audio de-embedding, audio switching, IR and RS232 transmission, video recording and PoE. The control software “IP Streaming Management” merge all functions for user control the IP streaming system.

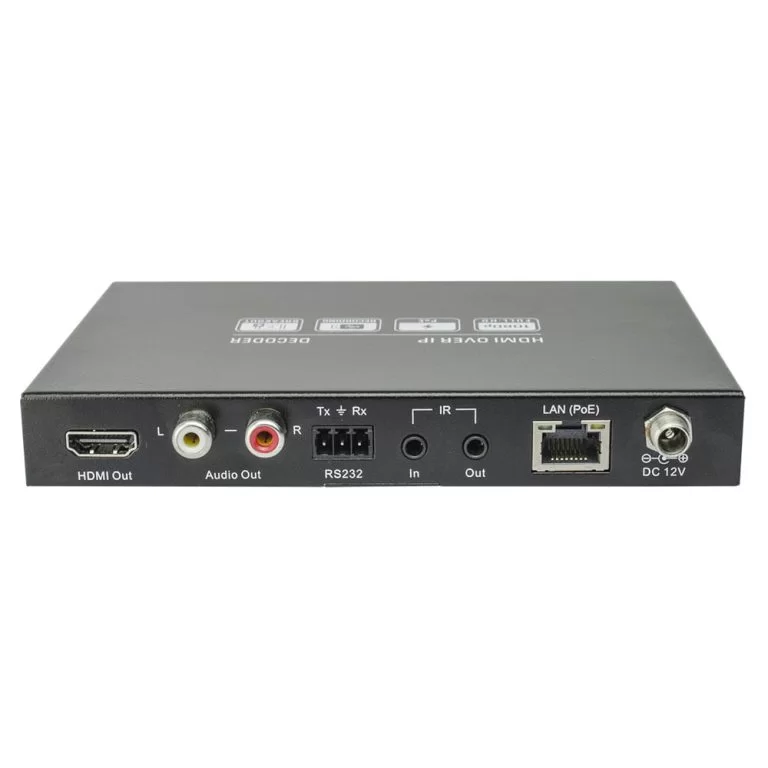

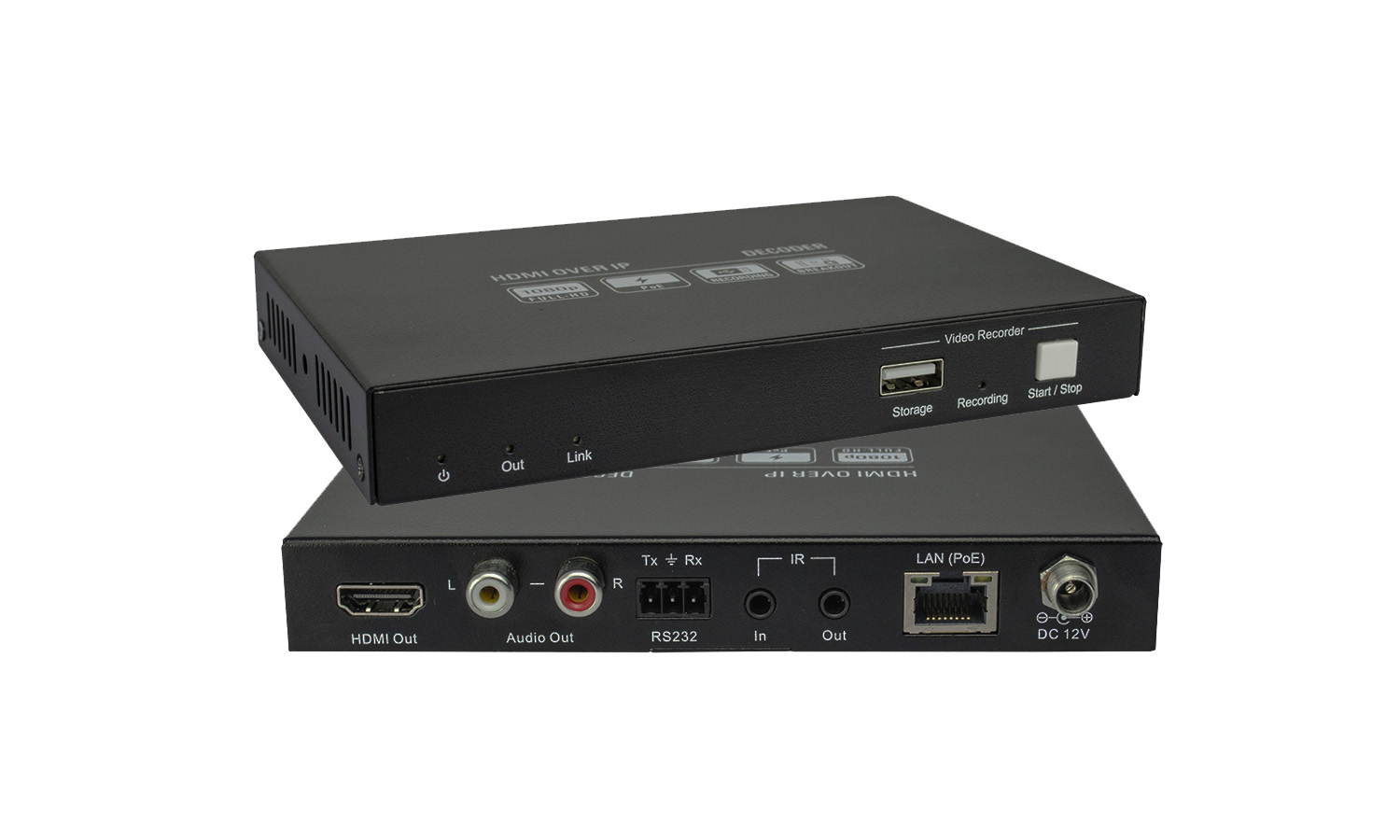

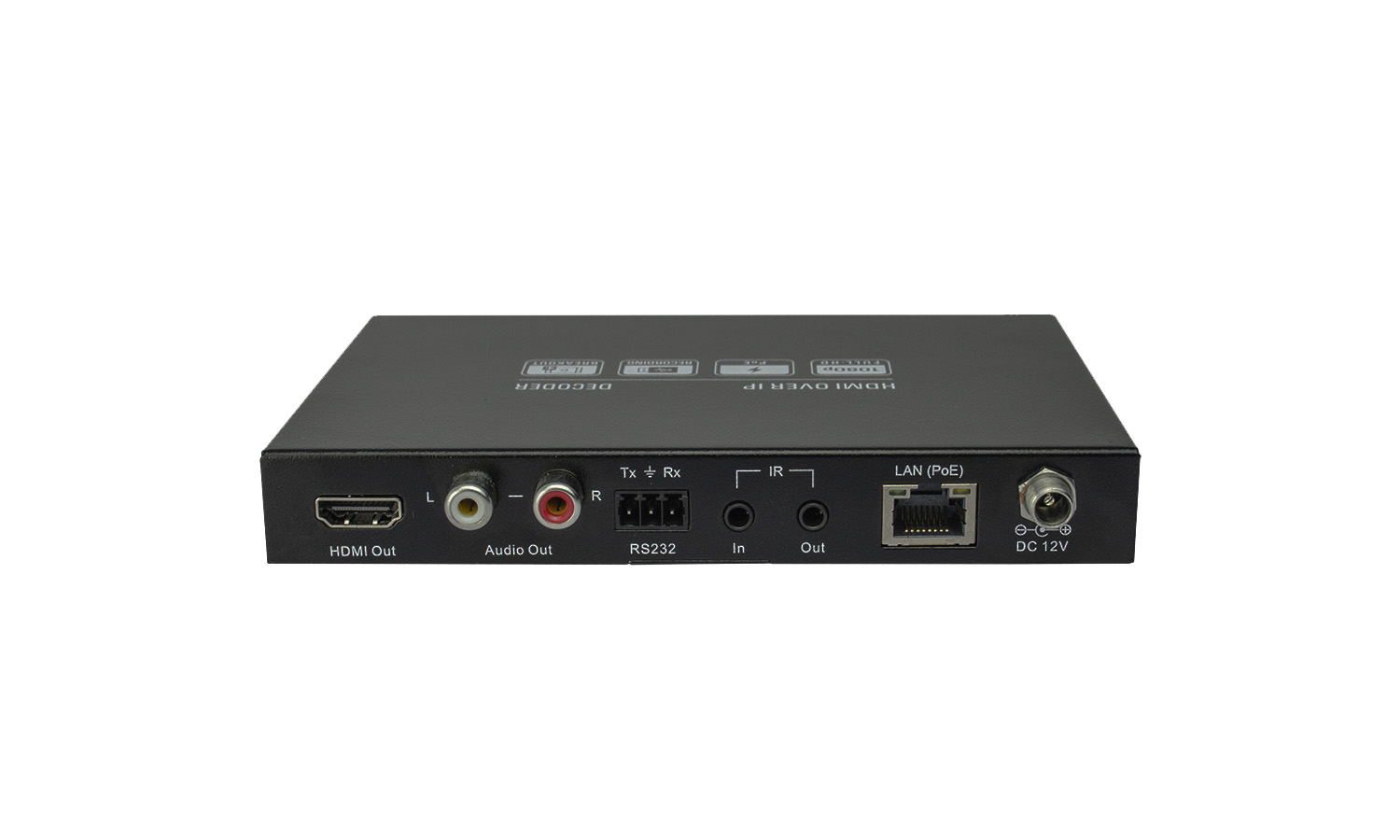

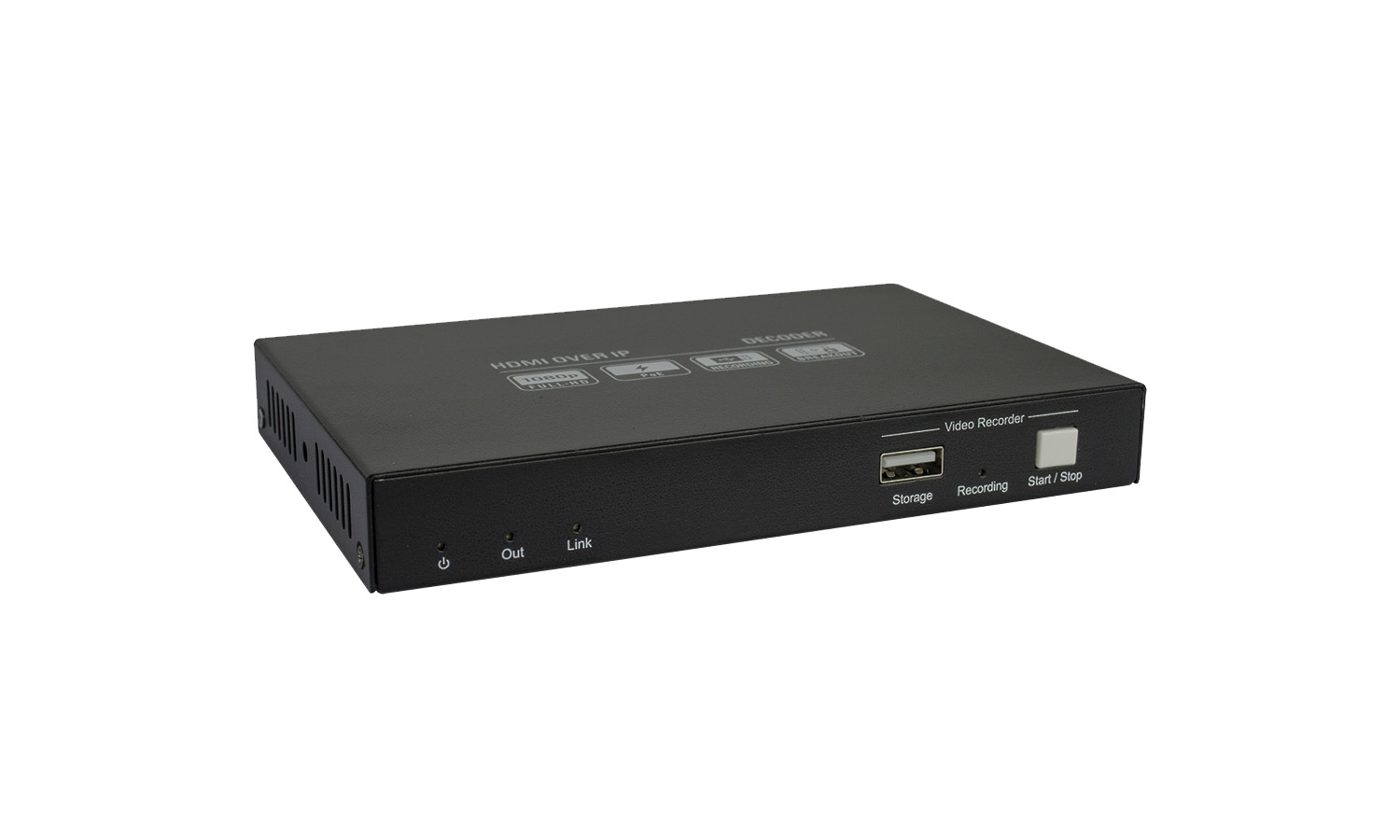

Matching Decoder - BG-AVOIP1080D

MSRP $249.00*

*Pricing is for US only. International pricing will vary.
Features
  • Supports H.264 encoding and decoding
  • 1080p video over IP network
  • Support video extension, video distribution and video matrix
  • Support output video scaling to 720p or 1080p
  • Supports PoE , Encoder/Decoder can be powered by PoE Switch
  • Support Video Live Preview on the GUI
  • Support Video Broadcasting over network
  • Supports video recording
  • The encoder features HDMI loop out
  • Supports audio breakout
  • Supports RTSP, RTP, HTTPFLV, UDP, TCP Protocol
  • Supports Unicast and Multicast
Specifications



Video Input(1) HDMI In
Video Input Connector(1) Type-A female HDMI
HDMI Input ResolutionUp to 1080p@60Hz 444 10/12bit
Video Output(1) HDMI Out
Video Output Connector(1) Type-A female HDMI
HDMI Output ResolutionUp to 1080p@60Hz 444 10/12bit
Control(1) RS232, (1) IR In, (1) IR Out, (1) LAN (PoE)
Control Connector(1) 3-pin terminal block, (2) 3.5mm jack, (1) RJ45
General
Video Encoding StandardH.264
External Power SupplyInput: AC 100~240V, 50/60Hz, Output: 12V DC 1A; PoE supported.
Power ConsumptionEncoder:4W (Max); Decoder:3.5W (Max)
Operation Temperature-5℃ ~ +55℃
Storage Temperature-25℃ ~ +70℃
Relative Humility10%-90%
Dimension (W*H*D)152.0mm x 21.0mm x 100.0mm
Net WeightEncoder: 340; Decoder: 345g





Resources



Package Contents
① 1xBG-AVOIP1080E Encoder (RX)
② 2xMounting Ears with 2 Screws
③ 1x3-pin Terminal Block
④ 1xUser Manual

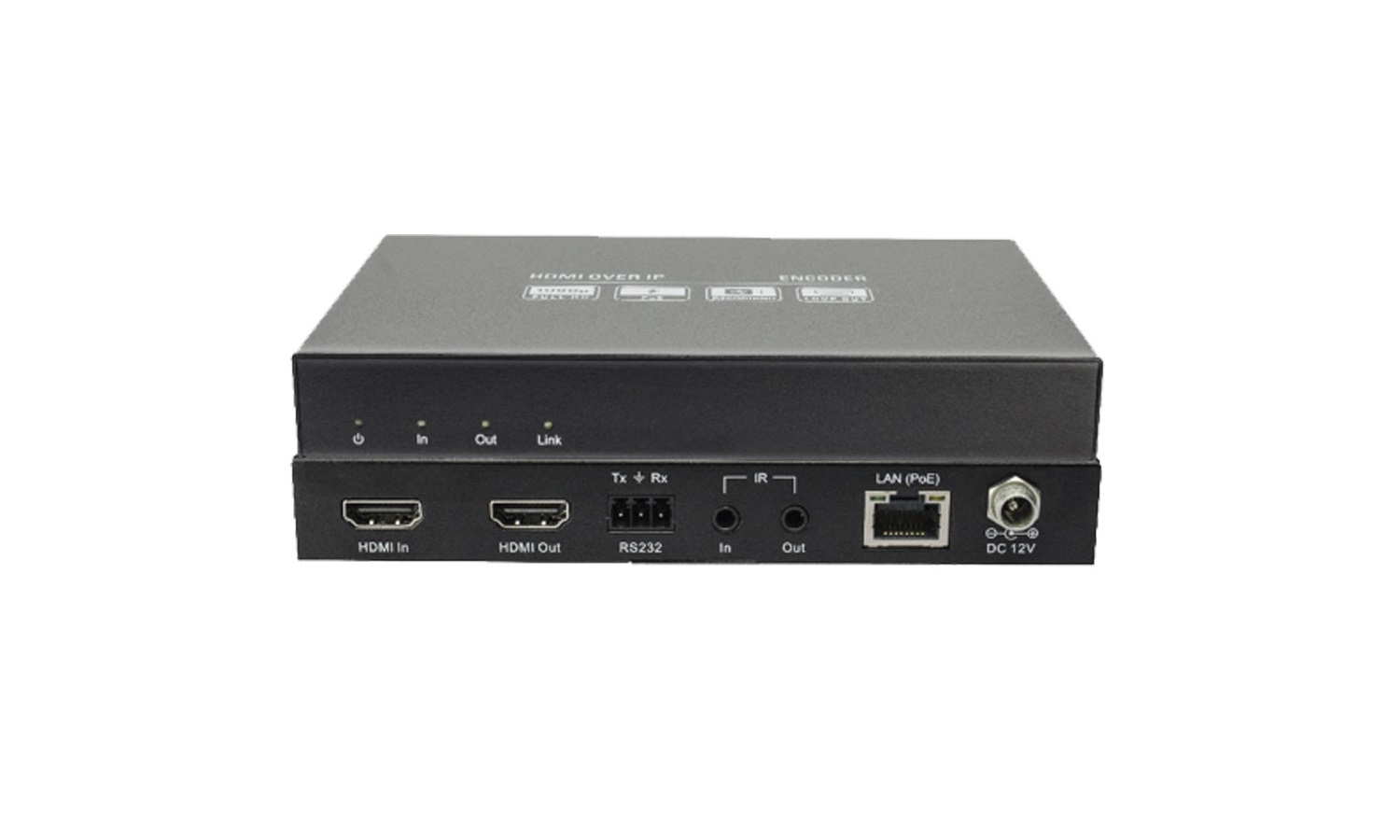

Device Interface

See full description of the connections here


Diagram





Warranty: 2 years
