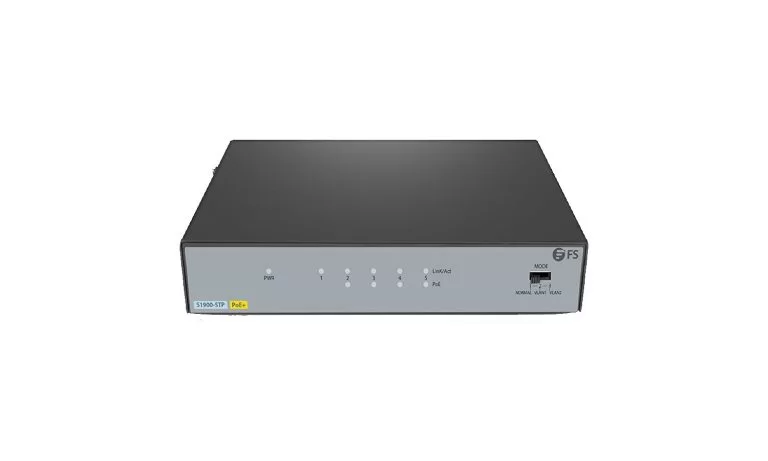

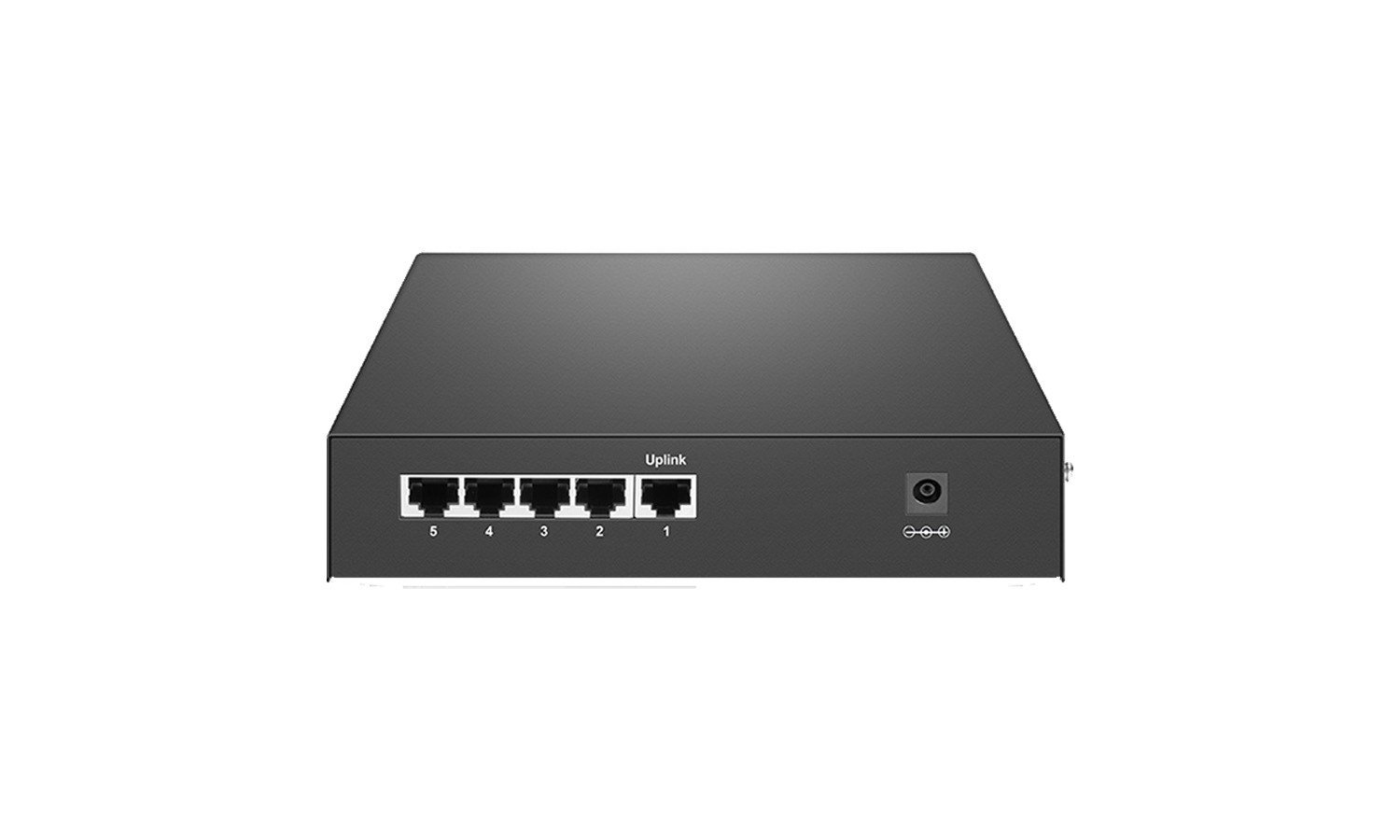

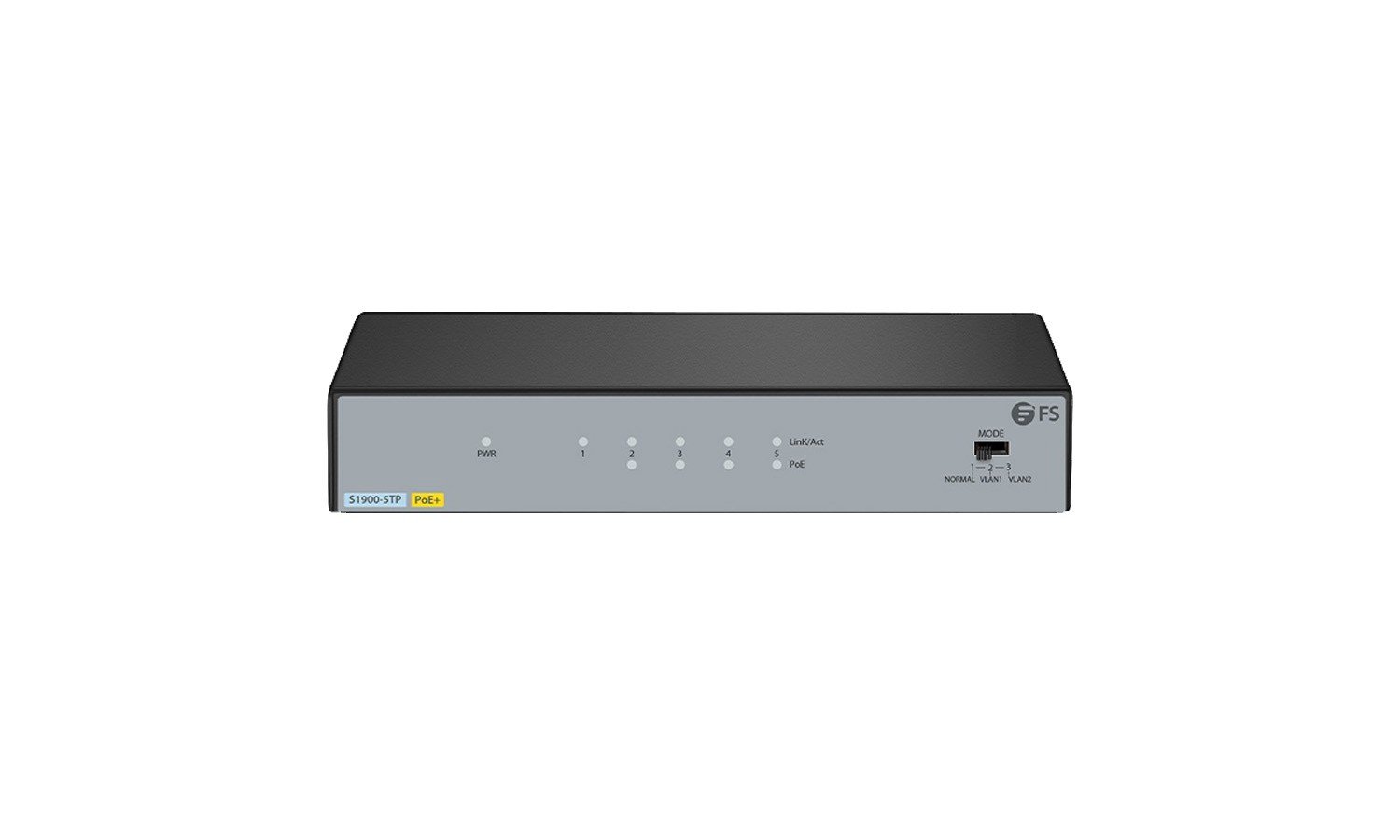

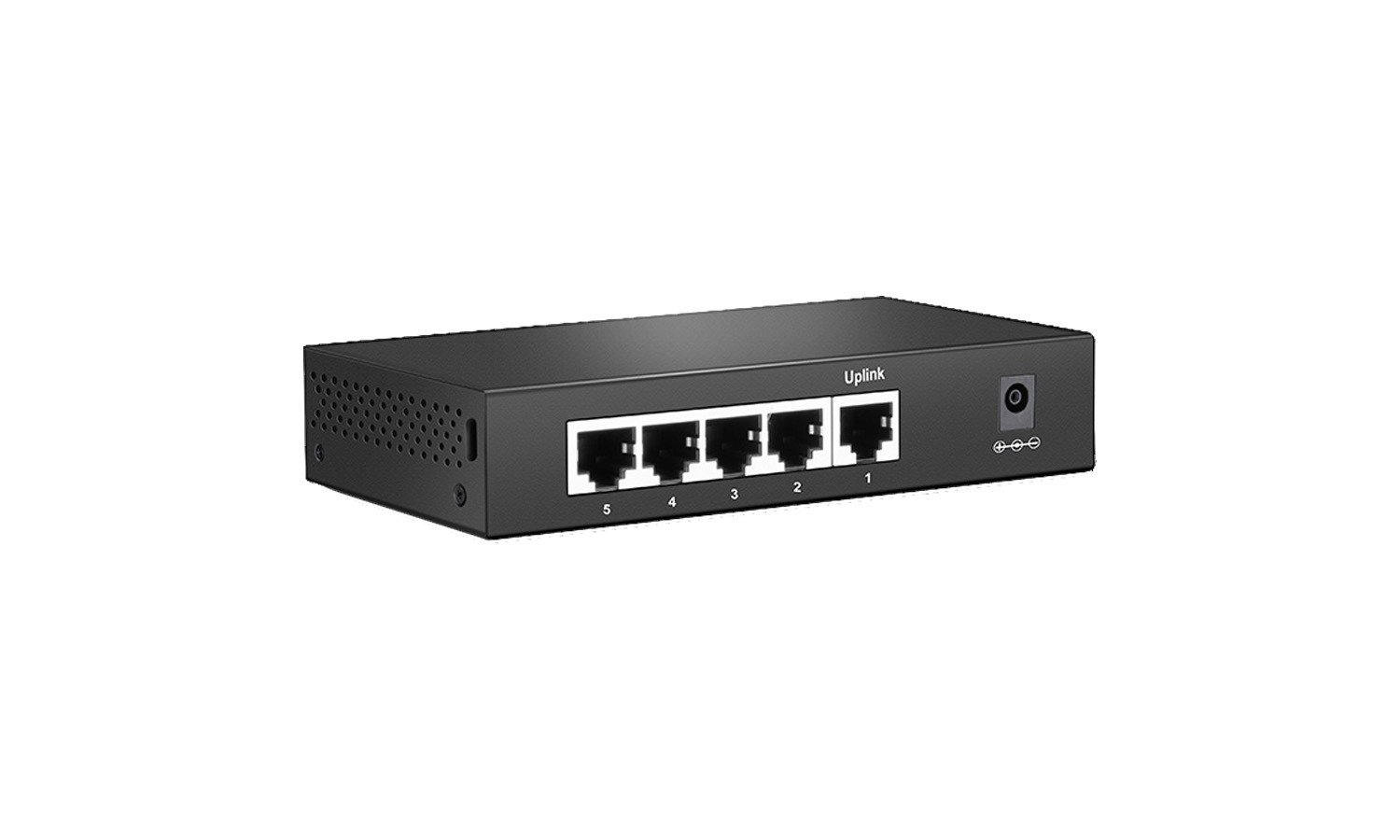

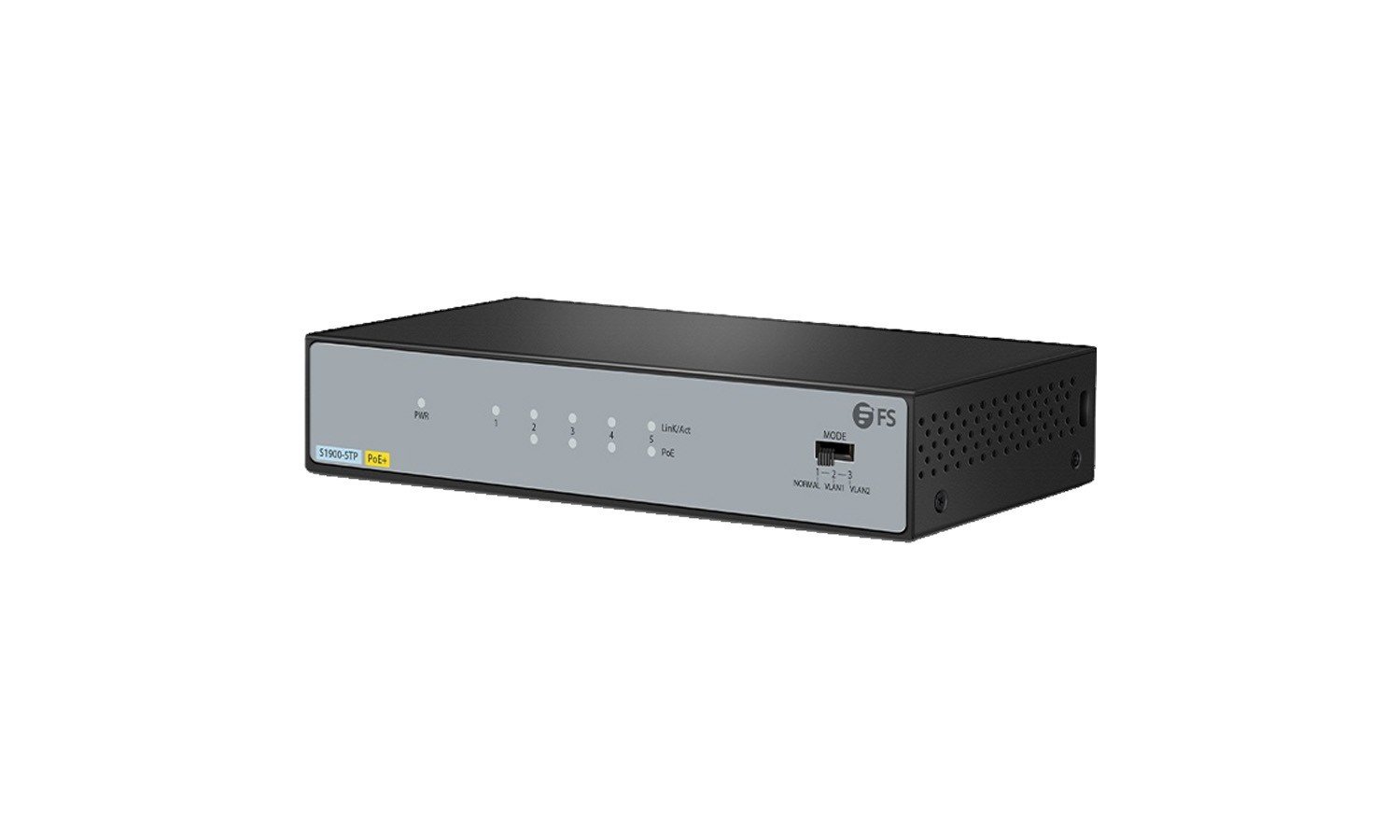

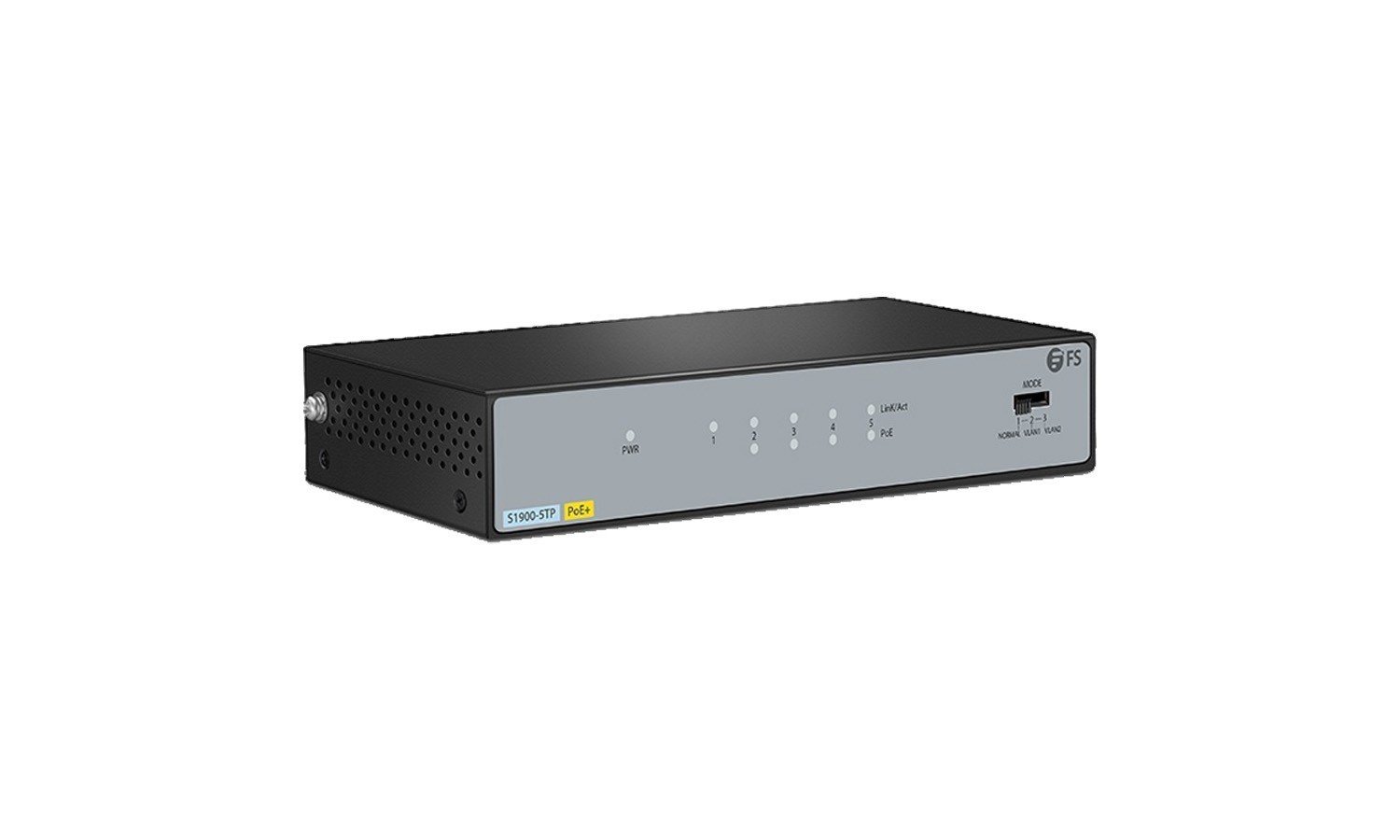

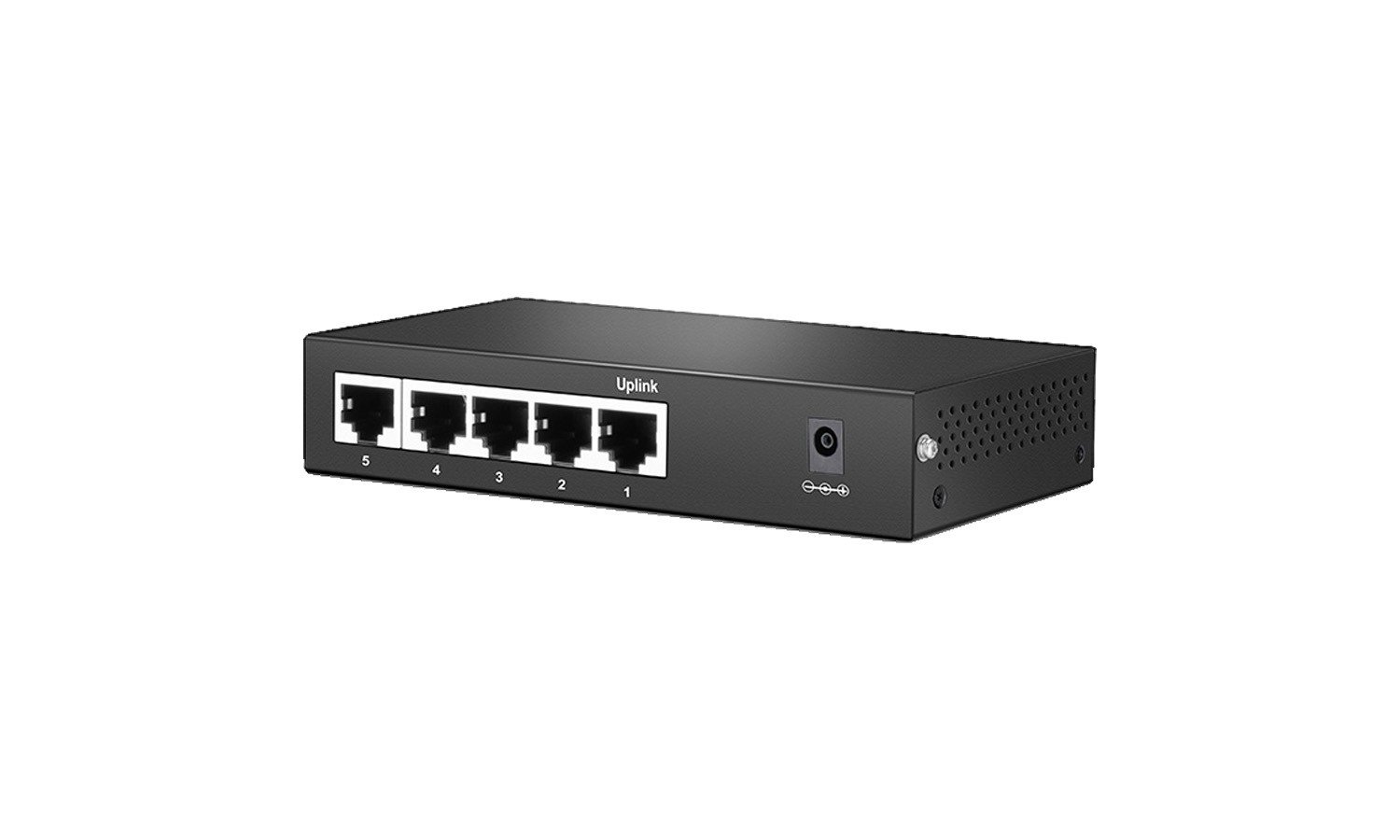

5-Port 1G Ethernet L2 Unmanaged PoE+ Switch, 4x PoE+ Ports @60W, Metal, Fanless, Desktop/Wall-Mount by FS

Overview Specifications

Overview

The BG-FS5P60 5-port Gigabit Ethernet Multi-Mode Unmanaged PoE+ Switch provides a seamless network connection, which integrates 1000Mbps Ethernet and 10/100Mbps Ethernet network capabilities. There are 4 Power Sourcing Equipment (PSE) on the switch, which can give power to IEEE802.3af/at Compliant Powered Devices(PD). And the switch also can be switched to a Normal VLAN mode and Monitoring VLAN mode manually. With high integration level, exquisite, easy to operate and portable features, the switch is suitable for the household and office network environment with small or middle scale. It is an ideal choice to promote the performance of the department and working group, can provide a high-performance network applicable solution in simple, economical and standard ways.

Features

  • Plug and Play, No Configuration Needed
  • 4 PoE+ Ports with 60W Total Power Budget
  • Durable Metal Casing, Desktop or Wallmount Options
  • 5x 10/100/1000Mbps Auto-Negotiation RJ45 Ports
  • Support Port Auto MDI/MDIX
  • Fanless and Silent Operation
  • Energy Efficient Design Compliant with IEEE 802.3az

Tech Specifications

Ports 5x 10/100/1000BASE-T RJ45
MAC Address 2K
Switching Capacity 10 Gbps
Jumbo Frame 9,000
Forwarding Rate 7.44 Mpps
Transfer Method Store-and-Forward
Packet Buffer 0.19MB
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Power Supply DC 51V, 1.25A (External Power Supply)
Max. Power Budget 60W
PoE Standard IEEE 802.3af/at
Max. Power Consumption PoE on 66.1W (220V, 50Hz)
Product Material Metal
Mounting Methods Desktop or Wall-mount
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Dimensions (HxWxD) 1.10"x 6.38"x4.02" (28x162x102mm)
