How to Connect your BZBGEAR VPTZ Camera to your Network (Windows)

The biggest hurdle most people face when installing their IP-enabled camera is getting it onto their network. We created this set-by-step tutorial to help make this task as easy as possible.

Check out our video tutorial on YouTube!

*Before beginning consult with your Network Administrator. Your network setup may differ from the examples provided.*

To successfully complete this process you will need several pieces of information. The first is the IP address of your computer. You will also need to select an unused IP address on your local network (This is the address you will set the camera to). The third piece is the default IP address of your camera. Finally, you will need the IP address of your Default Gateway/Router.

All versions of the BZBGEAR VPTZ Series cameras have the following default IP address:

192.168.1.162

The computer must be on the same subnet as the camera to connect successfully, therefore the computer must be connected to the 192.168.1.x subnet. We can achieve this via the Local Area Network Properties on the computer.

  • Right-click on the internet connection in the lower right corner of the desktop and select “Open Network & Internet Settings”.



  • Select “Change Adapter Options”.

  • Right-click on your connection (Wi-Fi or Ethernet) and select “Properties”.
  • Select “Internet protocol version 4 (TCP/IPv4)” as shown below and click “Properties”.

  • For the following steps refer to the diagram below. Click on the bubble for “Use the following IP address”

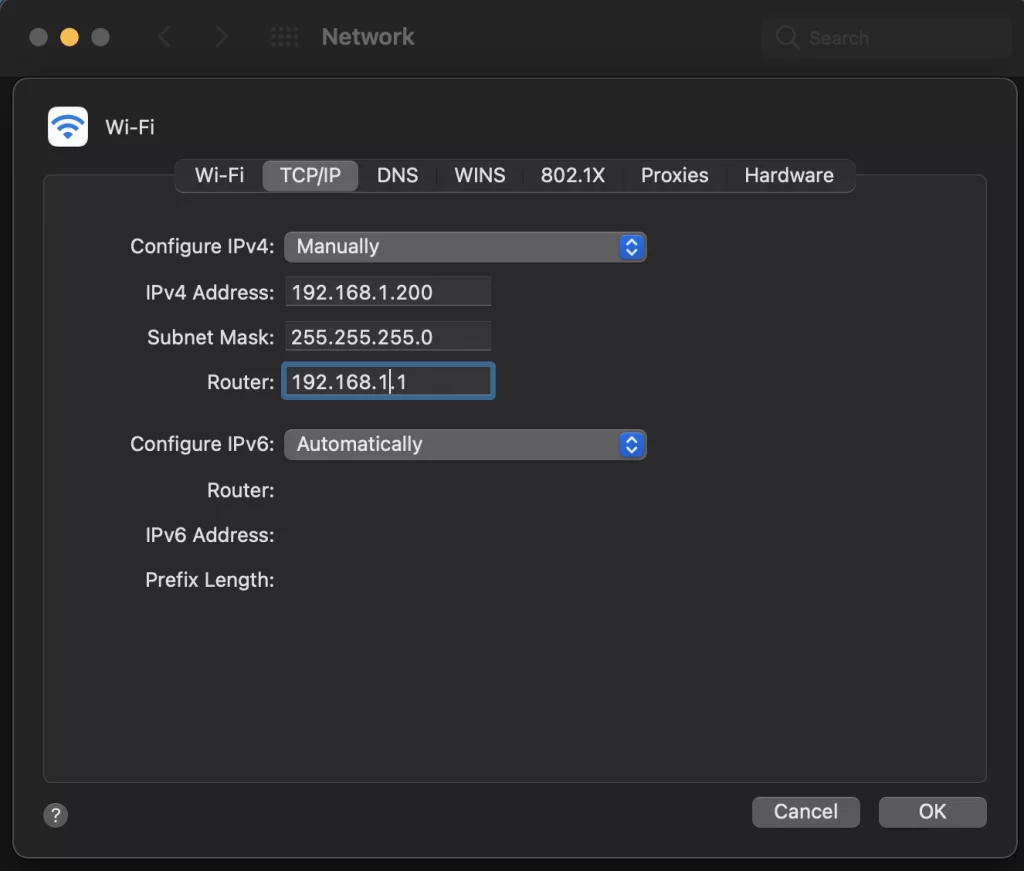

  • In the IP address field enter a non-conflicting IP address on the same subnet as the camera. If there is another device with the same IP address you will not be able to connect. In the example below we are using 192.168.1.200
  • In the Subnet mask field enter 255.255.255.0 In the Default gateway field type 192.168.1.1 You can leave the DNS fields blank.

NOTE: When you are finished configuring the camera you will need to return to this screen and click the bubbles for “Obtain an IP address automatically” and “Obtain DNS server automatically” to restore internet connectivity to your computer. Also make sure to reconnect any ethernet cables you may have unplugged.

  • Click OK to apply your settings.
  • Click OK to close the network properties screen.
  • Once you have applied your settings open your web browser and enter the IP address of your camera.
  • Enter the login information to access the interface. The username and password should both be admin for a default camera. You will now be looking at the camera preview window. At the top left of your screen select Config.

  • On the left side of your screen select Network. In the IP address field you will enter the unused IP address you selected at the beginning. Our example will use an address of 192.168.20.186.

*This address MUST NOT be in use by any other device on your network or you will create an IP conflict and be unable to access your camera.*

  • In the Subnet Mask field enter 255.255.255.0 the enter the IP address of your Default Gateway in the field below. Double-check your values and click the Save Button.
  • Unless you are given different information by your network administrator you should enter 8.8.8.8 for DNS1 and 8.8.4.4 for DNS2. Click Save.

  • Once you complete the camera setup, repeat the steps on your computer to adjust "Internet Protocol Version 4 (TCP/IPV4) Properties" and click the bubbles for "Obtain IP address automatically" and "Obtain DNS server address automatically". Click OK to close all network-related screens.

  • Your computer and camera should now be on your network. Open your web browser and enter the IP address you assigned to your camera and your setup is complete.
