BZB-EXHD
1080P/HD HDMI Extender Over Single Cat5e/6 up to 165ft with IR control & HDMI Loop Out
1080P/HD HDMI Extender Over Single Cat5e/6 up to 165ft with IR control & HDMI Loop Out
1080P/HD HDMI Extender Over Single Cat5e/6 up to 165ft with IR control & HDMI Loop Out
SKU: BZB-EXHD
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.

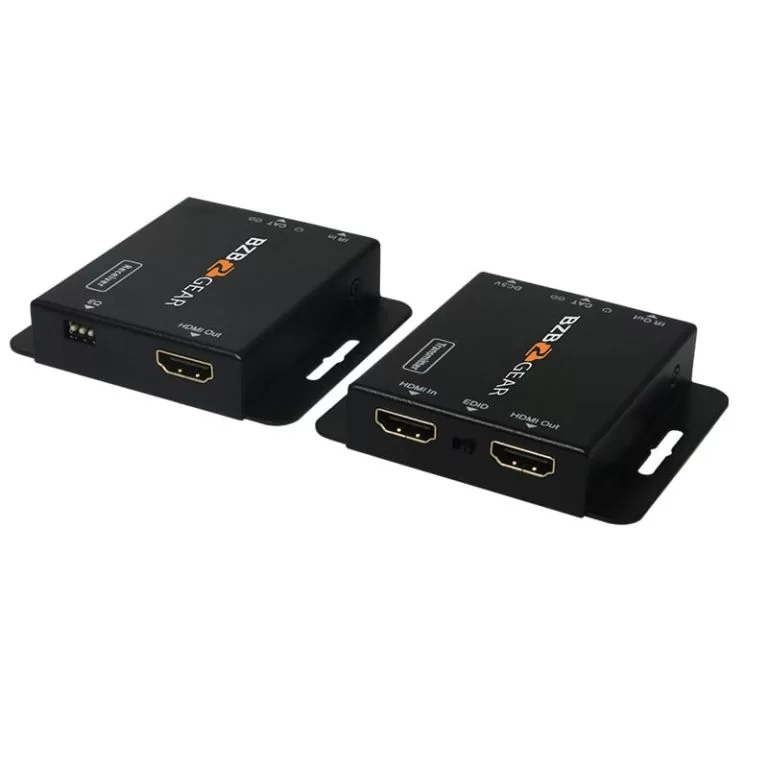

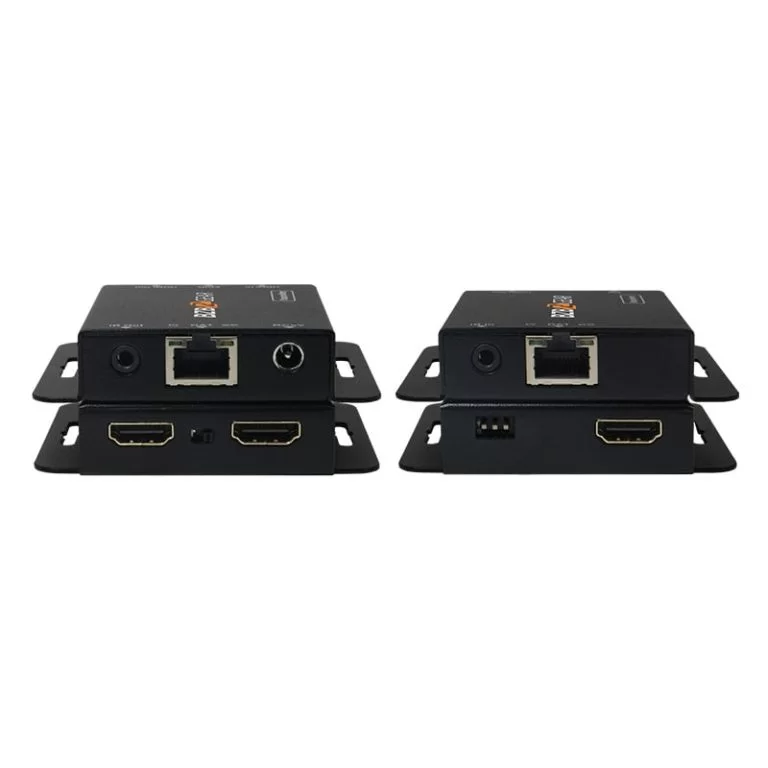

The BZB-EXHD 1080P HDMI extender transmits audio, video and IR signals over up to 165ft/50m using a single Cat5e/6/7 cable. Additionally, the unit offers HDMI Loop out on the transmitting unit and EDID management for easy integration eliminating “HDMI Handshake” issues. As well this extender supports, Deep color video, audio formats including Stereo, 7.1 DTS-HD and Dolby TrueHD. Budget friendly and feature packed, this is a great all around solution for any HDMI extension not requiring 4K resolutions.
MSRP $99.00*
*Pricing is for US only. International pricing will vary.Features
- Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable
- Support copy EDID from receiver display or loop out display
- Allows for cascading via additional HDMI loop out port
- Supports power over Cat5e/6/7 function
- Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
- Works with HDMI and HDCP compliant devices
- Supports up to 1080p High Definition resolution
- Compact design for easy and flexible installation
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
- Device capabilities and compatibility.
- Type of connections available.
- How to set up and use software if applicable.
- Useful tricks and tips.
Specifications
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
| Video Bandwidth | Single-link 165Mhz [ 4.95Gbps] |
| Video Support | 480i/480p/720p/1080i/1080p @60 |
| Audio Support | Surround Sound (up to 7.1 ch) or stereo digital audio |
| Transmission Range | HD [1080p 24-bit color] – up to 50m [164ft] |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| HDMI connector | Type A 19 pin female |
| RJ-45 connector | WE/SS 8P8C |
| 3.5mm connector | (TX and RX) IR Receiver IR Blaster MECHANICAL SPECS |
| Housing | Metal enclosure |
| Power Supply | 5V1A DC |
| Power consumption | 1.5 watts (TX); 1.0 watts (RX) |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Resources
Package Contents
① 1xHDMI Transmitter
② 1xHDMI Receiver
③ 1xWideband IR Blaster cable
④ 1xWideband IR Receiver cable
⑤ 1x5V/1A Power adapter
⑥ 1xUser Manual
② 1xHDMI Receiver
③ 1xWideband IR Blaster cable
④ 1xWideband IR Receiver cable
⑤ 1x5V/1A Power adapter
⑥ 1xUser Manual
Diagram
Warranty: 2 years
