BG-UHD-88M18G

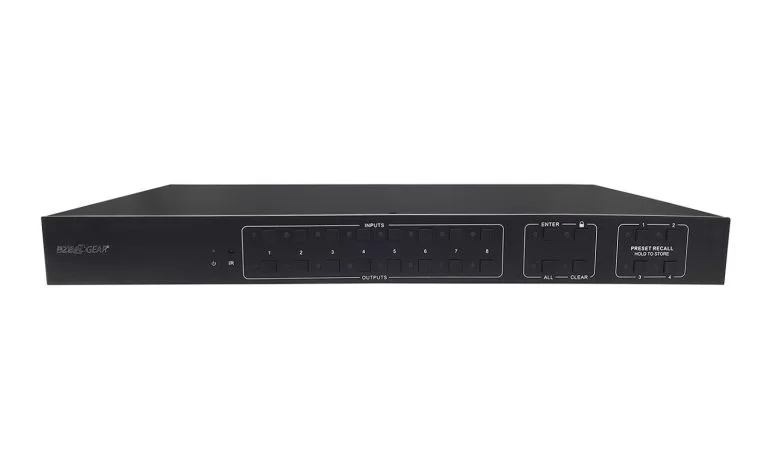

8×8 4K 60Hz 18Gbps HDMI and Audio Matrix Switcher with Downscaling/AOC Support
8×8 4K 60Hz 18Gbps HDMI and Audio Matrix Switcher with Downscaling/AOC Support
8×8 4K 60Hz 18Gbps HDMI and Audio Matrix Switcher with Downscaling/AOC Support
SKU: BG-UHD-88M18G
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
Full MultiView/PiP Matrix Switcher
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
The BG-UHD-88M18G is a professional HDMI2.0 Matrix Switcher with Audio Matrix. It includes eight HDMI inputs and eight HDMI outputs with down-scaling. This unit is designed for switching HDMI2.0 and HDCP2.3 compliant signals. It also features SPDIF and analog audio outputs for audio matrix functionality. Additionally, it features comprehensive EDID management and advanced HDCP handing to ensure maximum compatibility with a wide range of video sources. The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.
MSRP $3200.00*
*Pricing is for US only. International pricing will vary.Features
- 8x8 HDMI 2.0 Matrix Switcher
- Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant
- Audio Matrix, audio out can be de-embedded from arbitrary input or output
- Individual volume adjustment on each L+R output
- Supports 4K to 1080p down-scaling up to 4 outputs
- HDMI out provides 2.5W to power Active Optical Cable (AOC)
- HDMI Output support up to 5V500mA for AOC cable
- Controllable by front panel, IR, RS232 and TCP/IP
Product Video
For a detailed demonstration on how this product connects and operates, check out BZBGEAR's Video!
- Device capabilities and compatibility.
- Type of connections available.
- How to set up and use software if applicable.
- Useful tricks and tips.
Specifications
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
REMOTE ACCESS
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
Refers to the ability to connect to a device or computer from a location other than where the device is physically located for convenience and simplified maintenance.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
Full MultiView/PiP Matrix Switcher
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
Matrix Switch devices offer the ability to view one or more sources on one or more displays simultaneously. Multiviewers make it possible to divide multiple video sources onto a single display in individual frames.
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
| Video | |
| Video Input | (8) HDMI |
| Input Connector | (8) Type-A female HDMI |
| HDMI Input Resolution | Up to [email protected] 4:4:4, HDR |
| Video Output | (8) HDMI |
| Output Connector | (8) Type-A female HDMI |
| HDMI Output Resolution | Up to [email protected] 4:4:4, HDR10 and Dolby Vision |
| HDMI Output | Supports up to 5V500mA for AoC cable |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.3 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
| Digital Audio Output | |
| Output | (8) Digital SPDIF audio |
| Output Connector | (8) Toslink connector |
| Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
| Frequency Response | 20Hz – 20KHz,±1dB |
| Max Output Level | ±0.05dBFS |
| THD+N | < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) |
| SNR | > 90dB, 20Hz-20KHz bandwidth |
| Crosstalk Isolation | < -70 dB, 10 kHz sine at 0 dBFS level (or max level before clipping) |
| Noise | -90dB |
| Analog Audio Output | |
| Output | (8) Analog L/R Audio |
| Output Connector | (8) L&R (RCA) |
| Digital SPDIF Audio Format | PCM 2CH |
| Frequency Response | 20 Hz to 20 kHz, ±1dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2 V = 16 dB headroom above -10dBV (316 mV) nominal consumer line level signal |
| THD+N | < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz-20 kHz bandwidth |
| Crosstalk Isolation | < -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping) |
| L-R level deviation | < 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping) |
| Output load capability | 1k ohm and higher (supports 10x paralleled 10k ohm loads) |
| Noise | -80dB |
| Control | |
| Control port | (1) FIRWARE, (1) IR EYE, (1) RS232, (1) TCP/IP, |
| Control Connector | (1) USB-A, (1) 3.5mm jack, (1) 3-pin terminal block, (1) RJ45 |
| General | |
| Transmission Distance | 4K/60Hz/444 5m,4K/60Hz/420 10m,1080P 15m |
| Bandwidth | 18Gbps |
| Operation Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | Input: AC 100V~240V, 50/60Hz; Output : 24V DC 2.71A |
| Power Consumption | 24W |
| Dimension (W*H*D) | 436.4mm*44mm*236mm |
| Net Weight | 3kg |
Video Resolution Down-scaling: The product supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart.
| Input | Output | ||||
| # | Resolution | Refresh | Color Space | Downscale | 1080p Specs |
| 1 | 3840x2160 | 60 | 4:4:4 | Support | [email protected] 4:4:4 |
| 2 | 3840x2160 | 30 | 4:4:4 | Support | [email protected] 4:4:4 |
| 3 | 3840x2160 | 24 | 4:4:4 | Support | [email protected] 4:4:4 |
| 4 | 3840x2160 | 60 | 4:2:0 | Support | [email protected] 4:4:4 |
| 5 | 3840x2160 | 30 | 4:2:0 | Support | [email protected] 4:4:4 |
| 6 | 3840x2160 | 24 | 4:2:0 | Support | [email protected] 4:4:4 |
| 7 | 3840x2160 | 60 | 4:2:2 | Not Support | N/A |
| 8 | 3840x2160 | 30 | 4:2:2 | Not Support | N/A |
| 9 | 3840x2160 | 24 | 4:2:2 | Not Support | N/A |
Resources
Package Contents
① 1xBG-UHD-88M18G
② 6xScrews
③ 1xRS232 cable (3-pin to DB9)
④ 1xIR remote
⑤ 1xUser manual
⑥ 2xMounting ears
⑦ 4xPlastic cushions
⑧ 1xIR receiver
⑨ 1xPower adaptor (DC 24V 2.71A)
② 6xScrews
③ 1xRS232 cable (3-pin to DB9)
④ 1xIR remote
⑤ 1xUser manual
⑥ 2xMounting ears
⑦ 4xPlastic cushions
⑧ 1xIR receiver
⑨ 1xPower adaptor (DC 24V 2.71A)
Diagram
Warranty: 2 years
Buy this 8×8 4K 60Hz 18Gbps HDMI and Audio Matrix Switcher with Downscaling/AOC Support
MSRP $3200.00*
