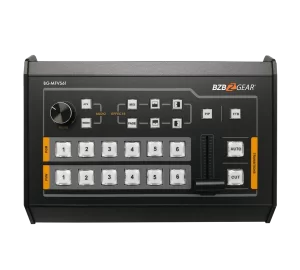

BG-MFVS61
6-input 3G-SDI and HDMI Video Mixer and Production Switcher

6-input 3G-SDI and HDMI Video Mixer and Production Switcher

SKU: BG-MFVS61

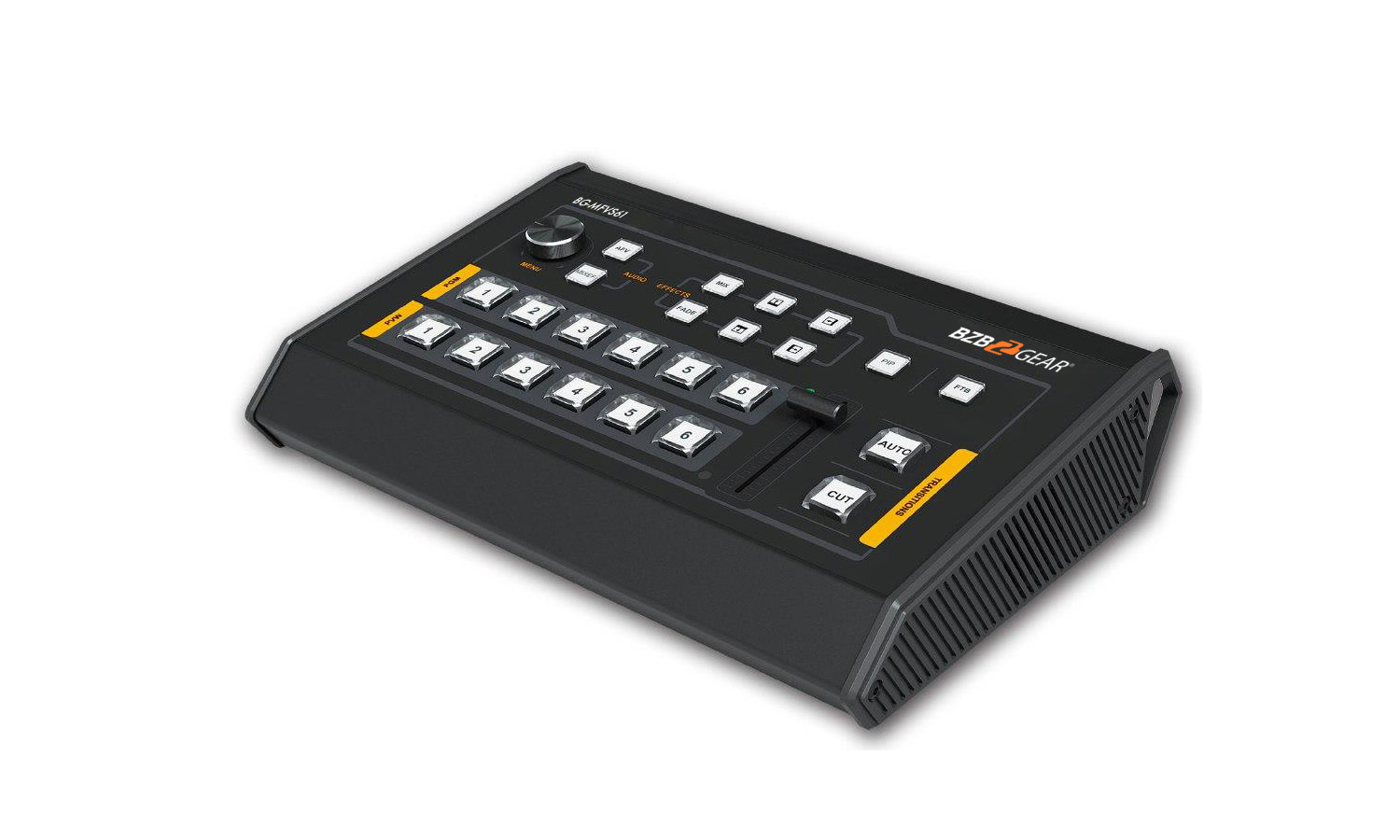

Don’t let the compact size of the BG-MFVS61 portable A/V Mixer fool you, it packs a punch!  The ideal mixer for mobile events or situations in which space is a premium, it’s lightweight and portable yet tough enough to withstand field deployments.  4 SDI and 2 HDMI inputs provide the flexibility to handle nearly any video device you need to connect, while the integrated scaler ensures you have stable 1080P HD output regardless of input source.

The T-Bar allows for smooth transitions from preview to program and the built-in wipe, mix, and fade effects give any production a professional look.  Capture all the action with no cutaways using the PIP feature.  The fade to black key terminates the video output in case of an emergency. Simultaneously monitor all 6 inputs as well as preview and program on one display using the SDI or HDMI Multiview outputs.

The integrated audio mixer allows you to blend the 3.5mm and RCA external inputs with 6 channels of embedded audio, eliminating the need for additional equipment.

This combination of advanced features and intuitive controls allows everyone from volunteers to seasoned pros to consistently deliver a high-quality production.





Integrated Audio Mixer
3.5mm, RCA, HDMI Audio.
PIP Mode
Adjustable size and position.
Compact
Lightweight and portable.

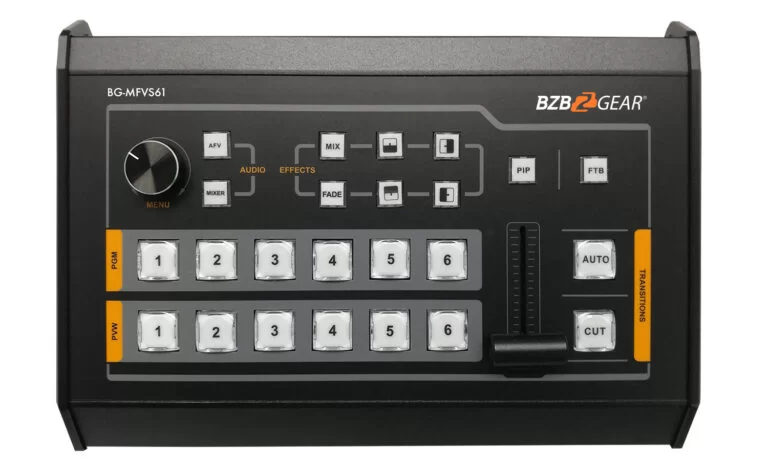

Multiple Transition Options
T-Bar, Auto, and Cut controls for Mix, Wipe, and Fade effects.
Multiview Outputs
1 x SDI, 1 x HDMI.
1080p/60 Support
Crystal clear image with resolutions up to [email protected]


  • Integrated Audio Mixer - 3.5mm, RCA, HDMI Audio
  • PIP Mode - Adjustable size and position
  • 6 Input Channels - 4 x SDI and 2 x HDMI
  • Multiple Outputs - 2 x SDI PGM, 1 x HDMI PGM, 1 x SDI AUX
  • Multiview Outputs - 1 x SDI, 1 x HDMI
  • Multiple Transition Options - T-Bar, Auto, and Cut controls for Mix, Wipe, and Fade effects

Inputs:
Video InputsP4×3G/HD/SD-SDI, 2×HDMI
SDI Input Format

1080p 60/59.94/50/30/29.97/25/24/23.98

1080psF 30/29.97/25/24/23.98

1080i 60/59.94/50

720p 60/59.94/50/30/29.97/25/24/23.98

HDMI Input Format

1080p 60/59.94/50/30/29.97/25/24/23.98/23.976

1080i 50/59.94/60

720p 60/59.94/50/30/29.97/25/24/23.98

576i 50, 576p 50

SDI Video RateAuto detection, SD/HD/3G-SDI
SDI ComplianceSMPTE 259M/ SMPTE 292M/ SMPTE 424M
Color Space and Precision

SDI: YUV 4:2:2, 10-bit;

HDMI: RGB 444 8/10/12bit; YUV 444 8/10/12bit;

YUV 422 8/10/12bit

Outputs:
PGM OutputsPGM Outputs
PGM Output Format1080p 60/50/30/25/24; 1080i 50/60
Multiview Output1×3G-SDI; 1×HDMI Type A
Multiview Output Format1080p 60
Audio:
Audio Input1×3.5mm Stereo audio; 1×RCA(L/R)
Audio Output1×3.5mm Stereo audio; 1×RCA(L/R)
Others:
GPIOTally
LANRJ45
PowerDC 12V, 1.8A
Consumption≤ 22W
Operation Temperature-20℃~60℃
Storage Temperature-30℃~70℃
Operation Humidity20%~70%RH
Dimension330×243.5×67mm
Weight2.2 lbs





① 1x BG-MFVS61
② 1x Power Supply (DC12V 2A)
③ 1x User Manual

Ideal fit for:
- Small Studios
- Large Houses of Worship
- Mobile Video Production


Who is buying it?
- Field Production Crews
- Streamers/Podcasters
- Studio Owners

Interface


HDMI

Crystal clear image with resolutions up to [email protected]

SDI

1080p @ 60 fps for distances up to 300 ft.

LAN

Power over Ethernet, IP Control, and streaming interface.

Audio In/Out

Stereo audio input/output for connecting mics and embedding local audio.

Power

Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Internet) function.
Video


Warranty: 2 years

Buy this 6-input 3G-SDI and HDMI Video Mixer and Production Switcher


MSRP $899.00*

*Pricing is for US only. International pricing will vary.

MSRP $899.00

Description

Don’t let the compact size of the BG-MFVS61 portable A/V Mixer fool you, it packs a punch!  The ideal mixer for mobile events or situations in which space is a premium, it’s lightweight and portable yet tough enough to withstand field deployments.  4 SDI and 2 HDMI inputs provide the flexibility to handle nearly any video device you need to connect, while the integrated scaler ensures you have stable 1080P HD output regardless of input source.

The T-Bar allows for smooth transitions from preview to program and the built-in wipe, mix, and fade effects give any production a professional look.  Capture all the action with no cutaways using the PIP feature.  The fade to black key terminates the video output in case of an emergency. Simultaneously monitor all 6 inputs as well as preview and program on one display using the SDI or HDMI Multiview outputs.

The integrated audio mixer allows you to blend the 3.5mm and RCA external inputs with 6 channels of embedded audio, eliminating the need for additional equipment.

This combination of advanced features and intuitive controls allows everyone from volunteers to seasoned pros to consistently deliver a high-quality production.

Additional information

Weight2 lbs
Dimensions9 × 6 × 2 in
