4X4 HDMI Matrix Switcher Kit (w/3x RX) offering [email protected] (4:4:4) Streaming at 18Gbps with ARC HDBaseT up to 70M
4X4 HDMI Matrix Switcher Kit (w/3x RX) offering [email protected] (4:4:4) Streaming at 18Gbps with ARC HDBaseT up to 70M
4X4 HDMI Matrix Switcher Kit (w/3x RX) offering [email protected] (4:4:4) Streaming at 18Gbps with ARC HDBaseT up to 70M
SKU: BZ-UHD-44M-ARC
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
GUI/WEB UI
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
AUDIO RETURN CHANNEL (ARC)
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.

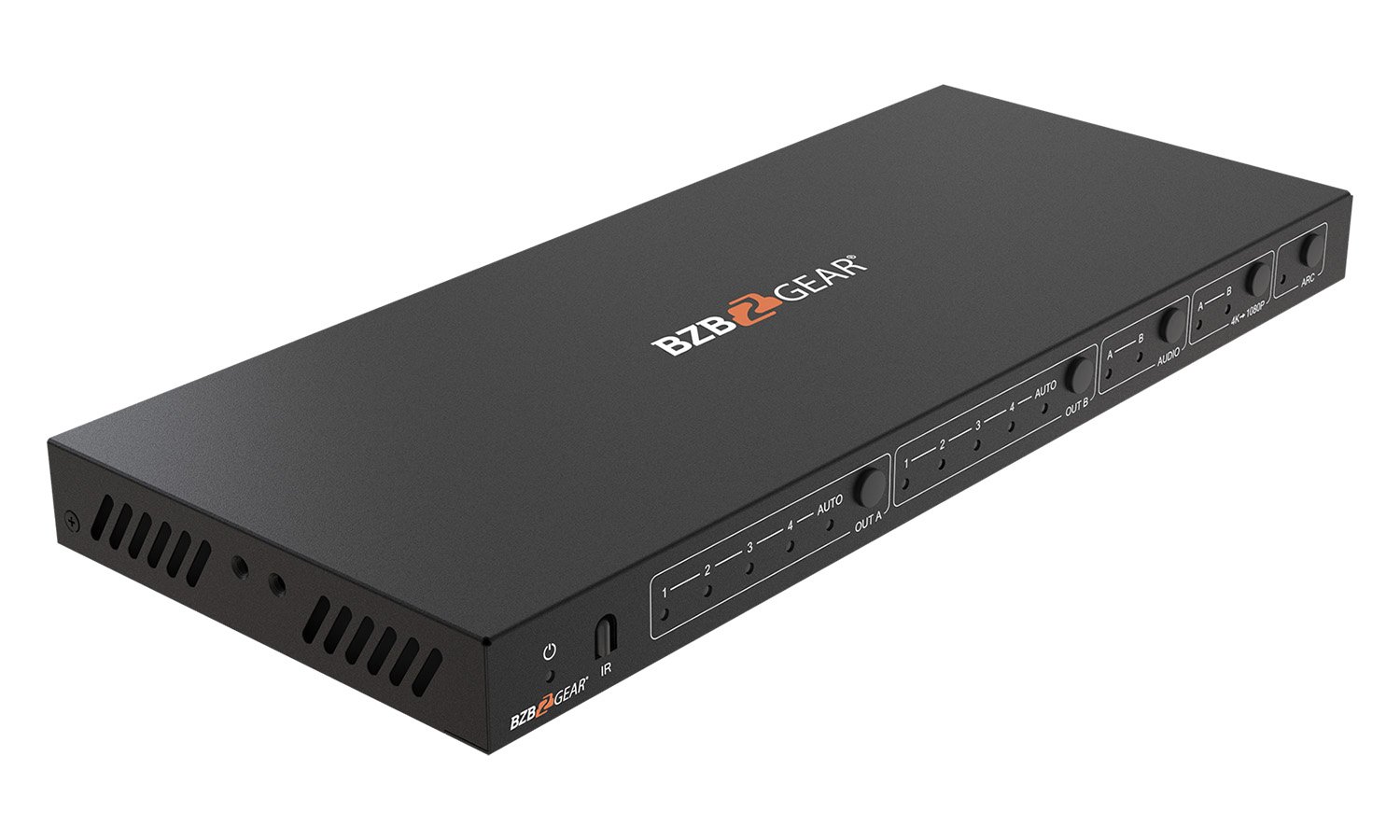

The BZ-UHD-44M-ARC Matrix Switcher offers (4) HDMI Source Inputs, (1) HDMI Output and (3) HDBaseT outputs enabling extension of video signals to the (3) included HDBaseT receivers delivering resolutions up to [email protected] at 18Gbps bandwidth including HDCP 2.2 compliance. In addition is will transmit multiple digital audio signals via the (1) independent HDMI 2.0 output or the HDBaseT receivers from the (4) HDMI sources. Another important feature is the ability to de-embed audio from any HDMI output. The user has an option to select any source through the on-panel button, Web GUI, infrared remote control, LAN or RS-232.
MSRP $1499.00*
*Pricing is for US only. International pricing will vary.Features
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant.
- Up to [email protected] (4:4:4) on all HDMI and HDBaseT ports.
- Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio).
- Digital and analog audio de-embedding from any one of 4 outputs (configurable).
- HDR and smart EDID management supported.
- 24V power over Cat5e/6/7 on all HDBaseT ports.
- Control is via on-panel Button, IR, RS-232, LAN and Web UI.
- Transmission distance over CAT6 cable:
- 70 meters: 1080P @60Hz36bit
- 40 meters: 1080P @[email protected]; [email protected]@24bit; [email protected]/60Hz YUV420), [email protected]/60Hz (YUV444)
Specifications
HDCP 2.2
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
HDCP stands for High-bandwidth Digital Content Protection, a copy prevention technology directed at HDMI connections. Version 2.2 is the latest, designed specifically to prevent illegal copying of 4K Ultra HD content.
EDID (EXTENDED DISPLAY IDENTIFICATION DATA)
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
The EDID job is to read the information off a Display for the purpose of matching the sources which includes manufacturer name and serial number, product type, filter type, timings, size luminance, and pixel mapping. This is vital to ensure the source and display will be compatible for signal transmission and receival. When there is no picture, this may be the issue, referred to as EDID conflicts.
3RD PARTY CONTROL SYSTEM CONNECTIONS
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
Utilize an array of connections for 3rd Party Control system including RS-232, LAN, IR and USB.
GUI/WEB UI
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
Easily connect to devices using a LAN connection, simply type in the default or custom IP address associated with the device. Configure and Customize settings from here for individual environments to achieve desired video settings and outcome.
4K 60 4:4:4 SUPPORT
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
Ultra HD refers to a TV resolution of 3,840 x 2,160 pixels. That's four times as many pixels than in a full HD TV, a total of about 8.3 million pixels. Having so many pixels means a higher pixel density, and you should have a clearer, better defined picture.
18GBPS / HDMI 2.0
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
The maximum bandwidth possible due to the introduction of HDMI 2.0. Prior to HDMI 2.0 was HDMI 1.4 limited to 10.2 Gbps. The new technology permits resolutions of [email protected] (4:4:4) while still capable of transmitting audio and control signals simultaneously.
AUDIO RETURN CHANNEL (ARC)
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
(Audio Return Channel) Connection typically in the form of SPDIF (Fiber Optic) port on a Display responsible for returning audio from the HDMI input in which a Source is connected providing sound back to a Surround Sound receiver to amplifier for audio distribution.
HDBaseT
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
HDBaseT - A global standard for the transmission of ultra-high-definition video & audio, Ethernet, controls, USB and up to 100W of power over a single, long-distance, cable using Category cable such as Cat5/5e/6/6a/7 with RJ45 connectors.
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | Up to 18Gbps |
| Video Resolutions | Up to [email protected]/60Hz(YUV4:4:4), [email protected], [email protected] and 1080P [email protected] |
| Color Depth | 10-bit, 12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| HDMI Audio Formats (Pass-through) | LPCM2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | Human-body Model： ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connections | |
| Transmitter | Input Ports: 4xHDMI Type A (19-pin female) 6xIR IN (3.5mm Stereo Mini-jack) 1xRS-232 (Phoenix jack) 1xLAN (RJ45) Output Ports: 1xHDMI Type A (19-pin female) 3xHDBaseT (RJ45) 1xSPDIF (Optical) 1xL/R (3.5mm Stereo Mini-jack) 5xIR OUT (3.5mm Stereo Mini-jack) |
| Receiver | Input ports: 1xHDBaseT In [RJ45] 1xIR In [3.5mm Stereo Mini-jack] Output ports: 1xHDMI Type A [19-pin female] 1xIR Out [3.5mm Stereo Mini-jack] 1xRS-232 [Phoenix connector] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | TX: 360mm (W) x 160mm (D) x 35mm (H) RX: 115mm (W) x 65mm (D) x 17mm (H) |
| Weight | TX: 1.9kg, RX: 206g |
| Power Supply | DC 24V/2.7A |
| Power Consumption | 35W(max) / 1W（Standby） |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Resources
Package Contents
① 1xHDMI 18Gbps over HDBaseT Matrix
② 3xHDBaseT receivers
③ 2xMounting Ears (Matrix)
④ 6xMounting Ears (Receiver)
⑤ 4xPhoenix terminals (male)
② 3xHDBaseT receivers
③ 2xMounting Ears (Matrix)
④ 6xMounting Ears (Receiver)
⑤ 4xPhoenix terminals (male)
Diagram
Warranty: 2 years
Buy this 4X4 HDMI Matrix Switcher Kit (w/3x RX) offering [email protected] (4:4:4) Streaming at 18Gbps with ARC HDBaseT up to 70M
MSRP $1499.00*
