Model: BG-LVPTZ
OVERVIEW FEATURESSPECSRESOURCESPACKAGE CONTENTS
12X/20X/30X PTZ Zoom Full HD HDMI/SDI Live Streaming Camera with POE
MSRP: $1,199.00 – $1,399.00

Call us for price


12x12x20x20x30x30x
GrayGrayWhiteWhite
Tag:

5

Description

Designed for flexibility, reliability, and performance, BZBGEAR’s LVPTZ series cameras feature powerful lenses in 12X, 20X or 30X optical zoom. A robust selection of connections ensure compatibility with a wide range of equipment. Video with maximum resolution of 1080P 60fps is available simultaneously on HDMI, 3G-SDI and IP Streaming over LAN connection. Variable control options includes RS232, RS485, IP, IR and WebGUI. Audio Embedding is available through the 3.5mm audio input jack.

Support of H.264/H.265 compression codecs and RTMP(S) streaming protocol makes it easy to record or live stream to popular social media platforms like YouTube and Facebook.

Utilizing advanced ISP processing algorithms this camera delivers fast, accurate, and stable auto-focusing. By eliminating the need for a power supply, installation and placement have been simplified with PoE functionality via a Cat5/6/7 cable consolidating both A/V signals and power.

These outstanding features make this camera the best overall choice for environments as diverse as Houses of Worship, Schools, Studios, Event Facilities, and Presentation rooms.

Additional information

Weight 6 lbs
Dimensions 11 × 10 × 9 in
Zoom

12x, 20x, 30x
Color

Gray, White



Overview

Designed for flexibility, reliability, and performance, BZBGEAR’s LVPTZ series cameras feature powerful lenses in 12X, 20X or 30X optical zoom. A robust selection of connections ensure compatibility with a wide range of equipment. Video with maximum resolution of 1080P 60fps is available simultaneously on HDMI, 3G-SDI and IP Streaming over LAN connection. Variable control options includes RS232, RS485, IP, IR and WebGUI. Audio Embedding is available through the 3.5mm audio input jack.

Support of H.264/H.265 compression codecs and RTMP(S) streaming protocol makes it easy to record or live stream to popular social media platforms like YouTube and Facebook.

Utilizing advanced ISP processing algorithms this camera delivers fast, accurate, and stable auto-focusing. By eliminating the need for a power supply, installation and placement have been simplified with PoE functionality via a Cat5/6/7 cable consolidating both A/V signals and power.

These outstanding features make this camera the best overall choice for environments as diverse as Houses of Worship, Schools, Studios, Event Facilities, and Presentation rooms.



Introduction

Superb PTZ Cameras Up to 30x Zoom for Live Streaming over IP, HDMI, or SDI with PoE
Features
Zoom
Available with 12x/20x/30x Optical Zoom Lens
Control
IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
Multiple Video Outputs
Simultaneous HDMI, 3G-SDI, and IP Streaming
Latest Streaming Tech
Supports H.264/265 video compression and RTMP(S) network protocol for Youtube/Facebook Streaming
Superb Auto Focus
Latest auto focusing algorithms resulting in quick, accurate, and stable focus
Power over Ethernet
Delivers power directly over an ethernet cable from your PoE enabled network switch
  • Superb High-definition Image: High-Quality 1/2.8 inch CMOS sensor. Resolution up to 1920x1080 with frame rate up to 60 fps.
  • Wide FOV: Field of view up to 72.5° - enough for the whole room (72.5° for 12X, 54.7° for 20X and 65.1° for 30X lenses)
  • Leading Auto Focus Technology: Auto focus algorithm ensures a smooth adjusting lens, accuracy, and stable auto-focusing
  • Power over Ethernet Functionality: Eliminates the need for a A/C Power Supply
  • Low Noise and High SNR: Low Noise CMOS ensures high SNR of camera video
  • Advanced 2D/3D noise reduction technology: Used to further reduce the noise, while ensuring image sharpness
  • Silent PTZ: An adaptive high-accuracy step-driving motor mechanism provides extremely quiet and smooth operation to designated positions
  • Multi-Format Video Outputs: HDMI, 3G-SDI, LAN
  • 3G-SDI: Extends signal transmissions up to 100m supporting [email protected] Resolutions
  • Control Options: IR Remote, WebGUI, IP and RS232/RS485
  • Low-power Sleep Function: Supports low-power sleep/wake up, the consumption is lower than 500mW in sleep mode
  • Multiple Control Protocols: VISCA, VISCA IP, PELCO-D, PELCO-P protocols
  • Daisy Chain: Supports RS-232/RS485 cascade function for convenient installation
  • 255 Presets Positions: Up to 255 presets (10 presets by remote)
  • Audio Input Interface: Supports embedding of stereo audio through 3.5mm jack
  • Audio/Video Compression: Supports H.264/H.265 video compression with resolutions up to 1920x1080 and up to 60 fps. 2-Channel AAC, MP3 and PCM audio compression supported
  • Network protocols: ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS)


Specifications
SKU BG-LVPTZ-12XHSP BG-LVPTZ-20XHSP BG-LVPTZ-30XHSP
Optical Zoom 12X f＝3.9~46.8mm 20X f＝5.5~110mm 30X f＝4,3~129mm
View Angle 6.3° (tele)
72.5° (wide)		 3.3° (tele)
54.7° (wide)		 2.34° (tele)
65.1° (wide)
AV F1.8 – F2.4 F1.6 – F3.5 F1.6 – F4.7

Camera Parameters
Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels 16:9, 2.07 Megapixel
Video Format HDMI/SDI: 1080P60 / 50 / 30 / 25 / 59.94 /29.97; 1080I60 / 50 / 59.94; 720P60 / 50 / 30 / 25 / 59.94 / 29.97
Digital Zoom 10X
Minimum Illumination 0.5Lux (F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
BLC ON/OFF
WDR OFF/ Dynamic level adjustment
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
Input/Output Interface
Video Interfaces HDMI, 3G-SDI, IP Streaming (LAN)
Image code stream Double streams outputs simultaneously
Video Compression format H.264, H.265
Control Signal Interface RS-232 Ring through RS232 output, RS-485
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio input Interface Double track 3.5mm linear input
Audio Compression Format AAC/MP3/PMC Audio compression
HD IP Interface 100Mb IP port (100BASE-TX); supports VISCA IP control protocol
Network Protocol RTSP/RTMP, ONVIF
Power Interface HEC3800 outlet (DC12V), PoE
PTZ Parameters
Pan Rotation ±170°
Tilt Rotation -30°~+90°
Pan Control Speed 0.1-180°/sec
Tilt Control Speed 0.1-80°/sec
Preset Speed Pan: 60°/sec, Tilt: 30°/sec
Preset Number 255 presets (10 presets by IR remote control)
Other Parameters
Power Supply Adapter AC110V-AC220V to DC12V/2A
Input Voltage DC12V±10%
Input Current 1A (Max)
Consumption 12W (Max)
Store Temperature -10°C to +60°C
Store Humidity 20% - 95%
Working Temperature -10°C to +50°C
Working Humidity 20% - 80%
Dimension 150mm x 150mm x 167.5mm
Weight 1.4KG
Working Environment Indoor
Remote Operation (IP) WebGUI, Remote Upgrade, Reboot and Reset
MORE / LESS SPECS

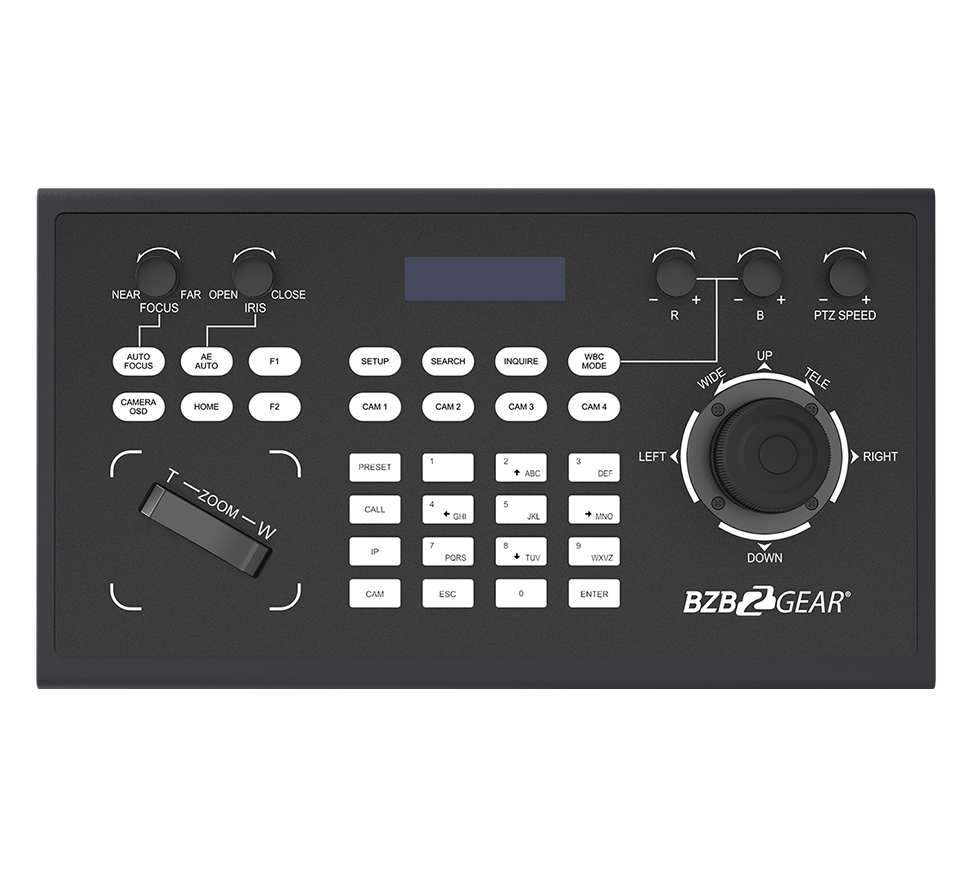

Compatible with:

Ideal fit for:
- Studio Recordings
- Remote Education and healthcare
- House of Worship
- Sport Events
- Concerts


Who is buying it?
- Event Businesses
- Doctors
- Pastors
Product Overview

SKU Optical Zoom Field of View 3G-SDI HDMI USB
BG-LVPTZ-12XHSP
(Gray, White)		 12X 72.5°
BG-LVPTZ-20XHSP
(Gray, White) 		20X 54.7°
BG-LVPTZ-30XHSP
(Gray, White) 		30X 65.1°


Zoom Selection


Not sure which zoom you need? Our handy calculator will make your choice easy! Simply enter the distance (in feet) from the camera to the area you’re trying to record. It will give you the height and width (in feet) of the coverage area for each lens at full zoom and full wide. Find the one that best matches your intended shot and contact one of our friendly sales associates to place your order. Now go kick your feet up - you’ve earned it!

Optical Zoom Field of View Calculator


Distance from Camera Lens (ft)

Calculate

10x 12x 20x 30x
Zoomed In width
height
0
0
0
0
0
0
0
0
Zoomed Out width
height
0
0
0
0
0
0
0
0



Interface



HDMI

Crystal clear image with resolutions up to 1080p @ 60 fps.

3G-SDI

1080p @ 60 fps for distances up to 300 ft.

Control I/O

8 pin Mini-DIN input for RS-232 control and output for cascadable connections. RS-422/485 interface.
Download our IP Control App.

LAN

Power over Ethernet, IP Control, and streaming interface.

Audio In

Stereo audio input for connecting mics and embedding local audio into all three video output interfaces.

Power

Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Ethernet) function.

Support Videos

How to Connect an IP Camera to your Network.
How to Facebook Live Stream with an IP PTZ Camera.
How to Live Stream on YouTube with an IP PTZ Camera.
Mounting Options:

Wall
Tripod
Ceiling

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources
Manual
Download Manual
Diagram
See Diagram



Package Contents
① 1x Camera
② 1x Power supply
③ 1x RS232 control cable
④ 1x IR Remote Control
⑤ 1x User Manual
