4K 18Gbps UHD HDMI HDBaseT Extender Over Category 5e/6/7 Cable with IR/ARC/PoC/RS-232/Ethernet up to 330ft

MSRP: $799.00

MSRP $799

3
Overview

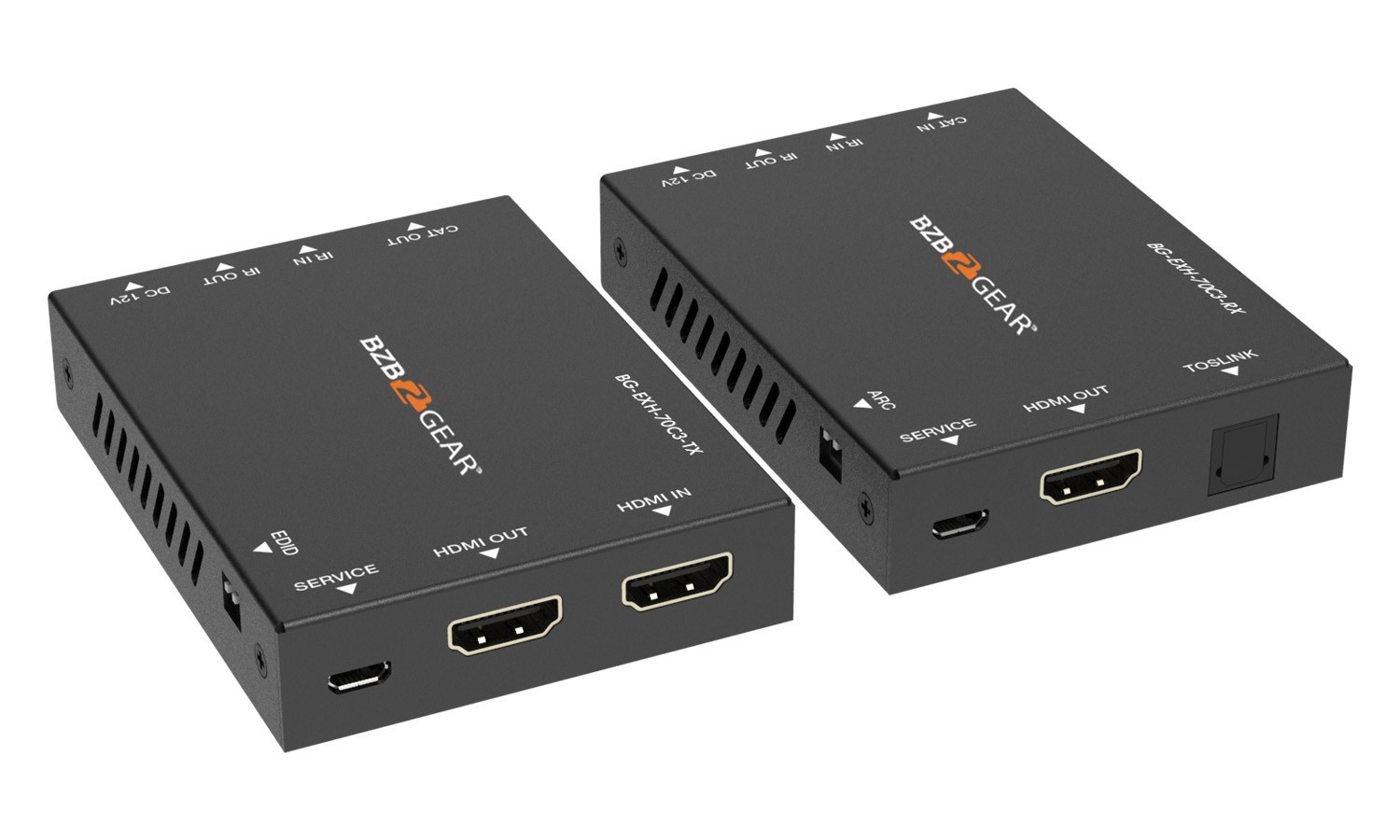

The BG-EXH-100C5 is an 18Gbps HDMI HDBaseT extender that transmits high-definition audio / video, RS-232, bi-directional IR, and internet signals to a distance of up to 328ft (100m) between the transmitter and receiver using a single CAT6/6a cable. Featuring video resolutions up to [email protected] 4:4:4 and HDR, HDR10+, Dolby Vision, and HLG ensure the best image possible.

The integrated bi-directional IR pass-through allows for source and display control from either end of the system. The BG-EXH-100C5 transmitter and receiver are also capable of power over cable (PoC) meaning only one unit in the pair needs a power supply. Each unit also has a LAN port to further eliminate the need for extra cable runs. The system supports ARC and various audio formats such as Dolby Digital, Dolby TrueHD, LPCM, and many more as well as local audio extraction. This set of robust features in such a compact design makes for easy, flexible, and high quality installation options.



Features
Audio Embedding
Embed audio through S/PDIF optical
Bi-Directional IR
Control devices via IR either from the receiver or transmitter
Compliant
HDCP 2.2 supported to ensure content protection
Long Range
Utilizing HDBaseT technology to send uncompressed 4K signal up to 328ft (100m)
Stunning Image Quality
Crystal clear images at 4K 60Hz 4:4:4
Power Over Cable
Power only needs to be supplied to the either transmitter or receiver allowing for easier installation
  • 3.5mm mini stereo audio output on receiver
  • Rich Colors with HDR, HDR10+, Dolby Vision, HLG
  • ARC and audio de-embedding through S/PDIF optical port on receiver


Specifications
Technical
HDCP Compliance HDCP 2.2 / 1.x
Video Bandwidth 18Gbps
Video Resolution 4K 50/60Hz 4:4:4
4K 50/60Hz 4:2:2
4K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All PC resolutions including 1920 x 1200
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4 )
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD
Master, DTS HD-HRA, DTS-X
L/R Audio Formats PCM 2.0
SPDIF Audio Formats LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS
ESD Protection Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter Input: 1x HDMI Type A [19-pin female]
Output:
1x HDBT OUT [RJ45, 8-pin female]
1x SPDIF OUT [S/PDIF]
1×L/R OUT [3.5mm Stereo Mini-jack]
1×LAN [RJ45]
Control:
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Receiver Input: 1x HDBT IN [RJ45, 8-pin female] / 1x SPDIF IN [S/PDIF]
Output: 1x HDMI Type A [19-pin female] / 1x LAN [RJ45]
Control:
1x IR IN [3.5mm Stereo Mini-jack]
1x IR OUT [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
1x SERVICE [Mini-USB, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Transmitter / Receiver: 163mm [W] x 90mm [D] x 16mm [H]
Weight Transmitter: 170g, Receiver: 165g
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption 13 W
Operating Temperature 32 - 104°F / 0 - 40°C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)
Resolution Distance
4K2K 296ft / 90M
1080P 328ft / 100M
Resolution/Cable Length 4K60 - Feet / Meters 4K30 - Feet / Meters 1080P60 - Feet / Meters
HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
Note: The use of “Premium High-Speed HDMI” cable is highly recommended.
MORE / LESS SPECS

Interface
1.
Power LED: The LED is illuminated red when the transmitter is powered on.
2.
ARC LED: Green LED is on when the ARC function is turned on.
3.
SPDIF LED: Green LED is on when SPDIF OUT port outputs the audio signal returned from SPDIF IN on receiver.
4.
SWITCH: Press the button to switch the output audio signal source for SPDIF OUT and L/R OUT port.
5.
SERVICE port: Micro USB firmware update port.
6.
DC 24V: DC 24V input for 24V 1A power adapter.
7.
Connection Signal Indicator (on the left side of the HDBT OUT port): Solid: Transmitter and Receiver are in good connection status.
Flash: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
8.
HDBT OUT: RJ45 connector for connecting the HDBT IN port of receiver with CAT 6/6a cable.
9.
Data Signal Indicator (on the right side of the HDBT OUT port): Solid: HDMI signal with HDCP.
Flash: HDMI signal without HDCP.
Dark: No HDMI signal.
10.
HDMI IN: HDMI source input.
11.
IR IN: IR input port for receiving the signal of IR remote.
12.
IR OUT: IR output port for control of source device. This IR output signal is from the IR IN port of the receiver.
13.
L/R OUT: 3.5mm stereo connector for analog audio output.
14.
SPDIF OUT: SPDIF connector for optical audio output.
15.
RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or receiver to transmitter.
16.
LAN: RJ45 connector for connecting Hub or router.
17.
Power LED: Red LED is on when the receiver is working. The LED is off when the receiver is on standby.
18.
ARC LED: Green LED is on when the ARC function is turned on.
19.
PIDIF LED: Green LED is on when SPDIF OUT port outputs the audio signal returned from SPDIF IN on receiver.
20.
SWITCH: Press the button to switch the output audio signal source for SPDIF OUT and L/R OUT port.
21.
SERVICE port: Firmware update port.
22.
DC 24V: DC 24V input for 24V 1A power adapter.
23.
Connection Signal Indicator (on the left side of the HDBT IN port): Solid: Transmitter and Receiver are in good connection status.
Flash: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
24.
HDBT IN: RJ45 connector for connecting the HDBT OUT port of transmitter with CAT 6/6a cable.
25.
Data Signal Indicator (on the right side of the HDBT IN port): Solid: HDMI signal with HDCP.
Flash: HDMI signal without HDCP.
Dark: No HDMI signal.
26.
HDMI OUT: HDMI output for display.
27.
IR IN: IR input port for receiving the signal of IR remote.
28.
IR OUT: IR output port for control of display device. This IR output signal is from the IR IN port of the transmitter.
29.
SPDIF IN: SPDIF connector for optical audio input.
30.
RS-232: 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or receiver to transmitter.
31.
LAN: Connect to Internet enabled devices such as a PC or laptop.
Videos


High Quality HDMI HDBaseT Extender Kits for Long Range - BZBGEAR

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Commitment to excellent service and delivering dependable products with efficiency is BZB Gear main staple and foundation.
Our main goal is to ensure your 100% complete satisfaction with our service and products!
If for any reasons you are dissatisfied with your purchase, you can return it back to BZB Gear within 60 days of purchase date for a full refund.


Resources
Manual
Diagram
Product Brochure



Package Contents
① 1 x 18Gbps HDMI over HDBaseT Transmitter
② 1 x 18Gbps HDMI over HDBaseT Receiver
③ 1 x IR Blaster cable (1.5m)
④ 1 x 20~60KHz IR Receiver cable (1.5m)
⑤ 4 x Mounting Ears
⑥ 2 x 3-pin Phoenix connector
⑦ 1 x 24V/1A Locking Power adapter
⑧ 8 x Machine screw - KM3*4mm
⑨ 1 x User Manual
